EA Series Addressable Detector
Installation Sheet
1
3
EN: Installation Sheet
Description
EA Series Addressable Detector models are shown in Table 1.
Table 1: Models
Number
Description
EA20E-3
Addressable Thermal Detector
EA30E-2
Addressable Optical Smoke Detector
EA32E-2
Combination Smoke and Heat Detector
© 2014 UTC Fire & Security. All rights reserved.
2
4
Figures

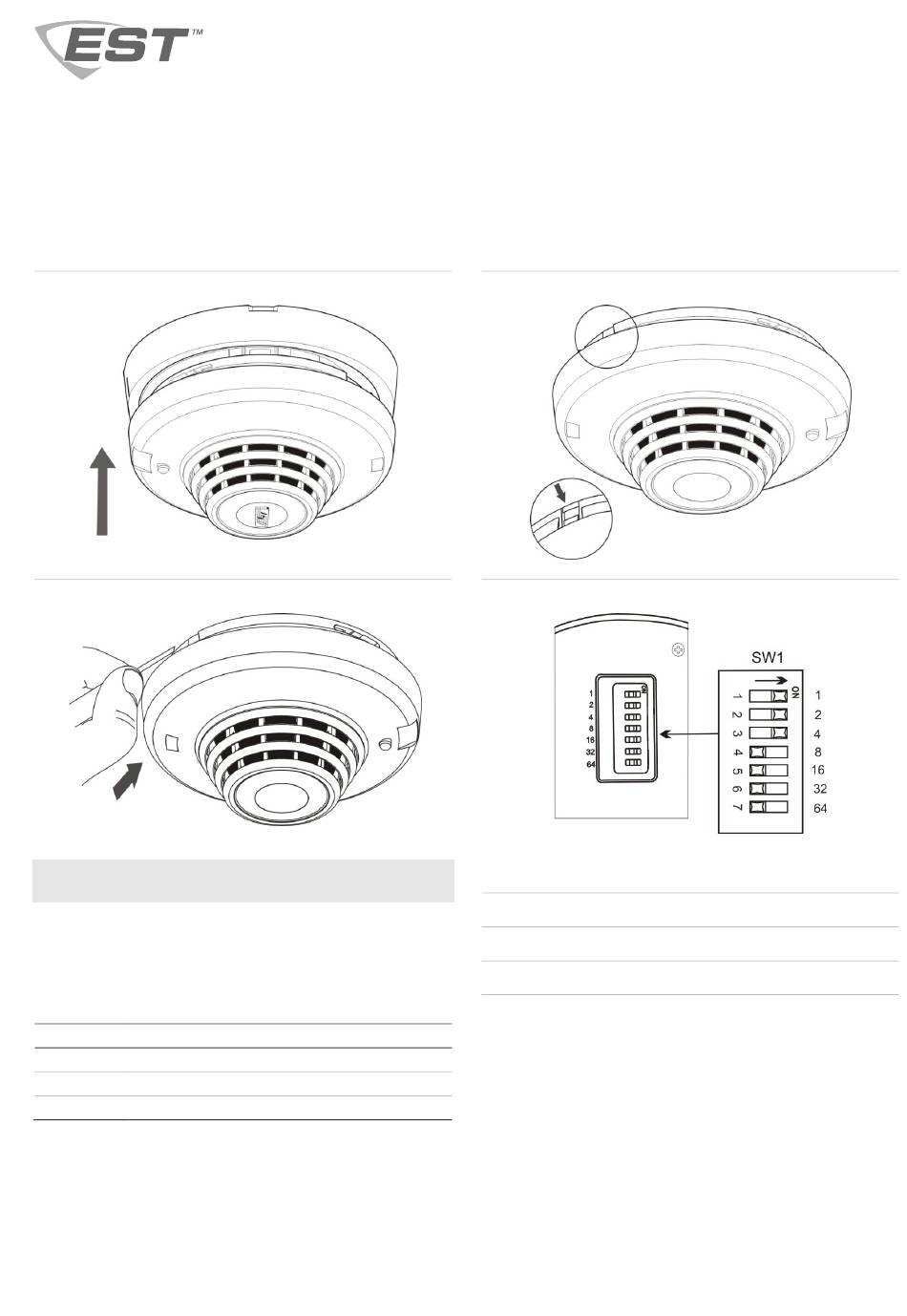

Figure 1: Inserting the detector
Figure 2: Position of the locking tab
Figure 3: Removing a locked detector
Figure 4: Setting the address
Installation
Note:
For general guidelines on system planning, design,
installation, commissioning, use and maintenance, refer to the
EN 54-14 standard and local regulations.
To install a detector:
Insert the detector head into the mounting base and rotate it
clockwise until it clicks into place (Figure 1).
1 / 4
P/N 501-146000-0-04 • REV 04 • ISS 05MAR14
