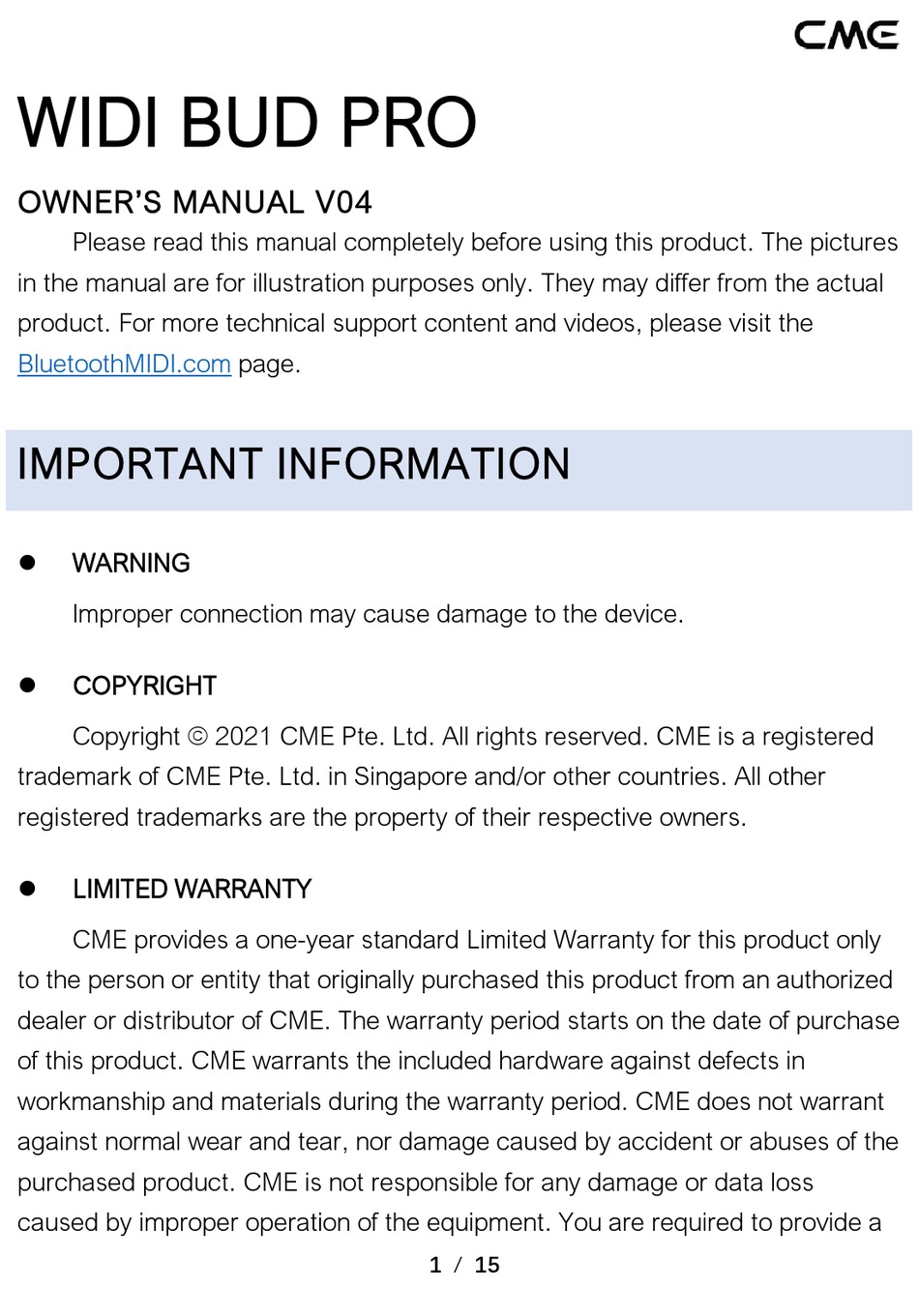

WIDI BUD PRO
OWNER'S MANUAL V04
Please read this manual completely before using this product. The pictures
in the manual are for illustration purposes only. They may differ from the actual
product. For more technical support content and videos, please visit the
BluetoothMIDI.com
IMPORTANT INFORMATION
WARNING
⚫
Improper connection may cause damage to the device.
COPYRIGHT
⚫
Copyright © 2021 CME Pte. Ltd. All rights reserved. CME is a registered
trademark of CME Pte. Ltd. in Singapore and/or other countries. All other
registered trademarks are the property of their respective owners.
LIMITED WARRANTY
⚫
CME provides a one-year standard Limited Warranty for this product only
to the person or entity that originally purchased this product from an authorized
dealer or distributor of CME. The warranty period starts on the date of purchase
of this product. CME warrants the included hardware against defects in
workmanship and materials during the warranty period. CME does not warrant
against normal wear and tear, nor damage caused by accident or abuses of the
purchased product. CME is not responsible for any damage or data loss
caused by improper operation of the equipment. You are required to provide a
page.
1 / 15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CME WIDI BUD PRO
Summary of Contents for CME WIDI BUD PRO
- Page 1 CME provides a one-year standard Limited Warranty for this product only to the person or entity that originally purchased this product from an authorized dealer or distributor of CME. The warranty period starts on the date of purchase of this product. CME warrants the included hardware against defects in workmanship and materials during the warranty period.
-
Page 2: Safety Information

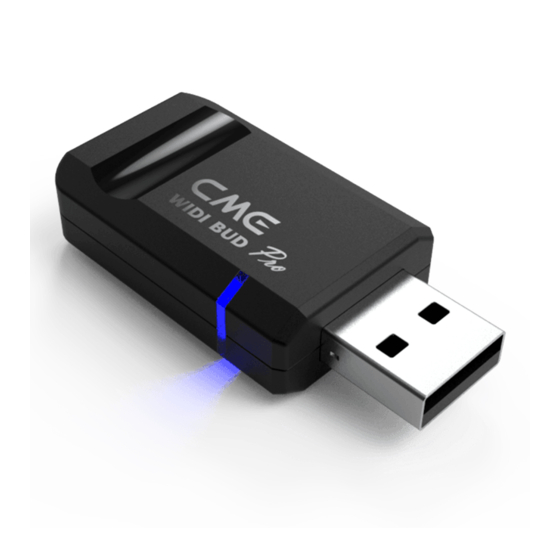

To obtain service, call or visit the authorized dealer or distributor of CME where you purchased this product. CME will fulfill the warranty obligations according to local consumer laws. - Page 3 USB socket or a MIDI device with a USB Host socket, and convert the USB MIDI data of these devices into Bluetooth MIDI data (and vice versa). WIDI Bud Pro can get power through the USB bus power. 3 / 15...
- Page 4 When the WIDI Bud Pro is not plugged, press and hold the button and then plug the WIDI Bud Pro and power on, after the green LED light flashes 3 times please release it, then the interface will be manually switched to the factory default.
- Page 5 WIDI Bud Pro as the USB MIDI input and output device, then you can send and receive Bluetooth MIDI messages through it. Note 1: WIDI Bud Pro does not have a power switch, it can start to work just by connecting the power.
- Page 6 MIDI data sending, the LED light will flash dynamically). Connect WIDI Bud Pro with Bluetooth MIDI device ⚫ Turn on both the MIDI devices plugged with WIDI Bud Pro as well as the Bluetooth MIDI devices. WIDI Bud Pro will automatically pair with the Bluetooth MIDI device,...
- Page 7 [midimittr]. Note: If the App you are using already has a Bluetooth MIDI connection function, please directly connect to the WIDI Bud Pro on the MIDI setting page in the App. Turn on the power of the MIDI device with the WIDI Bud Pro plugged in, and confirm that the blue LED flashes slowly.
- Page 8 Open the music app that can accept external MIDI input, and select WIDI Bud Pro as the MIDI input device on the settings page, you can start using it. Connect WIDI Bud Pro with Windows 10 via Bluetooth ⚫ First, the music software must integrate Microsoft's latest UWP API to use the Bluetooth class compliant MIDI driver that comes with Windows 10.
- Page 9 Just select the desired WIDI as the MIDI input and output device. In addition, CME WIDI Bud Pro and WIDI Uhost are both professional hardware solution for Windows users, that meets the requirements of...
- Page 10 Turn on the Bluetooth function of the Android device. Open the MIDI BLE Connect App, click [Bluetooth Scan], find the WIDI Bud Pro that appears in the list, and click [WIDI Bud Pro], it will show that the connection is created successfully. At the same time, the Android system will send a Bluetooth pairing request notification.
- Page 11 Note 1: After the BLE role is set as “Force Peripheral”, the setting will be automatically saved in the WIDI Bud Pro. Note 2: Click the WIDI Bud Pro device name to be renamed. The new name will be effective once restarted.
- Page 12 After all WIDIs are set to the “Force Peripheral” role, they can be powered on at the same time. Click the "Group" menu, and then click "Create New Group" (or [+] icon on Android). Enter the name of the group. Drag and drop the WIDI products to the central and peripheral positions.
-
Page 13: Specification
messages you play will directly return to the internal sound module via WIDI USB. The same messages are also sent to the external BLE MIDI device via WIDI Bluetooth. Please use WIDI App to set the USB soft thru switch. SPECIFICATION Technology USB 2.0, Bluetooth 5, MIDI over Bluetooth Low Energy-... - Page 14 Specifications are subject to change without notice. The LED of WIDI Bud Pro is not lit. ⚫ Is the WIDI Bud Pro connected to the computer or MIDI device with USB Host port correctly? Please check whether the computer's USB port is powered or the connected USB Host device is powered on? WIDI Bud Pro cannot receive or send MIDI messages.
- Page 15 If the BLE MIDI device complies with the standard BLE MIDI specification, it can be connected automatically. If the WIDI Bud Pro cannot automatically connect, it may be a compatibility issue. Please contact CME for technical support through BluetoothMIDI.com. The wireless connection distance is very short, or the latency is large, or ⚫...
