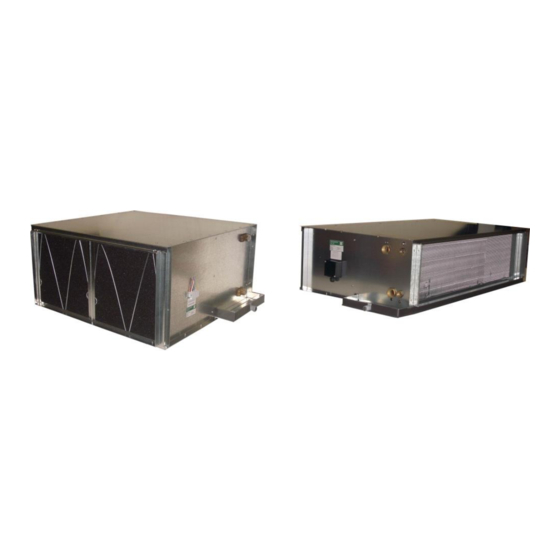

2. INTRODUCTION
By means of this document, is intended to synthesize all the necessary information to install, use
and maintain in perfect conditions the Fan-coils of the FCH and V series, manufactured by STULZ
TECNIVEL, S.L.
The fancoils are equipment that are part of an installation and is forbidden the commissioning of the
unit until the whole installation fulfills with all applicable regulations and directives.
3. INSTALLATION AND ASSEMBLY INSTRUCTIONS
3.1 ANCHORAGE

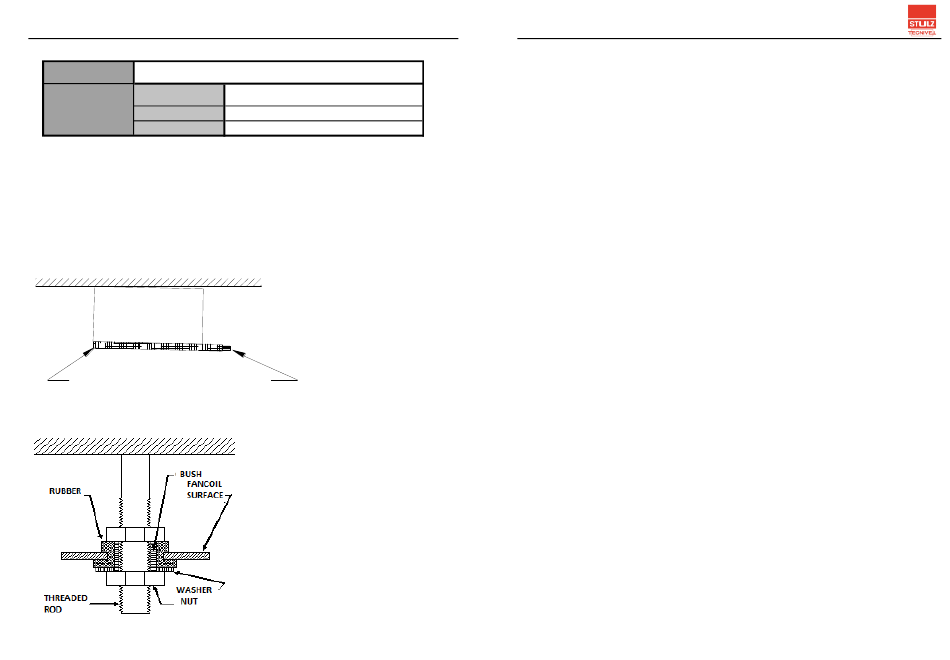

There are four anchoring holes on the ceiling of the fan-coil, which are designed to allow the device
to hang from the ceiling. In order to level the device for proper operation, use threaded rod M-8.
Fig. 1
TRAY
Fig. 2
St. Carabaña 25C - 28295 - Alcorcón
Madrid - Spain
+34 91 517 83 20
info@stulztecnivel.com
It should be noted that it is
advisable to foresee a slight
drop towards the side of the
condensate drain
facilitates its exit, avoiding
possible overflows
condensate collection
DRAIN
(See Fig. 1)
In order to avoid vibrations transmission is
necessary that the anchorage points will be
isolated as indicated in Fig 2.
3.2 CONNECTION TO THE HIDRAULIC SUPPLY
Connect the unit to the cold and / or hot water supply keeping the diameter of the connections.
Support the connection fitting with a key to avoid deforming the collector. Avoid installing
reductions, this practice would cause an excessive pressure drop in the water, which would
negatively influence the performance of the device.
The entry of the water (cold or hot) will always be made by the lowest manifold. Failure to follow this
practice implies a defective operation of the unit, and hinders the purging of the installation.
3.3 CONNECTION TO THE ELECTRIC SUPPLY
It is necessary to connect the terminal strip, located on one side of the fan-coil, with the voltage
indicated on the rating plate plus grounding wire.
Remove the cover from the terminal block (pressure attached) and connect to its corresponding
terminals.
As indicated in the connection label that is located close to the unit electrical connections.
Tighten the screws of the terminals, pull lightly the cables that have been connected, to ensure that
they are firmly fastened and replace the cover of the power strip.
4. INSTRUCTIONS FOR THE COMMISSIONING
Put pressure on the fan-coil and make sure there are no leaks in any of the hydraulic connections.
Purge the battery using the bleeder installed for this purpose in the water outlet manifold (highest
connection).
Make sure that the voltage on the electrical supply matches that indicated on the rating plate.
Check that the filters are correctly positioned and that the mesh part face is oriented inside the fan-
coil.
It is possible that in the installation there are air pockets that will accumulate in the water outlet
that
manifold, preventing proper operation of the unit. It is recommended to repeat the purge operation
after ½ to 1 h of fan-coil operation.
of the
tray.
5. MAINTENANCE INSTRUCTIONS
Every three months the filter / s that incorporate the fan-coils will be cleaned, and every three years
it will be replaced by a new one.
The cleaning will be done by immersing the filter in soapy water, keeping it there for at least two
hours; rinse and let drain and aerate until drops of water are released
6. STANDARD OPERATING CONDITIONS
Operating situations in which neither temperature nor humidity are extreme are considered normal,
as well as environments free of agents that attack materials, such as in saline, excessively dusty
environments, etc.
The water entering the coil will be at a temperature between 4 and 90 ° C and it is understood that
the coil is designed for the circulation of water inside, so no other liquid should be used without prior
authorization from the manufacturer.
Working pressures will be less than 8 Kg/cm
