Summary of Contents for Esse Engineering ESSE 1

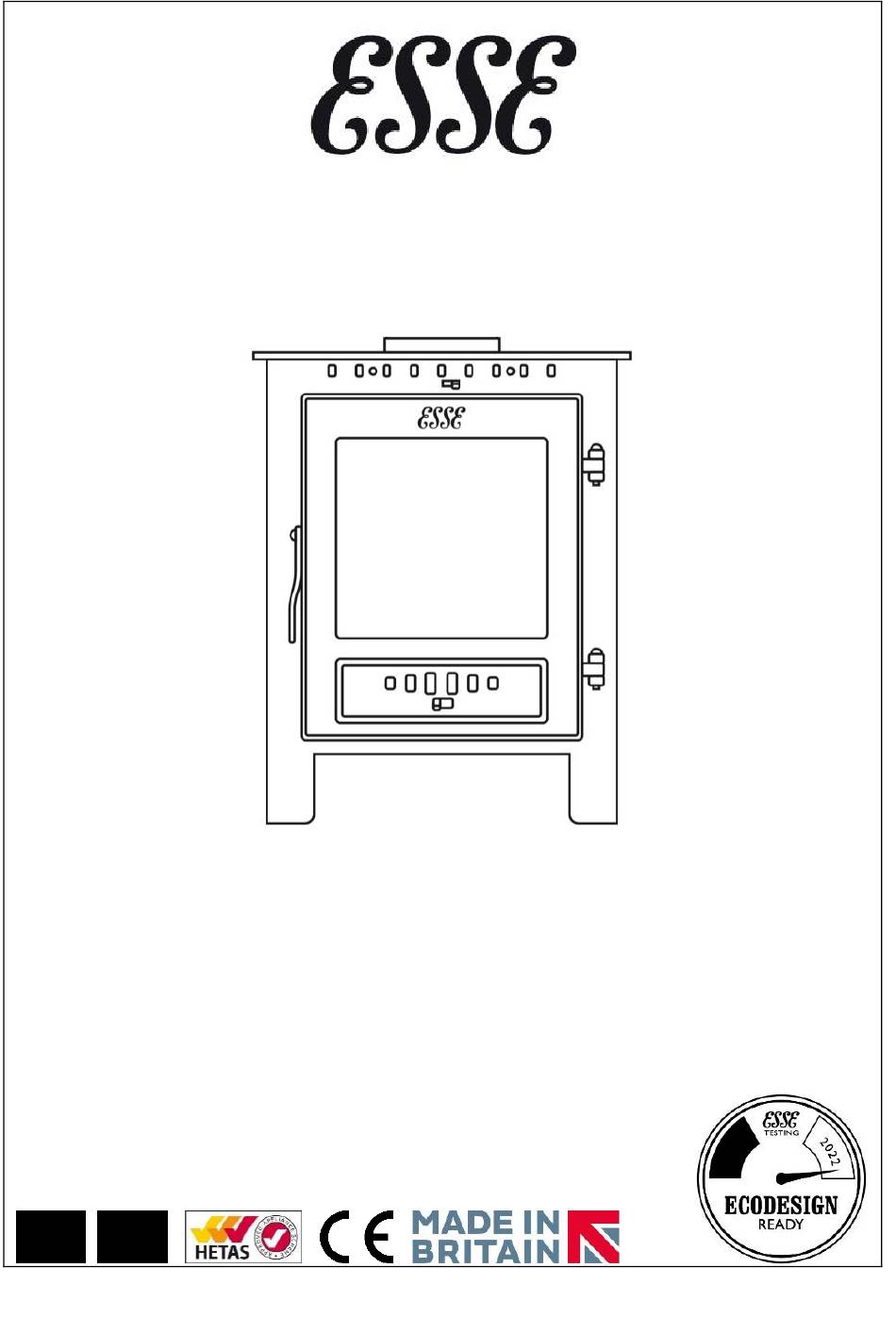

- Page 1 ESSE 1 Smoke Exempt Wood Burning Stove INSTALLATION & USER INSTRUCTIONS (TO BE LEFT W ITH THE CUSTOMER) GB ...
- Page 2 CONTENTS General Safety Notes Page 2 Commissioning Checklist Page 13 Installation instructions Page 3 Operating Instructions Page 15 Chimney & Flue Page 4 Wood Burning Page 16 ...
- Page 3 CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke ...
- Page 4 It is essential that the fire has adequate air supply for combustion and ventilation. Apertures provided for this purpose shall not be restricted. CO Alarms Building regulations require that whenever a new or replacement fixed solid fuel or wood/biomass ...
- Page 5 Fig.1 Ideal Flue Connections (Flue box available from www.esse.com) Fig.2 Chimney and Flue Performance Page 5 ONE-‐ S E-‐ I 07-‐190619 ...
- Page 6 FLUE DRAUGHT The chimney can be checked, before the stove is installed, with a smoke match. If the chimney doesn't p ull t he smoke i t m ay s uggest t he c himney n eeds a ttention ( see t he F lue Diagnosis Table, below).
- Page 7 FLUE STABILISER A flue stabiliser can be fitted to reduce the draught through the stove if the flue draught is too high. The flue stabiliser should be: Fitted in the same room as the stove. The same size as the flue pipe.
- Page 8 Fig.3b ESSE 1 with Log Box Dimensions Page 8 ONE-‐ S E-‐ I 07-‐190619 ...
- Page 9 INSTALLING THE STOVE POSITIONING ...
- Page 10 Fig. 4 Arranging the flue for top or rear outlet. Fig. 5 Stove features When positioning the stove the two rear legs are fitted with adjustment plates to accommodate for hearth variations. ...
- Page 11 INSTALLING THE ADDITIONAL REAR HEAT SHEILD The additional heat shield kit (Part No: FM5-‐048) should be fitted to the stove prior to connecting the flue pipe. Remove the 4 screws labelled (A). Screw in the threaded spacer bars, labelled (B) ...
- Page 12 Fit the additional heat shield labelled (C) and fasten with the nuts provided. Remember to refit the Stove data label on the rear spacer labelled (D). ...
- Page 13 COMMISSIONING CHECKLIST To assist with any potential guarantee claim please complete the following information:-‐ To be completed by the installer. Dealer the appliance was purchased from: Name: Address: Telephone No: ...
- Page 14 Page 14 ONE-‐ S E-‐ I 07-‐190619 ...
- Page 15 OPERATING INSTRUCTIONS Over firing will damage your stove. To maintain peak efficiency, your stove should burn approximately 1.0kg of well-‐seasoned wood per hour. Your stove should not be used as an incinerator and only recommended fuels shall be used.
- Page 16 RE-‐FUELLING ON TO A LOW FIRE BED When adding new fuel to the stove, if there is insufficient burning fuel remaining in the fire bed to light the additional fuel, you may experience excessive smoking, as the new material ...
- Page 17 Fig.7-‐Logs laid in fire box. Place a firelighter in the space and surround with a small amount of kindling. Lay a third log over the top of the space perpendicular to the other logs. Fig.8-‐Final log in position. ...
- Page 18 Once the fire has been lit, leave the door partially open to allow additional airflow until the fire has become established. Once the fire is established, the door should be fully closed, ...
- Page 19 CORRECT RUNNING TEMPERATURES FOR BURNING To g et t he b est r esults f rom y our s tove i t i s r ecommended t hat a w ood s tove t hermometer (available from your stove dealer) be fitted to the flue pipe above the stove, at eye level ...
- Page 20 SOLID MINERAL FUEL BURNING The Esse One-‐SE comes set up as a Wood Burning only stove as standard. It can be converted to burn solid mineral fuel with the purchase of the solid mineral fuel burning ...
- Page 21 Insert solid mineral fuel base brick (FM5-‐ 6 047). Insert the solid mineral fuel burning grate 7 (Part No: FIREM-‐001). Insert the remaining solid mineral fuel bottom side brick on the Right hand side of ...
- Page 22 LIGHTING AND CONTROLLING THE FIRE Before lighting the fire for t he first t ime, ensure that t he baffle, the r iddling g rate and t he side a nd b ack b ricks a re i n p osition. B urning w ithout e ither w ill r esult i n t he s tove c astings overheating and being damaged.
- Page 23 The above text should be used as a guide only. The ideal operation of your stove depends on a number of factors, which vary with each installation, and so gaining experience operating your stove is the only way to learn its best operation.
- Page 24 Page 24 ONE-‐ S E-‐ I 07-‐190619 ...
- Page 25 MAINTENANCE CLEANING THE STOVE The stove should only be cleaned when it is cold. The exterior can be dusted with a firm brush. Do not use a cloth, as this will drag on the paint finish leaving lint on the surface. From ...
- Page 26 GUARANTEE CONDITIONS OF GUARANTEE Your E SSE is guaranteed against defects arising f rom faulty m anufacture f or 2 y ears w hen supplied by an ESSE Specialist. Upon registration of the warranty, ESSE will extend the guarantee period to 5 years from ...
- Page 27 SPARE PARTS Only genuine ESSE spare parts are recommended. Parts that may need occasional replacement are: Fig. 9 Wood Burning Parts ...
- Page 28 Fig. 10 Solid Fuel Burning Parts Page 28 ONE-‐ S E-‐ I 07-‐190619 ...
- Page 29 Fig. 6 Additional Parts PART No: DESCRIPTION IMAGE FM5-‐014 DOOR GLASS -‐-‐ FM5-‐048 REAR HEATSHEILD KIT Page 29 ONE-‐ S E-‐ I 07-‐190619 ...
- Page 30 Page 30 ONE-‐ S E-‐ I 07-‐190619 ...
- Page 31 Page 31 ONE-‐ S E-‐ I 07-‐190619 ...
- Page 32 ESSE Engineering Limited. Ouzledale Foundry, Long Ing, Barnoldswick, Lancashire, BB18 6BJ Tel: 01282 813 235, Fax: 01282 816 876 Web: www.esse.com ...
