NATURE´S HEAD
Composting Toilet Art-Nr.4603-001
NATURE'S HEAD
Self-Contained Composting Toilet
Installation Manual and User's Guide
Saving Our Water for Tomorrow
toplicht
0049 (0)40-88 90 100
www.toplicht.de
Notkestraße 97 · 22607 Hamburg
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NATURE'S HEAD 4603-001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toplicht NATURE'S HEAD 4603-001

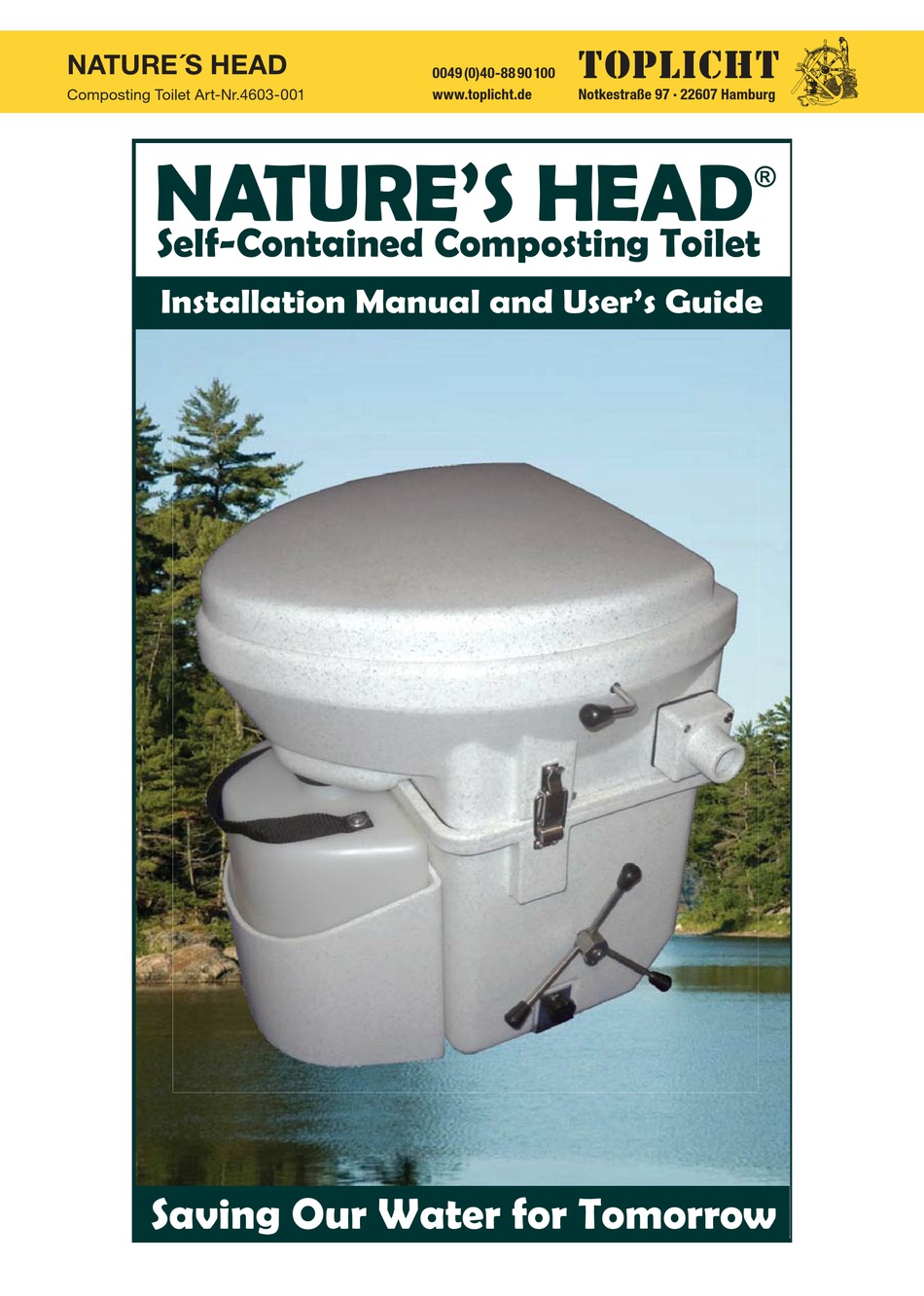

  • Page 1 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg NATURE’S HEAD ® Self-Contained Composting Toilet Installation Manual and User’s Guide Saving Our Water for Tomorrow...
  • Page 2: What's In The Box

    NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de Nature’s Head ® Composting Toilet Congratulations on your acquisition of a NATURE’S HEAD ® composting toilet! Although the concept of a composting head (toilet) is not a new one, the unit which you have purchased is the freshest of the new generation of this kind of product.
  • Page 3: Installation

    NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg INSTALLATION ITEMS YOU MAY NEED TO COMPLETE YOUR INSTALLATION Your NATURE’S HEAD® composting toilet comes with most of the items necessary for completion of your installation. The outside vent is not included because each application is different and many will require a different vent.
  • Page 4 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de INSTALLATION, continued Hose Length Some installations may require increased hose lengths which may be purchased on a per foot basis. PVC pipe, available at most home improvement or hardware stores, may also be substituted for longer hose sections.
  • Page 5: Installation Dimensions

    NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg INSTALLATION: Dimensions 1 ” 20” 12 ½” 2 ” 9 ” 6” 13” 19” Note: Dimensions can vary up to 4% due to the rotational moulding of polyethylene plastic.
  • Page 6 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de INSTALLATION: Dimensions Standard Handle: 21” Spider Handle 19 ” Spider Handle 12 ½” 2” 5” Standard Handle 13” Page 6 Page 5 © 2017 Nature’s Head. Inc.
  • Page 7: Installation Location

    NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg INSTALLATION: Location When selecting the location for your new Nature’s Head®, be certain to allow enough space behind and on both sides for the toilet to function and be serviced.
  • Page 8: Installation: Mounting

    NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de INSTALLATION: Mounting It is necessary to secure your toilet to ����������������������������������� The normal mounting is to position the L-brackets under the base in the recesses in the toilet, as shown on the left.
  • Page 9: Installation: Venting

    NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg INSTALLATION: Venting The unit must be vented to the outside of your cabin whether it is a boat, RV, truck, or vacation property. This helps keep your bathroom �������������������������������������������������������������������������...
  • Page 10 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de INSTALLATION: Venting ��������������� Attaching the Handle The toilet is shipped with the agitator handle unattached and must be installed before use. The standard handle is attached with a collar and hairpin clip, while the spider handle attaches with an allen set screw and locknut.
  • Page 11 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg INSTALLATION: Venting, continued Attaching a mesh fabric or screen (not provided) over the opening is necessary to prevent the entry of insects into the system. Any mesh fabric such as window screen or nylon netting will provide an adequate insect barrier.
  • Page 12 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de INSTALLATION: Venting Page 12 Page 11 © 2017 Nature’s Head. Inc.
  • Page 13 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg INSTALLATION: POWER CONNECTION As with all electrical connections, be sure your head is on a fused circuit. The fuse should be no less than 2 amps and no more than 5 amps (12V).
  • Page 14 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de USING YOUR NATURE’S HEAD The waterless, urine separating design contributes the extraordinary holding capacity. The composting section holds approximately 60 to 80 uses. The time frame to empty the solids bin varies with number of people and the time period.
  • Page 15 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg USAGE, continued ��������������������������������������������������������������������� unpleasant odor and prevent proper compost action. Seated usage is recommended. While seated, the unit may be used with the trap door in the open or closed position. Whether male or female, the user’s liquids and solids will be directed to the correct locations from this...
  • Page 16 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de USAGE, continued When the toilet is functioning correctly, the composted matter will have a musty or soil-like odor and the visual appearance will be very similar to that of the original sphagnum peat moss.
  • Page 17 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg USAGE: Emptying With the bottle assembly removed, lift the seat unit several inches and slide it to the left to disengage the slip hinge. (You may...
  • Page 18 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de USAGE: Disposal The recommended procedure for disposing of the contents of the solid waste tank is placing it in a proper composting bin to allow it to fully decompose.
  • Page 19: Customer Service

    NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg CLEANSING & MAINTENANCE A quick spray of water and white vinegar or a natural cleaner from a squirt bottle is all that is needed to keep your NH fresh between uses. If necessary, a moistened paper towel (no synthetics) is excellent for cleansing the interior (as well as the exterior) of the head.
  • Page 20: Troubleshooting

    NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de TROUBLESHOOTING Find more troubleshooting and FAQ information online at natureshead.net/ installation_use. Or email us at sales@natureshead.net. Fan not working. If using 12 volt battery, check for voltage. Be sure the wire marked positive is attached to the positive from the battery.
  • Page 21 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg OPTIONS For enhanced capacity and convenience, consider these options for your Composting Toilet. All items are avail- NATURE’S HEAD ® able for purchase on our website www.NaturesHead.net, from our distributors, or by phone at 251-295-3043.
  • Page 22 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de Nature’s Head Composting Toilet ® /,0,7(' :$55$17< 7KLV 1$785(¶6 +($' FRPSRVWLQJ WRLOHW DQG LWV FRPSRQHQWV DUH ZDUUDQWHG DJDLQVW GHIHFWV Š LQ PDWHULDOV DQG ZRUNPDQVKLS IRU ¿ YH  \HDUV IURP WKH LQLWLDO SXUFKDVH GDWH 'XULQJ WKLV SHULRG DQ\ 1$785(¶6 +($'...
  • Page 23 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 www.toplicht.de Notkestraße 97 · 22607 Hamburg...
  • Page 24 NATURE´S HEAD 0049 (0)40-88 90 100 Composting Toilet Art-Nr.4603-001 Notkestraße 97 · 22607 Hamburg www.toplicht.de NATURE’S HEAD, INC. PO Box 250 Van Buren, OH 45889 251-295-3043 www.NaturesHead.net...
