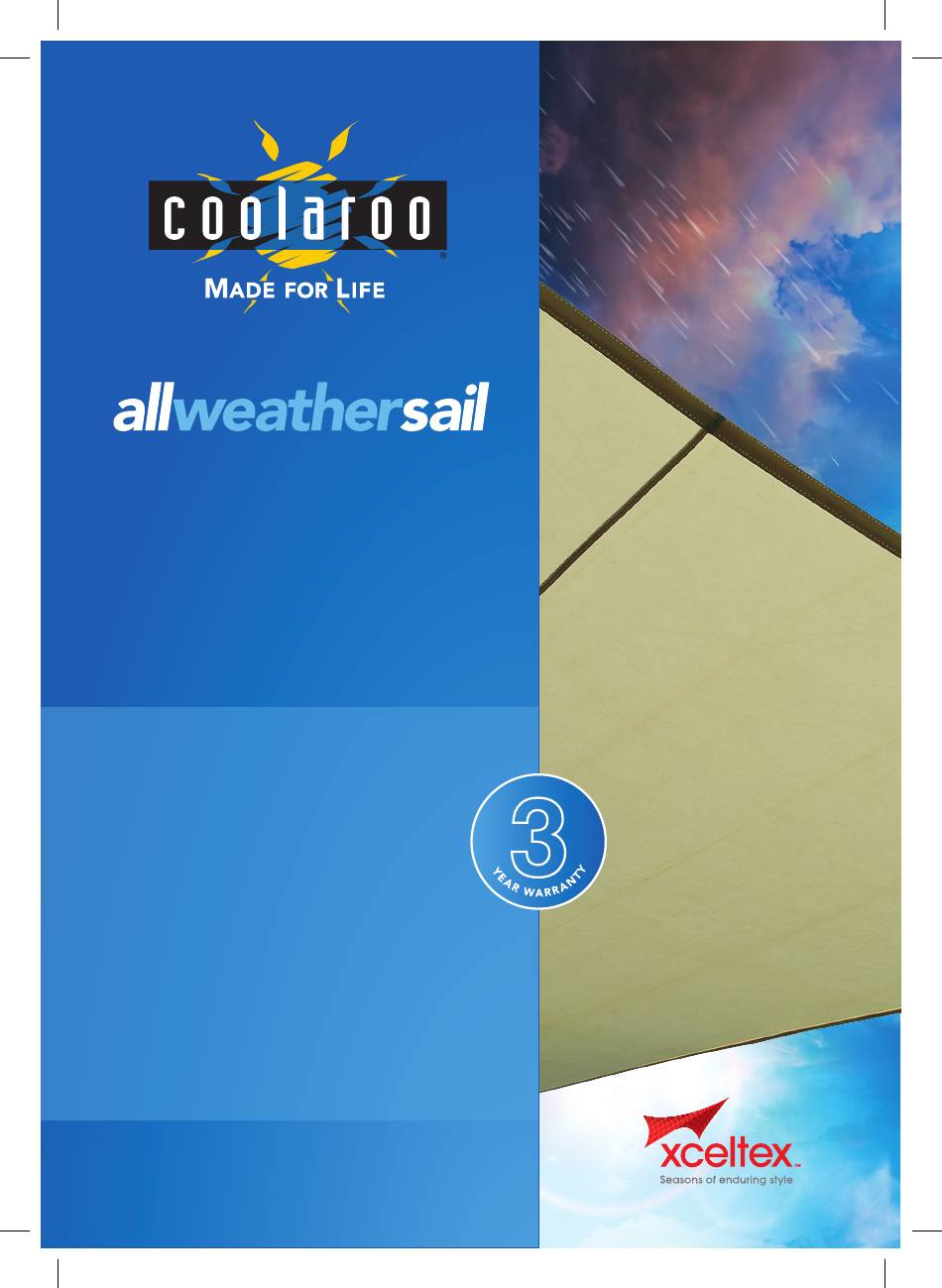

Protection all year round
Installing your new Coolaroo
all weather sail is simple, following
our step-by-step instructions.
Features
• Provides 100% UV block
• Water resistant
• M ade with UV stabilised knitted fabric
for greater strength & durability
• Resists mould & mildew
• 3 year warranty
• Perfect for sun & rain
A vailable in:
• 5 x 3m - charcoal & desert sand
• 3 x 3m - charcoal & desert sand
These instructions are recommendations only, please consult an engineer if necessary.
coolaroo.com
Advertisement
Table of Contents
Related Manuals for Coolaroo xceltex
Summary of Contents for Coolaroo xceltex
- Page 1 Protection all year round Installing your new Coolaroo all weather sail is simple, following our step-by-step instructions. Features • Provides 100% UV block • Water resistant • M ade with UV stabilised knitted fabric for greater strength & durability • Resists mould & mildew • 3 year warranty • Perfect for sun & rain A vailable in: • 5 x 3m - charcoal & desert sand • 3 x 3m - charcoal & desert sand These instructions are recommendations only, please consult an engineer if necessary.
- Page 2 It is important to check prior to installation for any relevant building regulations with your local authorities (council). Wind loads and resistance The Coolaroo all weather sail has been tested and approved for installation in the following areas: • Terrain categories 2 (open country) and 3 (urban) • Regions A, B and C...
- Page 3 20 degree + slope. Determining suitable fixing points After deciding on the location of your Coolaroo all weather sail it is eg. Fixing points important to identify structurally suitable fixing points for the sail corners.
- Page 4 Post lengths should be calculated taking into account the proposed height of your sail plus the depth of your footings. It is advisable to lean posts at an angle of 5 degrees, sloping away from the centre of the sail for additional support. Treated timber posts 125mm 125mm coolaroo.com...
- Page 5 ° add the required amount of concrete. Temporarily brace the posts until concrete is fully cured. Concrete footing 20mm dia. gravel laid 100mm at base of post coolaroo.com...
- Page 6 Connect the shade sail to the fixing accessories, leaving one of the tensioning fixing points to last for connection. If necessary, to gain increased leverage use a Coolaroo strap tensioner. coolaroo.com...
- Page 7 Stop tensioning when the sail is rigid with little or no creases, the Coolaroo strap tensioner can be used to assist in tensioning the sail. A sail which has been mounted and tensioned correctly will have little to no creases.
- Page 8 Warning Prior to installing, consult your local council regarding building regulations which may apply in your area. Your Coolaroo all weather sail is designed to provide protection and comfort in domestic areas. When selecting the position for your shade sail, ensure all fixing points are structurally sound and fixings are tightly secured.
