Summary of Contents for Bayer HealthCare D3

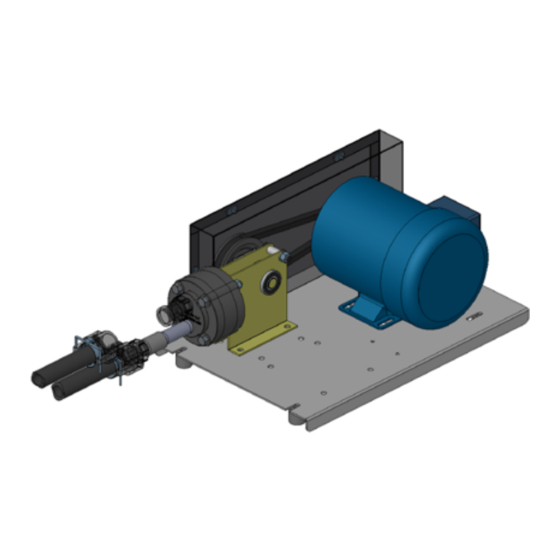

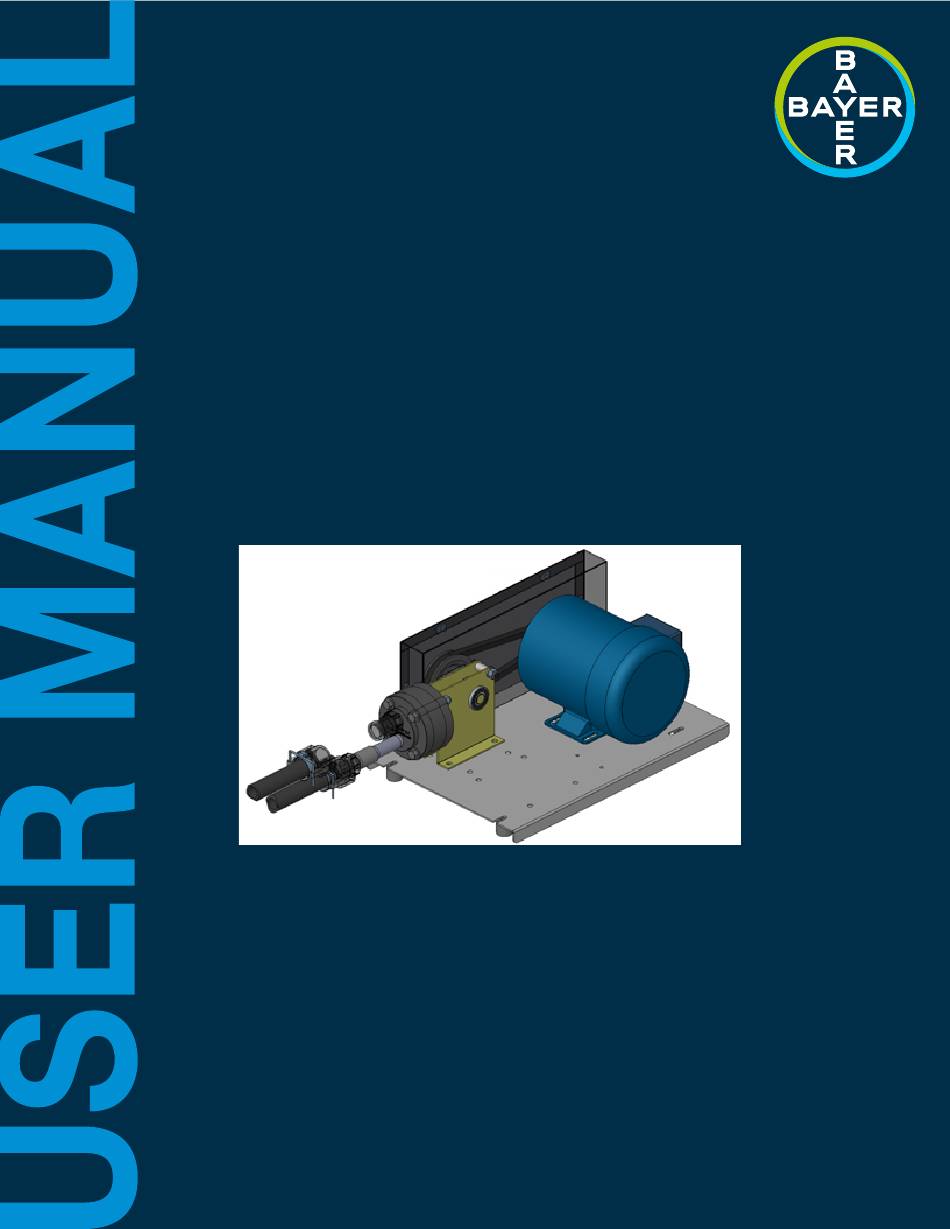

- Page 1 D3 PUMP SERVICE #04161797...
-
Page 2: General Information
GENERAL INFORMATION This manual contains technical information regarding Bayer SeedGrowth™ Equipment. Please read and understand these instructions completely before proceeding to install and operate the equipment. Bayer reserves the right to change specifications, models, components, or materials at any time without notice. For additional equipment information contact us at 1.800.634.6738. -
Page 3: Exposure Control
EXPOSURE CONTROL EXPOSURE CONTROL Always use caution and common sense when working with chemicals. Read the product label and SDS carefully and follow their instructions exactly as described. The following Personal Protective Equipment (PPE) recommendations and best practices help promote safe use in seed treatment. Wear protective clothing Treatment products Wear disposable or reusable coveralls with... -
Page 4: Maintenance
Set the Pump Assembly PSD with D3 Pump on a workbench in order to have full access to the D3 Pump. Always use a drip / spill pan under the pump when doing repairs. - Page 5 MAINTENANCE MAINTENANCE Step 8: Remove and check the Spring Retainers and replace them if Step 9: Remove and check the Valve Springs. If they are shorter than Step 10: Remove and check the valves. Replace if worn. Step 11: Remove and check the Valve Seats. When removing, they are worn or damaged.
- Page 6 MAINTENANCE MAINTENANCE Step 12: Install new O-rings on the Valve Seats. Step 14: Insert the Valve Seat with O-ring into the Valve Plate. Next, Step 15: Remove the Screw, O-ring and Follower from the center of Step 16: Inspect the Plunger on the Plunger Shaft for wear. insert the Valve, Spring and Spring Retainer into the Valve Plate.
- Page 7 Replace the retaining U-clips on both secure. the top and bottom hoses connected to the D3 Pump. Step 18: Install the O-rings on the back side of the Manifold Plate. Use...
-
Page 8: System Diagram
SYSTEM DIAGRAM SUGGESTED SPARE PARTS SYSTEM DIAGRAM Suggested Spare Parts 04134919 DIAPHRAGM REPAIR KIT: D3 PUMP 04161797 D3 PUMP ASSEMBLY FOR PSD TANK • 04116503 DIAPHRAGM, VITON (1) 04151384 • 04151392 O-RING:DASH#026(1.239 X 1.379):VITON (2) • 04151384 O-RING:DASH#010(0.239 X 0.379):VITON (1) "... - Page 9 Bayer For fast and easy access to Crop Science Division our website scan the code with 1451 Dean Lakes Trail your smartphone and an Shakopee, appropriate app. Minnesota 55379 www.seedgrowth.bayer.com...
