Electro-Harmonix Tube Zipper Quick Start Manual

- Warranty Information -
Please complete and return the enclosed warranty card within 10 days of purchase.
We will repair the unit for free within one year of date of purchase. If you should
need to return your unit for service within the warranty period, please include a brief
description of the problem as well as you name, address, telephone number, copy of
your receipt, and a check or money order for $5.00 shipping and handling to:
Electro-Harmonix
C/O New Sensor Corporation
th
32-33 47 Ave
Long Island City, NY 11101
Att: Service Department
Please make checks/money orders payable to New Sensor Corporation.
To hear demos by rock stars on all EH pedals visit us on the web at www.ehx.com.
Email us at info@ehx.com

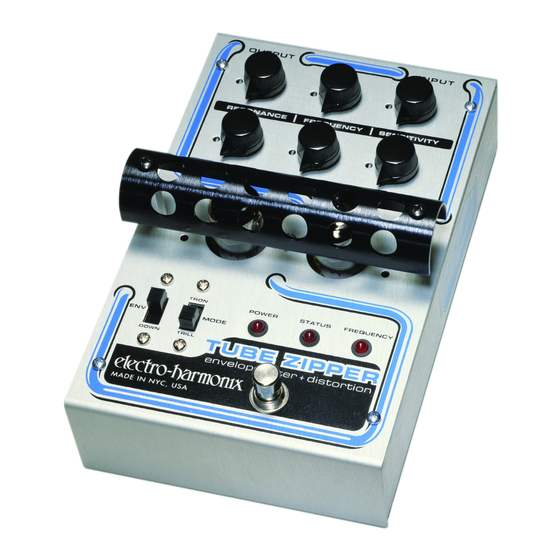

TUBE ZIPPER
envelope filter + distortion
Congratulations on your purchase of the truly outrageous Tube Zipper. The Tube Zipper is
two effects in one, a warm sounding Tube Envelope Follower and a rich tube Distortion unit.
When these two effects are combined into the same circuit the outcome are entirely unique
new wild effects. The Tube Zipper uses two premium 12AX7EH vacuum tubes.
Carefully reading these instructions will ensure that you will get the most out of your Tube
Zipper. We urge you to sit down with your Tube Zipper and spend some time learning exactly
how this pedal works. You won't regret it!
Your Tube Zipper comes with a unique 12V AC/1000mA adaptor. Use only the adaptor
supplied. Using any other adaptor can cause harm to you and the Tube Zipper.
- CONTROLS -
ENV Switch (UP/DOWN) – Selects the direction of the filter sweep.
MODE Switch (TRON/TRILL) – In TRON MODE, the filter sweeps smoothly and follows
the envelope of the input signal. In TRILL MODE, a modulation is added to the envelope so
that as the filter sweeps, it sounds like the note is being trilled. WARNING: If the INPUT
GAIN knob and SENSITIVITY knob are both turned up when switching from TRON to
TRILL MODE it is possible that the unit will go into oscillation, this can be avoided by
turning down the SENSITIVITY or INPUT GAIN knobs before flipping the MODE switch.
INPUT GAIN Knob – Boost the input signal before the filter. When the INPUT GAIN is
turned up, it will yield tube distortion.
DRIVE Knob – Adjusts the amount of distortion after the filter. As you turn the DRIVE knob
up, past 12 o'clock, the overall volume of the pedal will begin to decrease. Simply turn the
MASTER VOLUME up to compensate.
SENSITIVITY Knob – Determines how sensitive the filter sweep is to your playing. Use this
knob to adjust how far up or down the filter will sweep when you play.
FREQUENCY Knob – Sets the peak frequency of the filter when the envelope is not active.
When the envelope is active, the FREQUENCY knob determines both the start and stop
frequency of the filter sweep.
RESONANCE Knob – Determines the RESONANCE or Q of the filter. As you turn the
RESONANCE clockwise the filter will become increasingly sharper. When the
