USER GUIDE
MPPT solar charge controller
MPPT solar charge controller
358-010003-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPPT and is the answer not in the manual?

Questions and answers

Juliet
February 12, 2025

Please confirm the maximum AC charging current for Felicity IPVS10048

0

Summary of Contents for Felicitysolar MPPT

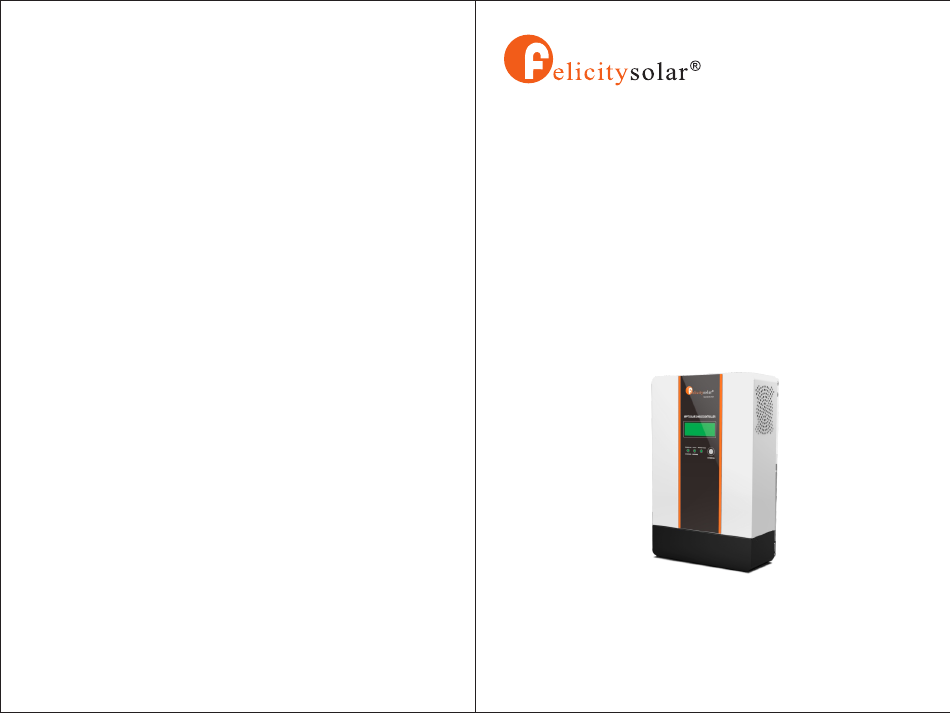

  • Page 1 Make life full of hope USER GUIDE MPPT solar charge controller MPPT solar charge controller 358-010003-04...

  • Page 2: Table Of Contents

    5.3 Setting Parameter and Default Value ............15 6. TROUBLE SHOOTING ..................16 7. SPECIFICATIONS ................... 17-18 8. MPPT charger controller match to the Inverter ............19 8.1 Match the inveter to the MPPT controller ........... 19 8.2 Matching MPPT function is prohibited............19 8.3 Matching MPPT function successfully enabled ...........

  • Page 3: About This Manual

    finding the maximum power point of the array. (12V / 24V / 48V) The MPPT battery charging process has been optimized for long battery life and improved system performance. Self-diagnostics and electronic error protections prevent damage when installation errors or system faults occur.

  • Page 4: Installation

    MPPT solar charge controller MPPT solar charge controller 3. INSTALLATION 3.4 Power Connection Wire size 3.1 Unpacking and Inspection The four large power terminals are sized for 14 - 2 AWG (2.5 - 35 mm 2 ) wire. The terminals are rated for copper and aluminum Before installation, please inspect the unit.

  • Page 5: Grounding And Ground Fault Interruption

    MPPT solar charge controller MPPT solar charge controller Connect terminals by following below steps (Refer to diagram above): The RTS cable may be pulled through conduit along with the power wires. Tighten the connector screws with 5 in-lb (0.56 Nm) torque.

  • Page 6: Operation

    MPPT solar charge controller MPPT solar charge controller Button Operation 4. OPERATION Function Action Description 4.1 Power-Up Power on Press the button until LCD backlight is on. WARNING: Risk of Damage Backlight on Press shortly Connecting the solar module to the battery connector will permanently damage the controller.

  • Page 7: Lcd Setting

    Batteries are fully charged. 4 bars will be on. 24V / 48V.If you want to set “Lib”, first set the 05 battery rated voltage (MPPT 45A(12/24V) can't set the Absorption voltage to 48v, LIb mode can't set the 4.4 LCD setting AUO), then set 02 to "LIb"...

  • Page 8: Reference Code

    MPPT solar charge controller MPPT solar charge controller If “AUO” is selected, connected Auto (Default) battery voltage system will be The setting range is from 5 minutes to automatically detected. 60 minutes(Default) 900 minutes. Increment of each short Note:LIb mode can't set the AUO Battery equalized time press is 5 minutes.

  • Page 9: Charging Logic

    MPPT solar charge controller MPPT solar charge controller 5.2 Equalize Stage 5. CHARGING LOGIC Equalization function is added into solar charge controller. It reverses the buildup of negative chemical effects 5.1 3-stage Charging like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top.

  • Page 10: Setting Parameter And Default Value

    MPPT solar charge controller MPPT solar charge controller Equalize charging time and timeout 6. TROUBLE SHOOTING In Equalize stage, based on maximum charging current of battery equalization, the controller will supply solar power to charge battery as much as possible until battery voltage raises to battery equalization voltage.

  • Page 11: Specifications

    MPPT solar charge controller MPPT solar charge controller 7. SPECIFICATIONS Table 2 Battery Charging MODEL SCCM3024 SCCM4524 SCCM4548 SCCM6048 SCCM8048 SCCM10048 SCCM12048 Table 1 Electrical Specifications Charging Algorithm 3-Step MODEL SCCM3024 SCCM4524 SCCM4548 SCCM6048 SCCM8048 SCCM10048 SCCM12048 Charging stages Bulk, Absorption, Float...

  • Page 12: Mppt Charger Controller Match To The Inverter

    first, and the communication lines between them have been connected; If MPPT is not in the charging state, but 2.Then press the “Down”button of the inverter for more than 2.5 seconds, until the MPPT charger icon INPUT PV voltage is greater than 30V and is in Match MPPT flashes.
