Summary of Contents for MSTR BRAND LINK MX88-4KUHDE

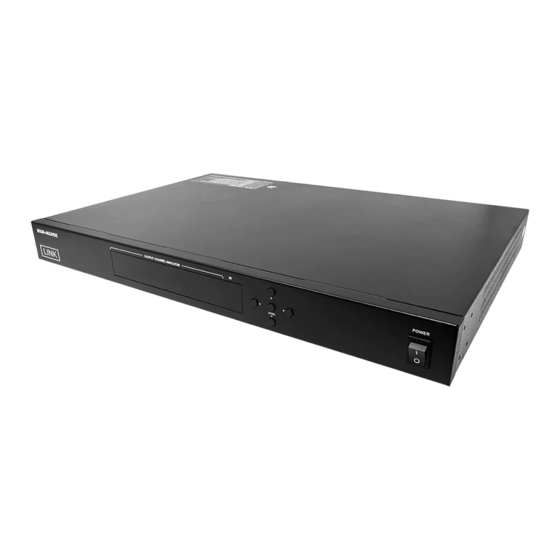

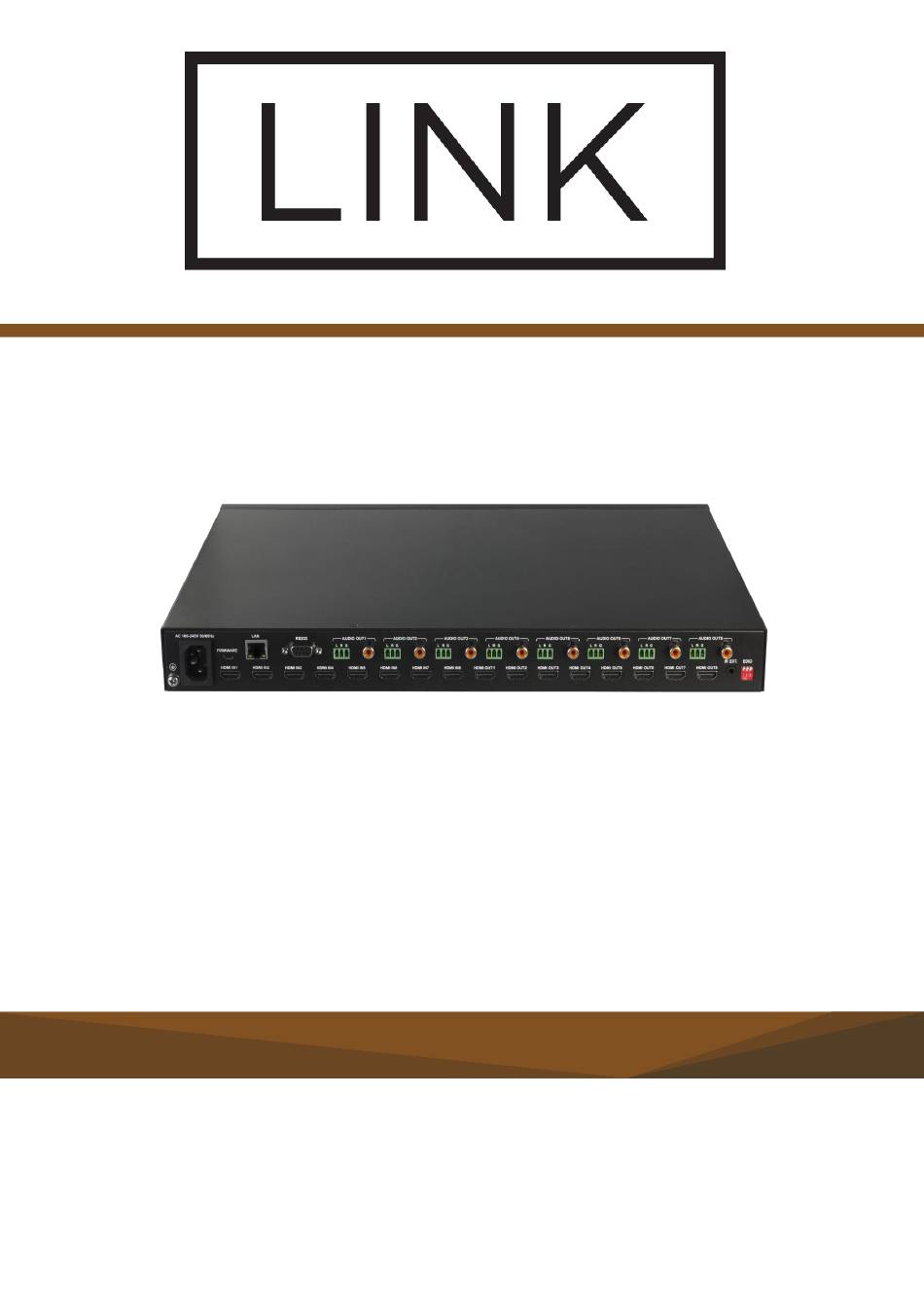

- Page 1 8x8 HDMI 2.0 Matrix Switcher with de-embedded audio Quick Start Guide...
- Page 2 Connection 1. Using good quality HDMI cable, firmly connect 4K or HD source devices (such as: Blu-Ray, computer, games console, satellite/cable, music streaming device, CCTV etc.) to the HDMI input ports 1-8 of the matrix. Suggestion: Please insert and extract cables carefully with the power SWITCHED OFF. 2.
- Page 3 Matrix Control. Front Panel Control This matrix is designed with ease of connection and control in mind. Basic switching of input sources to output displays can be achieved by pressing front panel buttons and the front LEDs indicate the current input and output status of the matrix. Step 1.
- Page 4 RS232 Connection Step 1. Connect the matrix RS232 port to PC. Step 2. Run the UART tool on PC, configure the serial port as described in the following table. Serial Parameter Setting Baud Rate 9600 bps Data Bits 8 bits Parity Bits None Stop Bits...
- Page 5 WWW.MSTRBRAND.COM...
