Summary of Contents for ELECTRODRIVE Bariatric Wheelchair Mover

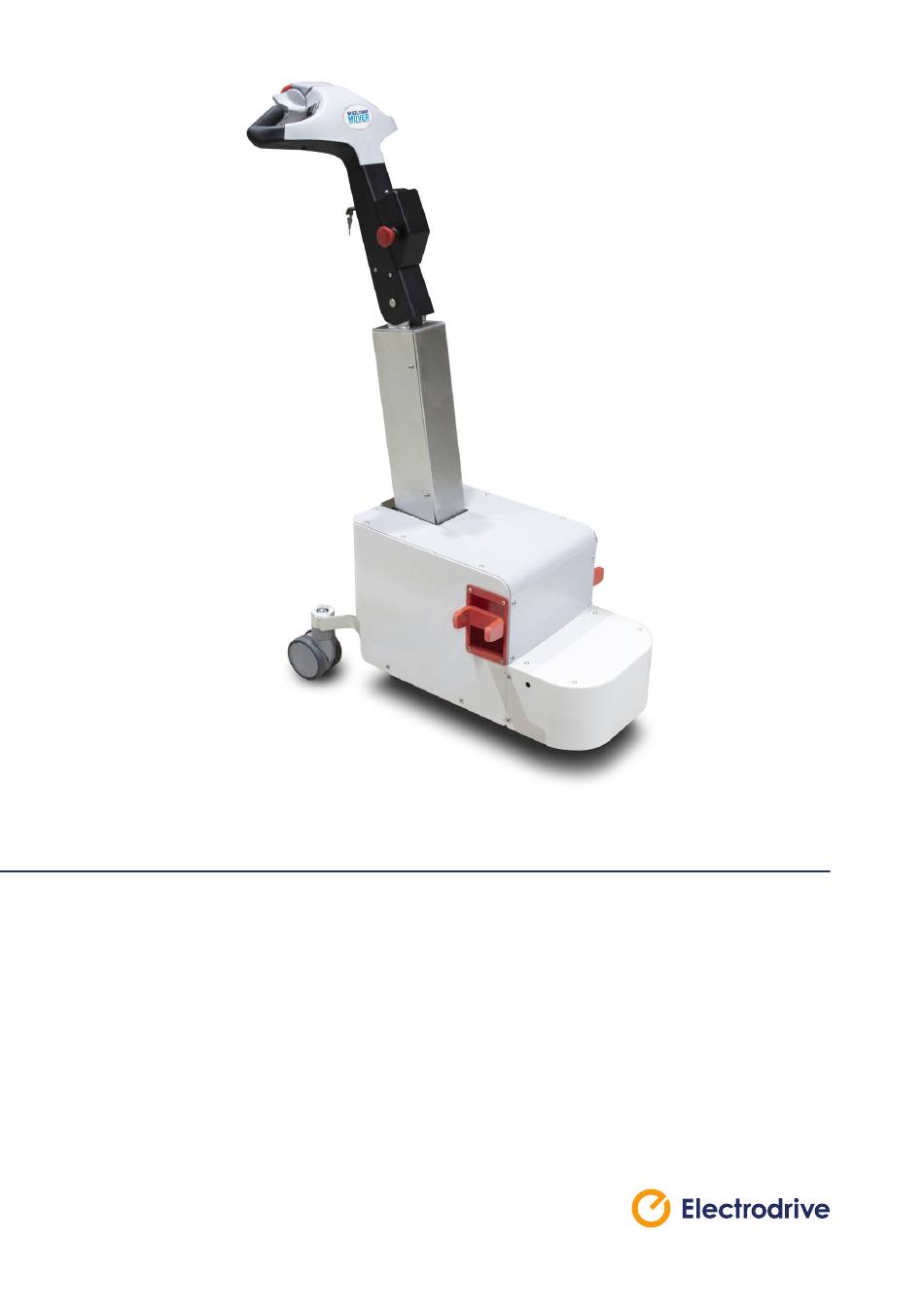

- Page 1 Bariatric Wheelchair Mover Operating Manual...
- Page 2 Using this unit incorrectly may void warranty. Any damage audible or visible to this unit should be addressed at the time of discovery. Electrodrive Pty Ltd can provide parts and service support on request through its service partner company: Serviced Equipment Pty Ltd p: 1300 934 471 e: service@fallshaw.com.au...
-
Page 3: Table Of Contents
Bariatric Wheelchair Mover—Operating Manual Contents Introduction ........................5 Operating instructions ....................6 Controls ........................6 Using the Bariatric Wheelchair Mover ................8 Hitching and unhitching to a wheelchair ..............9 Sleep mode ......................... 11 Charging ........................11 Maintenance ......................... 12 Batteries ........................ - Page 4 Appendix 4: Wiring diagram ..................18 Appendix 5: Charging procedures for SLA batteries ..........19 Charging setup ......................19 During charging ......................19 Charger manual ......................19 Appendix 6: Spare parts list..................20 Service log ........................21...
-
Page 5: Introduction
As with any machinery, safety considerations demand that the Bariatric Wheelchair Mover be handled with caution, and only operated by trained and authorised personnel. In addition, the wheelchair must be securely locked to the Bariatric Wheelchair Mover. The Bariatric Wheelchair Mover must only be operated by trained and... -
Page 6: Operating Instructions
Operating instructions Controls Speed selector Hitch mechansism Controls Hitch controls Throttle Battery level indicator Emergency back-off bar Emergency stop Key switch... - Page 7 1. In reverse (towards the operator), the Bariatric Wheelchair Mover will stop and then move away from the operator for a short distance. 2. In the forward direction, the Bariatric Wheelchair Mover will reduce to a slow speed. Any accessories installed that prevent the safe operation of the emergency back-off bar may create a crush hazard for the user.
-
Page 8: Using The Bariatric Wheelchair Mover
Mover is not significant, it may still have an impact on some high accuracy hospital equipment. It is advised that you do not park or keep the Bariatric Wheelchair Mover too close to this kind of equipment when they are in use. -
Page 9: Hitching And Unhitching To A Wheelchair
The wheelchair is now ready to be moved. Unhitching from a wheelchair 1. Confi rm the Bariatric Wheelchair Mover and wheelchair are stationary, and on level ground. 2. Apply brakes to lock the wheelchair in position. 3. Press the ‘unlock’ button until both grippers are totally free from the wheelchair frame. - Page 10 Hitch range (maximum and minimum) REGULAR VERSION: (max) (min) Regular version BARIATRIC VERSION: (max) (min) Bariatric version...
-
Page 11: Sleep Mode
Bariatric Wheelchair Mover—Operating Manual Sleep mode After a period of 30 minutes of inactivity, the Bariatric Wheelchair Mover will switch into a sleep mode to extend battery life. To resume operation, simply reset by turning key OFF then ON. Charging 1. -
Page 12: Maintenance
Maintenance Batteries If the Bariatric Wheelchair Mover is not being used for an extended period of time, it should be connected to the battery charger to check the battery level on a regular basis, and placed on charge overnight if required. This will ensure the batteries are kept in good condition. -
Page 13: Electronic Speed Control
Circuit breaker The Bariatric Wheelchair Mover is fitted with a self-resetting circuit breaker in case of momentary overload. This switch can be found next to the fuses as shown. If the circuit breaker continues to trip multiple times in succession, test the machine, as the motor may be damaged. -
Page 14: Warranty
12 months from the date of dispatch from the Electrodrive plant. If a defect is reported, Electrodrive will repair or replace the defective part, at its own discretion. This warranty does not apply if the Bariatric Wheelchair Mover has been misused, damaged, or modified in any way. -
Page 15: Appendix 1: Machine Rating Conditions
350 kg (max.) Up to 5 km/h The Bariatric Wheelchair Mover has been designed to move the rated weight capacity on a level firm surface. Variations in the working environment may impede the performance of the Bariatric Wheelchair Mover. Such parameters include (but are not limited to) the following: §... -
Page 16: Appendix 2: Fault Codes
Appendix 2: Fault codes LED codes Explanation LED off No power or defective controller. Solid on Controller operational; No faults. 1, 1 Thermal cutback fault. R RR 1, 2 Throttle fault. R RRR 1, 3 Speed limit pot fault. 1, 4 R RRRR Undervoltage fault. -
Page 17: Appendix 3: Hitch Release Instructions
Bariatric Wheelchair Mover—Operating Manual Appendix 3: Hitch release instructions The powered hitch function of the Bariatric Wheelchair Mover has built-in safety controls to limit the output force of the hitch. When this force is exceeded, the hitch will stop. 1. In the event of the hitch stopping unexpectedly, press the ‘unlock’ button on the hitch controls. -
Page 18: Appendix 4: Wiring Diagram
Appendix 4: Wiring diagram... -
Page 19: Appendix 5: Charging Procedures For Sla Batteries
Bariatric Wheelchair Mover—Operating Manual Appendix 5: Charging procedures for SLA batteries § Always charge batteries when work is complete and the equipment is not required for use. § Opportunity charging is NOT recommended. This can also shorten battery life. § Never leave batteries in a discharged state as this will shorten the batteries life. -
Page 20: Appendix 6: Spare Parts List
Appendix 6: Spare parts list Part number Description EDGM2021 Plunger for wheelchair mover EDBATGEL33AH Battery 12V 33Ah EDBUTTERFLYCONTROL Butterfly control handle EDWIRGZ10MCSWTCH GZ10SL mirco switch loom EDGM2855 Compression springs: C08-05 EDSUBFAQ100FCSWA Trinity 100 mm conductive Q EDSPRPLG7MM Winco-822.6-7-M12X1.5-B spring pin plunger 7mm pin M12 EDMSA20R230 20mm MSA profile rail... -
Page 21: Service Log
To ensure this equipment is kept in a safe and reliable condition, it is important to follow a preventative maintenance program. Maintain a log of the service work on the cards below, and always use an approved Electrodrive service agent to conduct the works. Approved service personnel will be provided with all necessary documents and components in service repair, including but not limited to, circuit diagrams, component part lists, descriptions, service checklists and spare parts. - Page 22 12 month service Date of service Service agent Machine serial number Summary of works Next service due 18 month service Date of service Service agent Machine serial number Summary of works Next service due ...
- Page 23 Bariatric Wheelchair Mover—Operating Manual 24 month service Date of service Service agent Machine serial number Summary of works Next service due 30 month service Date of service Service agent Machine serial number Summary of works Next service due ...
- Page 24 36 month service Date of service Service agent Machine serial number Summary of works Next service due 42 month service Date of service Service agent Machine serial number Summary of works Next service due...
- Page 25 Bariatric Wheelchair Mover—Operating Manual 48 month service Date of service Service agent Machine serial number Summary of works Next service due 54 month service Date of service Service agent Machine serial number Summary of works Next service due ...
- Page 26 60 month service Date of service Service agent Machine serial number Summary of works Next service due...
- Page 27 Bariatric Wheelchair Mover—Operating Manual Notes...
- Page 28 Mobility solutions to help you push, pull & lift with ease. www.electrodrive.com.au...
