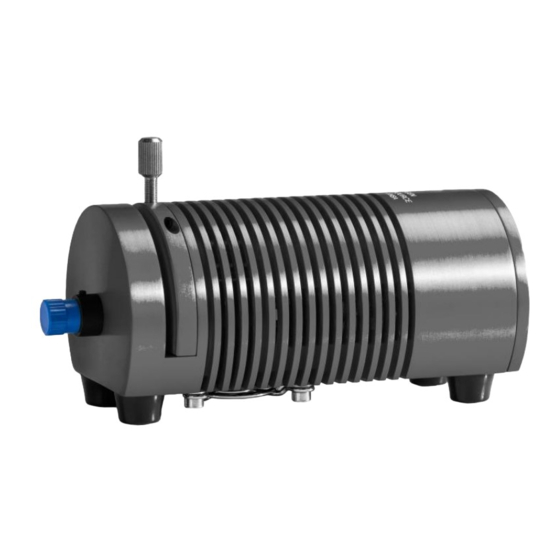

- Page 1 HL-2000 Tungsten Halogen Light Source Installation and Operation Manual Products: HL-2000-LL, HL-2000-FHSA-LL, HL-2000-HP, HL-2000-HP-FHSA...
-
Page 3: Table Of Contents
Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information provided is on an “as is” basis. Ocean Insight shall have neither liability nor responsibility to any person or entity with respect to any loss or damages arising from the information contained in this manual. - Page 4 2. Dangerous voltages are present in this device. There are NO user serviceable parts inside. 3. Only allow Ocean Insight qualified personnel to service this unit. 4. Do not use the unit if it is damaged in any way. Contact your dealer for repair or replacement information.
-
Page 5: Setup
HP sources provide 5X the unique long lifetime lamp that output of the LL models but at a extends operation to 10,000 hours. fraction of the operation lifetime. No Shutter HL-2000-LL HL-2000-HP The FHSA versions have a DB15 connector allowing for FHSA HL-2000-FHSA-LL... -
Page 6: Important Safety Notices
Unpacking the HL-2000 1. Unpack your lamp assembly carefully. Dropping this instrument can cause permanent damage. 2. Inspect the outside of the instrument and make sure that there is no damage. Do not use the instrument if damage is present. Contact your dealer for repair or replacement information, if necessary. -
Page 7: Enabling Automatic Shutter Control (Fhsa Models Only)
TTL – Controlled by external TTL (High = Open, Low = (FHSA Models Only) Closed) NOTE Use Ocean Insight software to save a dark measurement. Optimizing the Optical Power Output Blocking Screw The HL-2000 is adjusted at the factory to provide maximum power into a 200 µm fiber. -
Page 8: Attenuating The Optical Power Output (Fhsa Models Only)
Attenuating the Optical Power Output (FHSA Models Only) The FHSA models HL-2000 allows you to attenuate the optical output of the unit by adjusting the attenuation screw. Attenuation Screw To attenuate the optical output of the HL-2000 FHSA models, follow the steps: Fixture Screw 1. -
Page 9: Hl-2000 Specifications
HL-2000 Specifications HL-2000-LL HL-2000-FHSA-LL HL-2000-HP HL-2000-HP-FHSA Wavelength range 360 – 2,400 nm Stability 0.25% Peak to Peak Drift <0.1% per hour Warm Up Time 10 Min Bulb lifetime 10,000 Hrs (typical) 1,000 Hrs (typical) Fiber Connector SMA 905 Shutter DB-15 Connector... -
Page 10: Pinout Information (Fhsa Models Only)
Pinout Information (FHSA Models Only) Description Description Ground TTL Signal – Shutter control na = not applicable Replacement Bulbs Parts List Spare Parts / Order Information Catalog Number Halogen spare bulb 2.800K / 10.000 hrs HL-2000-B-LL Halogen spare bulb High-Power HL-2000-HP-B MNL-1013 Rev B... -
Page 11: Bulb Replacement
Bulb Replacement To order replacement bulbs for the HL-2000, please visit OceanInsight.com. Before replacing the bulb in the HL-2000, disconnect the lamp from your power source and allow the unit to cool for at least 20 minutes, if necessary. Replacing the Bulb 1. - Page 12 Questions? Chat with us at OceanInsight.com. info@oceaninsight.com • +1 727-733-2447 EUROPE +31 26-3190500 • ASIA +86 21-6295-6600...
