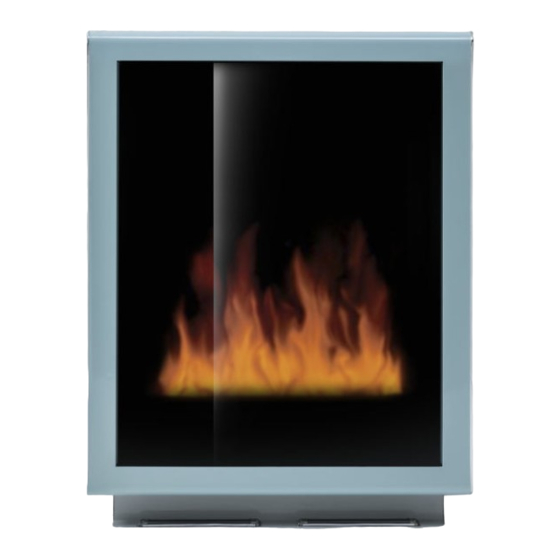

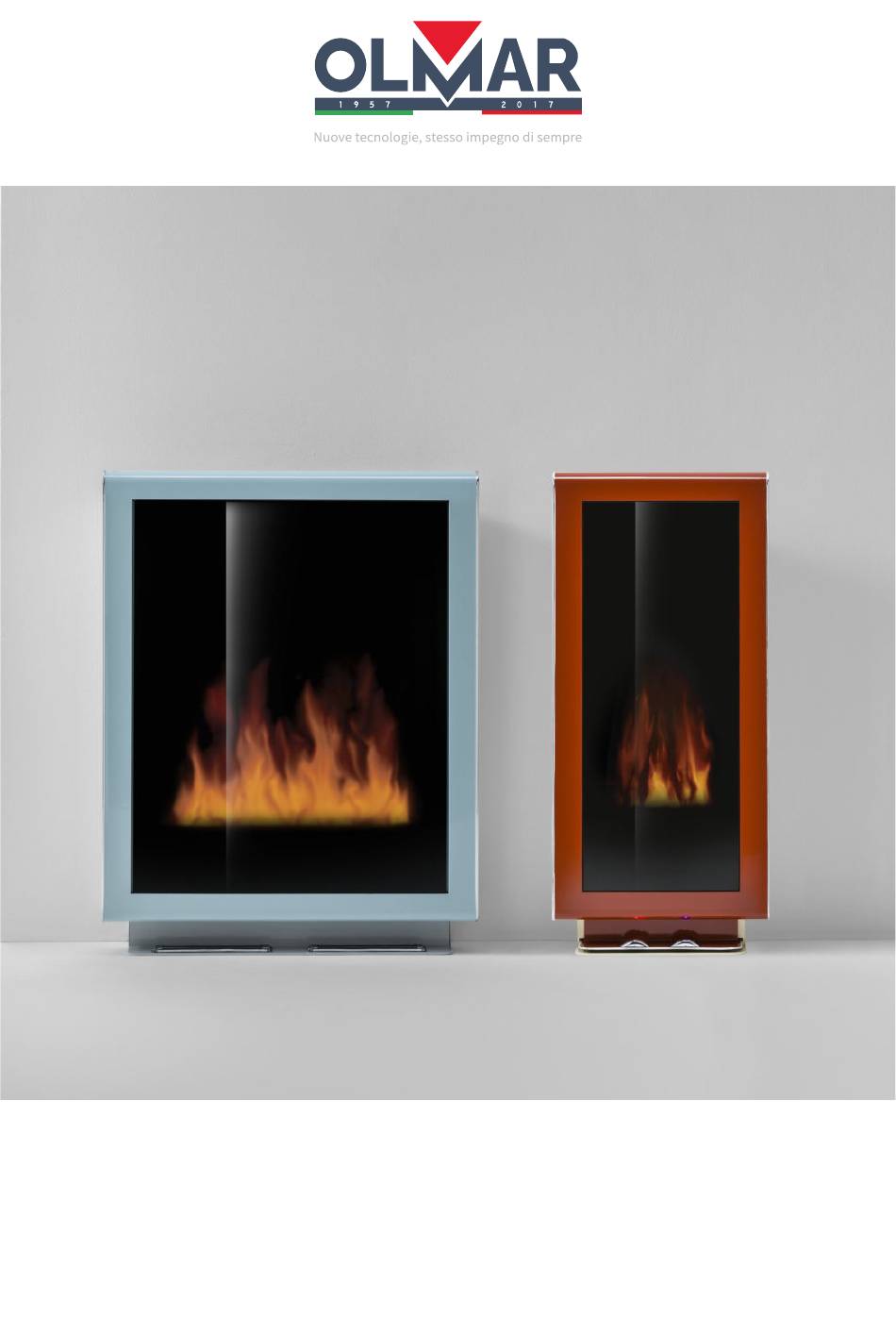

- Page 1 AURETTA AURETTA 50’s MAXI 50’s MIDI Installation and use instructions for the other countries...
-
Page 2: Table Of Contents
INDEX Health and safety information ..............03 Technical characteristics of the appliance ..........04 Assembly instructions ................07 Remote control and functions ..............10 Technology and functions ................13 Maintenance and cleaning ................. 16 Environment ....................17 KEY TO SYMBOLS WARNING! OBLIGATORY QUALIFIED PERSONNEL WARNING! HOT GLASS TEMPERATURE... -
Page 3: Health And Safety Information
IMPORTANT HEALTH AND SAFETY INFORMATION Read all the instructions carefully before using the appliance. DO NOT INSTALL AND USE THE APPLIANCE IF DAMAGED Remove all packaging. In case of disposal, place them in an appropriate recycling facility. Do not immediately connect the appliance to a power socket. Install the appliance before checking its operation. -
Page 4: Technical Characteristics Of The Appliance
TECHNICAL CHARACTERISTICS OF THE APPLIANCE THIS APPLIANCE MUST BE CONNECTED WITH A SOCKET PROVIDED WITH EARTHING VOLTAGE ........220 volts 50/60 Hz POWER ......... 1000 watts ENERGY CONSUMPTION ..... 800 watts / h at MAX 750 watts/ h constant operation EMISSION ........ - Page 5 THIS APPLIANCE MUST BE CONNECTED WITH A SOCKET PROVIDED WITH EARTHING VOLTAGE ........220 volts 50/60 Hz POWER ........1800 watts ENERGY CONSUMPTION ..... 1350 watts/h at MAX 1000 watts/h constant operation EMISSION ........FAR INFRARED RAYS SPECTRUM ........4 – 14 μ micron CONTROL ........
- Page 6 DUAL Ag + TECHNOLOGY: exclusive technological process that allows the generation of infrared FIR rays with a wavelength between 4 and 14 microns combined with the antibacte- rial and antimicrobial properties of SILVER IONS. PROTECTION AND SAFETY: the tempered glass emitter is set up with a system that guarantees its safety in any condition of malfunction or accidental breakage.
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before proceeding with the assembly of the panel, make sure that you have carefully read the specifications and characteristics of the product and that you have clearly understood the following assembly instructions. This appliance has been certified for use in Italy, precisely to install the appliance in different countries, instructions in the language of the country of installation are required and in some cases make changes to the appliance itself. - Page 8 REMOVE THE APPLIANCE FROM THE PACKAGING AS DESCRIBED IN POINT 3.3 pag. 0.6 • DEFINE THE INSTALLATION AREA • • • VERIFY THAT THE MAINS AND THE ELECTRICAL SYSTEM COMPLY WITH CEI 64-08 • • • FIX THE SEALING BRACKET TO THE WALL •...
- Page 9 3.07 The appliance must be installed so that switches or other controls are accessible. Check that the electrical system is up to standard. Consult an installer. 3.08 The appliance is operated and operated exclusively with the supplied remote control 3.09 After mounting, make sure that the electrical outlet is easy to access and is equipped with a single-pole interruption device with a separation distance between the contacts of at least 3mm.
-
Page 10: Remote Control And Functions
REMOTE CONTROL USE AND FUNCTIONS WARNING: The appliance is equipped with a bipolar switch located in the lower part of the frame in a central position. MAKE SURE THAT THE SWITCH IS ON BEFORE OPERATING THE REMOTE CONTROL REMOTE CONTROL FUNCTIONS DISPLAY AND THERMOMETER WARNING: The appliance is equipped with a remote control that activates and regulates both the heating... - Page 11 SANITIZATION FUNCTION unique and exclusive, PARIGINA and AURETTA are of great help to avoid and eliminate the proliferation of spores, bacterial and fungal flora. The OXYACTIVE concept ozone and negative ion production system, which they are equipped with and can be operated via the remote control, ensures excellent air quality in the room and eliminates bad odors.
- Page 12 HEATING + SANITIZATION FUNCTION: PRESS THE KEY: heating activation PRESS THE BUTTON: A activation of sanitation + heating in automatic mode AIR + icon of the image will appear on the display flame + ozona- tion image + the letter A. PRESS THE BUTTON: M activation of sanitation + heating in manual mode AIR + icon of the image will appear on the display flame + the letter...
-
Page 13: Technology And Functions
TECHNOLOGY AND FUNCTIONS PARIGINA and AURETTA BIOGENIC WAVE HEATING- How do they heat the BIOGENIC waves? Infrared waves do not need a medium, such as air or water, to “travel”. They move easily both in air and in space, producing heat only when they hit an object, such as the surface of the earth or the wall of a house. When the radiation emitted by an infrared panel hits an object (walls, ceilings, floors, internal objects), the rays generate the movement of the affected molecules, which begin to oscillate. - Page 14 ENVIRONMENTAL SANITIZATION Ozone is a natural gas that is a very po- werful disinfectant. Active to disinfect water and air, it is extraordinary effecti- IT NEUTRALIZES BACTERIA & NATURAL ve against bacteria, virus, molds, fungus, Ozone is a natural gas made of three mo- DEACTIVATES VIRUS thanks to its proper- and it has also a deodorant function.
- Page 15 Every day we breathe air with less ions because of heating systems, air conditioning, smoke, static electricity and electrical fields. Thanks to the OXYACTIVE system of OLMAR with PINOTTO you can increase the quality of the air in the envi- ronment, breathe pure, sanitized and purified air, increasing your personal wellness every day of your life.
-
Page 16: Maintenance And Cleaning
MAINTENANCE AND CLEANING The PARIGINA and AURETTA do not require special cleaning treatments. A - Make sure they are off. In this position the flame does not appear. B -To turn off, use the bipolar switch located in the lower central part of the frame and position it in OFF.
