Summary of Contents for Konnwei KW450

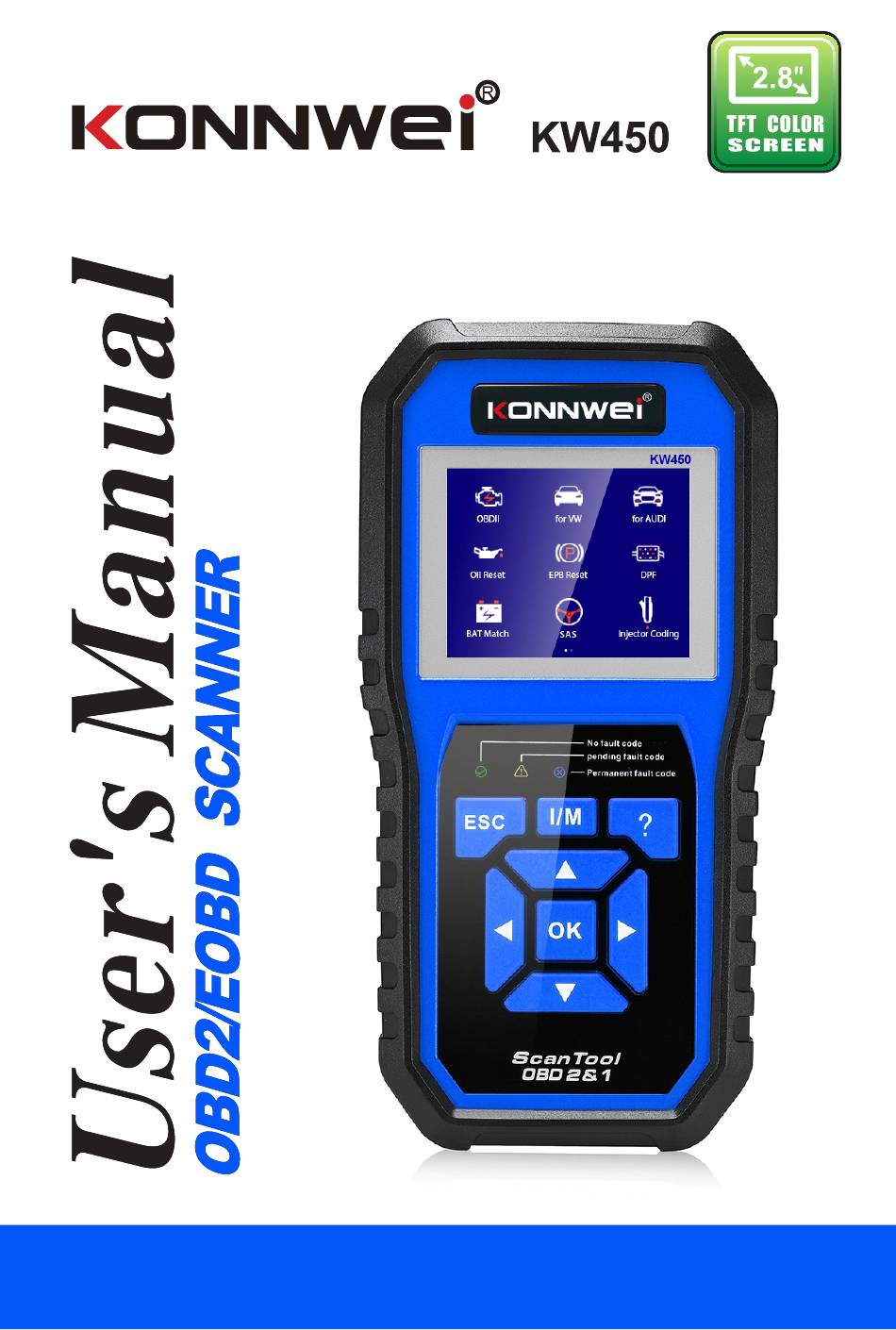

- Page 1 VW Audi Seat Skoda Full System...
-
Page 2: Safety Precautions And Warnings
1.Safety Precautions and Warnings To prevent personal injury or damage to vehicles and/or the scan tool, read this instruction manual first and observe the following safety precautions at a minimum whenever working on a vehicle: 1) Always perform automotive testing in a safe environment. 2) Wear safety eye protection that meets ANSI standards. -
Page 3: Specifications
OBD II CONNECTOR - Connects the scan tool to the vehicle’s Data Link Connector(DLC). LCD DISPLAY - Displays menus and test results. ① GREEN LED - Indicates that engine systems are running normally (The number of monitors on the vehicle which are active and performing their diagnostic testing is in the allowed limit, and no DTCs are present). -
Page 4: Connection And Settings
4. Connection and Settings 4.1 Location of the Data Link Connector(DLC) The DLC (Data Link Connector or Diagnostic Link Connector) is typically a 16-pin connector where diagnostic code readers interface with the vehicle's on-board computer. The DLC is usually located 12 inches from the center of the instrument panel(dash), under or around the driver's side for most of the vehicle. - Page 5 5.VW Diagnose This function is specially designed to diagnose the 101 electronic control systems of a single vehicle Model In Figure, select [for VW] or [for AUDI], and press [OK] , the system will display following screen: 5.1 Common control unit...
- Page 6 This function is a common control system fault code , data stream and version reading, and clear fault code. 5.2 All control unit This function is all control system fault code , data stream and version reading, and clear fault code. 5.3 System control unit This function is to scan the common system one by one and read if there is a fault and display...
- Page 7 3 ) DPF DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the performance. DPF regeneration may be performed in the following cases: The exhaust back pressure sensor is replaced.
- Page 8 Injector is replaced;a 7 ) Throttle Match Adjust the throttle angle; (1) After replacing the electronic control unit (2) After the electric control unit is powered off; (3) After replacing the throttle body; (4) After replacing or disassembling the air inlet; (5) After cleaning the throttle body 8) Suspension Adjust the height of the air suspension.
- Page 9 emissions control information(VECI) Label, which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate “OBD II Certified’’。Additionally， Government regulations mandate that all OBD II compliant vehicles must have a “common” sixteen-pin Data Link Connector (DLC) For the vehicle to be OBD II compliant is must have a 16-pin DLC (Data Link Connector) under the dash and the vehicle emission control information label...
- Page 10 6.3 Function: It mainly includes the following functions: 1) Read Codes This option is used to identify which section of the emission control system has malfunctioned. 2) Erase Codes After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can use this function to erase the codes from the vehicle.
-
Page 11: Update & Upgrade
The results of the O2 sensor test are not live values but instead the results of the ECU's last O2 sensor test, for live O2 sensor readings. Not all test values are applicable to all vehicles. Therefore, the list generated will vary depending on vehicle. -
Page 12: Service Procedures
2. A PC or laptop with USB ports 3. USB cable 1) Download the application UPlink.exe from our website: www.konnwei.com 2) Run UPlink.exe in your computer(Mac iOS and Linux does not compatible) 3) Press any button until the USB cable is connected with computer and release it after the tool display a message“Update mode"... - Page 13 If you have any questions, please contact your local store, distributor or visit our website at www.konnwei.com If it becomes necessary to return the tool for repair, contact your local distributor for more information.
