SAFETY INFORMATION AND GENERAL GUIDE
READ AND SAVE THESE INSTRUCTIONS
• Please read and understand this entire manual before attempting to assemble, install or operate
the product.
• Make sure that all electrical connections comply with local codes, ordinances, the National
Electrical Code and ANSI/NFPA 70. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
Warning: Before proceeding, be sure to shut off electricity at main switch or circuit breaker in
order to avoid electrical shock.
Note: Fan installation must be complete including assembly of blades before testing wall control
unit.
Note: Refer to your Ceiling fan instruction manual for Safety and installation instruction.
This wall controller is to be used for the control of ceiling fan and fan light only.
Warning: Do not exceed maximum rating of the wall transmitter. Install the wall transmitter
away from excess heat or humidity

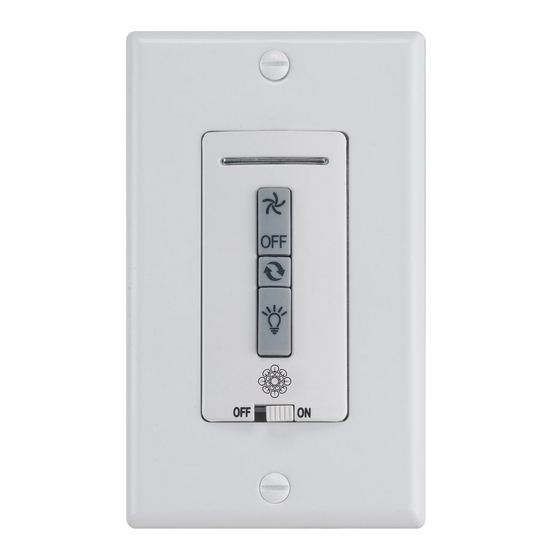

ESSWC-10 WALL TRANSMITTER
INSTALLATION AND OPERATION INSTRUCTION
Customer Service
800-969-3347
Customer Service Center
7400 Linder Ave.
Skokie, IL 60077
www.montecarlofans.com
Advertisement
Table of Contents
Related Manuals for Monte Carlo Fan Company ESSWC-10
Summary of Contents for Monte Carlo Fan Company ESSWC-10
- Page 1 ESSWC-10 WALL TRANSMITTER INSTALLATION AND OPERATION INSTRUCTION SAFETY INFORMATION AND GENERAL GUIDE READ AND SAVE THESE INSTRUCTIONS • Please read and understand this entire manual before attempting to assemble, install or operate the product. • Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70.
- Page 2 Wall Transmitter Installation and Wiring Warning: Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid electrical shock. Note: Before installing the wall transmitter, place it in OFF Switch cover position by pushing ON/OFF switch to the OFF. Ground Make series-wound connection for the wall transmitter with HOT To load...
- Page 3 REMOTE CONTROL SETTING and OPERATION The buttons on the remote control transmitter control the fan speed and light as follows. Press the button to get desired fan speed, Low to High and then High to Low cyclically. Press the OFF button to turn fan off. Fan speed will maintain last setting if turned off.
- Page 4 REMOTE CONTROL SETTING (Dimming/Non Dimming) Dimming, Non-Dimming Setting The remote controller is set with dimming function at factory. If you would make the light with on/off feature (non-dimmable). Set the fan at third speed (medium low speed), press “OFF” and “Light” buttons at the same time for more than 3 seconds.
- Page 5 Jun.2021...
