Little Hug part #4620
Box size: 46¾" H. x 31¼" W. x 6" D. Shipping Weight: 43½ lbs.
Big Hug part #4630
Box size: 46¾" H. x 31¼" W. x 6" D. Shipping Weight: 51½ lbs.

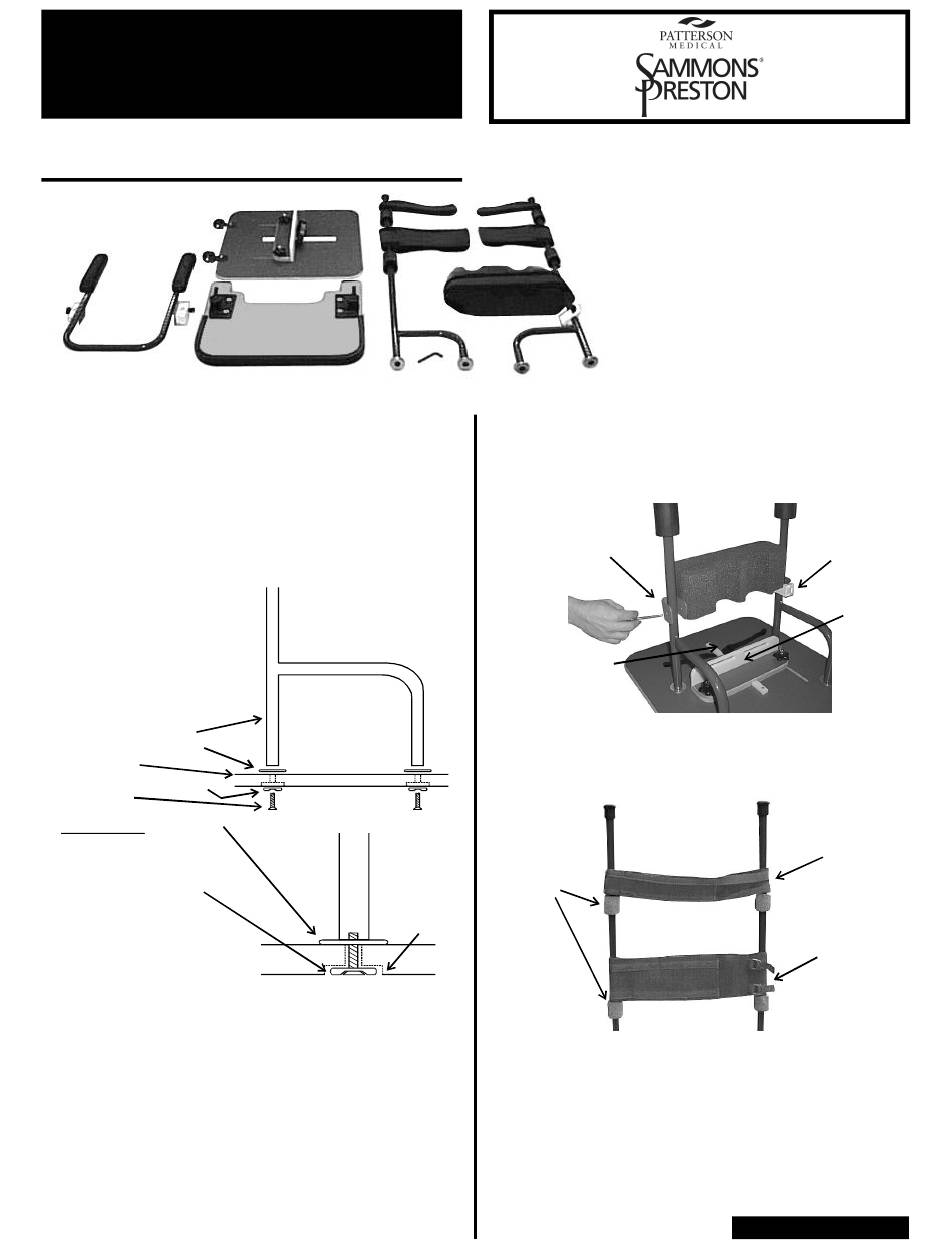

ASSEMBLY INSTRUCTIONS
Base with Casters &
Heel Rest Assembly
Arm Hoop
with Armpads
1. Unpack box and lay all the parts upon a flat surface.
2. Locate the RIGHT vertical upright. This is the upright with the two
straps AND THE KNEE SUPPORT attached to it. Using the 1/4" hex
key found in the package, loosen and detach the flat headed bolt in
both legs of the right vertical upright. You will be left with the bolt,
one countersunk washer, and one standard washer. Place these on
the floor so that you can reach them easily.
3. Using the two washers and
bolt that you removed
from each leg, attach the
vertical upright as seen in
the illustration. The correct
order (top to bottom) of
the components is:
Vertical upright
Regular washer
Base
Countersunk washer
Bolt
IMPORTANT: The Regular
washer is the wider, thin
washer that goes between
leg and base, on the top
side. The Countersunk
washer is smaller in
diameter, but thicker, and
is countersunk so the Bolt
fits flush with the underside
of the base.
Make sure that the uprights are oriented in the correct fashion (the
back of the base is the side with the casters). Repeat the process
for the left vertical upright.
4. After both uprights are securely fastened to the base, position the
stander in the upright position.
Tray with
LEFT Vertical Upright,
Attaching Brackets
F
R
O
N
T
Countersunk
Washer fit flush
with base
underside
Chest & Buttock
Support Straps
Hex Key
5. Swing the knee support assembly on the right vertical upright, to
position the knee bracket around the left vertical upright. (Fig.1)
The pin locks the assembly into place. The white rail clamp keeps
the knee support assembly in the desired vertical position. The heel
rest assembly and heel straps keep the user's feet in place.
Bracket
Heel Straps
B
A
C
K
6. The foam pads are used to keep the chest and buttock straps in the
desired vertical position. (Fig.2)
Bolt &
Foam Pad
RIGHT Vertical Upright
with Knee Support
Fig.1
Fig.2
PAGE 1 OF 2 - 08706
Rail Clamp
Heel Rest
Assembly
Chest Support
Strap
Buttock Support
Strap
