Summary of Contents for TMT Automation ChowCAM

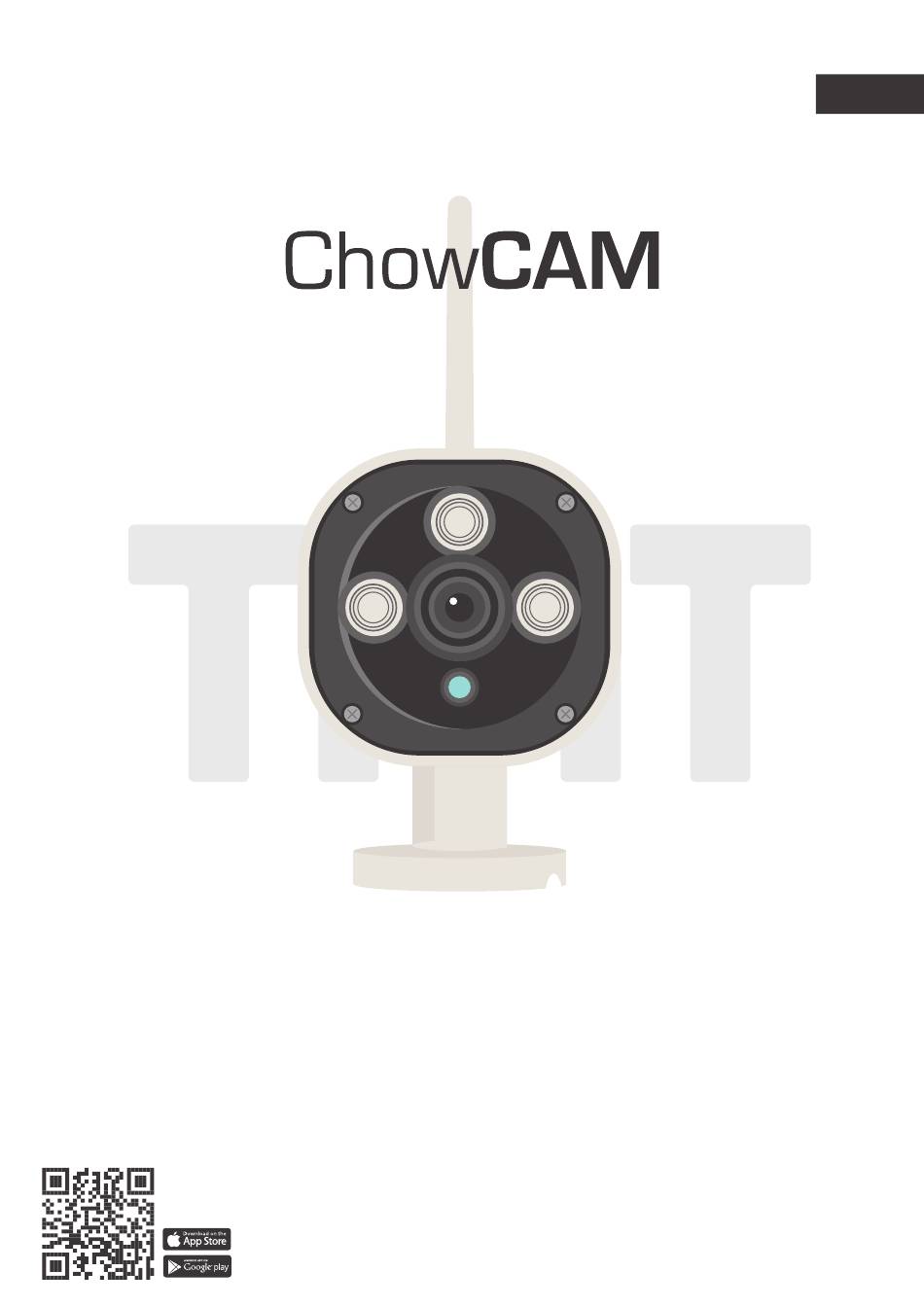

- Page 1 User Manual Wireless Outdoor IP Camera www.tmt-automation.com...
- Page 3 Index Introduction of the ChowCAM Product overview Kit contents Specifications General installation Apply for a new Chow! account Connecting ChowCAM to Chow! App Operation page Owner shares the ChowCAM to other users Push notification...
-

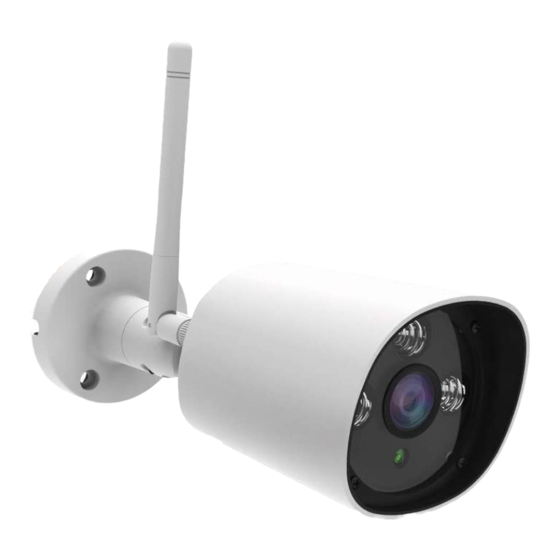

Page 4: Product Overview
Please read this manual carefully before installation. TMT Automation Inc. is not responsible for improper installation and failure to comply with local electrical and building regulations. Please keep all the components of the ChowCAM and this manual for further consultation. -
Page 5: Kit Contents
Kit contents ChowCAM Power plug Antenna Anchors with Screws Kit Cable gland Specifications Image Sensor 1/4" Color CMOS Sensor Image Sensor Display Resolution 1280 x 720 Pixels Lens 3. 6 mm Mini. Illumination 0.5 Lux Viewing Angle 110 Degree Video Image Compression H.264... -
Page 6: General Installation
General Installation Connect the power plug to the Connect the antenna to the ChowCAM. ChowCAM. Connect the power plug to a power outlet. - Page 7 Apply for a new Chow! account 1. Please scan the QR code and download the Chow! App 2. Press sign up icon and press the agree icon to continue 3. Please type the following information for registration: a. Email (enter twice for verification) b.
- Page 8 Switch to your Wi-Fi setting page on your smart phone to connect to “ChowCAM-XXXXXX” (XXXXXX is the UID of the device) . Password: 01234567 **If you can not find any accessible Wi-Fi from the ChowCAM, please refer to “Return to the default setting” in the page 13 .
- Page 9 When you are adding a new ChowCAM, the App shows ” please connect to 2. 4 GHz Wi-Fi, “ but you have already connected to ChowCAM’ s AP ***The system takes time to connect to ChowCAMs Ap.
- Page 10 After counting down, the ChowCAM will appear on the main page. Make a successful ChowCAM setup with your home Wi-Fi Suggest to bring the ChowCAM device close to the home Wi-Fi router as near as possible to receive the best Wi-Fi signal. And make sure the home Wi-Fi source is 2.
-
Page 11: Operation Page
Operation page 2020-08-07 12:40:30 IP Camera Setting Real-time view Recorded Videos (only with Mircro SD card) Motion detection... - Page 12 Choose the device you are going to share and tap next. a. The Owner can decide the permission of device sharing. A manager can share and operate this device, but a normal user can only operate it. b. One ChowCAM can only be shared to 10 users.
-
Page 13: Push Notification
Push notification Press the icon on the corner to enter the account management page. Tap the push notification setting. Turn ON the switches of the notification. ***Please go to the settings page of your smartphone, find TMT Chow! and allow the notifications***... - Page 14 Please delete the ChowCAM from Chow! App by long press the device icon. Press the reset button for 10 seconds until you hear the click sound from the ChowCAM. You can find ChowCAM’ s AP from the Wi-Fi setting page of your smart phone.
- Page 15 Make sure the Wi-Fi you selected is 2. 4 GHz. Make sure you entered the Wi-Fi password correctly. Question 4 Cannot see the view after the ChowCAM has already completed the Wi-Fi connection. Answer 4 Make sure your Wi-Fi is functional.
- Page 16 34100-213-B...
- Page 17 www.tmt-automation.com...
- Page 19 ChowCAM Chow! ChowCAM Chow!
- Page 20 ChowCAM ChowCAM Chow! Chow! App ChowCAM ChowCAM RJ45 TMT Automation Inc. ChowCAM...
- Page 21 ChowCAM 1/4 CMOS Sensor 1280 x720 0.5 Lux H.264 25fps(VGA), 25fps (QVGA) 50Hz, 60Hz, IR LEDS, 128GB ( DC 12V/1.0A -5° 50°...
- Page 22 ChowCAM ChowCAM...
- Page 23 Chow! Chow! ” ” ” ” Chow! Chow!
- Page 24 ChowCAM Chow! ChowCAM ( ChowCAM Wi-Fi "ChowCAM-XXXXXX XXXXXX" (XXXXXX 01234567 Wi-Fi ChowCAM " " ChowCAM *** Wi-Fi 1 The Wi-Fi network “ChowCam_CA2FV8”is not Wi-Fi 2 connected to the internet. Allow Wi-Fi Assistant to switch you ChowCAM *** Wi-Fi 3 to a better Wi-Fi network.
- Page 25 The Wi-Fi network “ChowCAM-CA2FV8”does not appear to be connected to the internet ChowCAM " Wi-Fi 2.4GHz" ChowCAM ChowCAMS Ap. Wi-Fi 20-30 "ChowCAM’s Wi-Fi “ *** AP ChowCAM Wi-Fi " Wi-Fi...
- Page 26 Wi-Fi PIN *** Wi-Fi 2.4GHz) "SET" Wi-Fi SSID ( Wi-Fi) *** ChowCAM ChowCAM Wi-Fi ChowCAM Wi-Fi Wi-Fi Wi-Fi 2.4GHz 5GHz Wi-Fi ChowCAM Wi-Fi...
- Page 27 2020-08-07 12:40:30 IP Camera...
- Page 28 ChowCAM . . ChowCAM 1...
- Page 29 TMT Chow!
- Page 30 ChowCAM Chow! IP Camera ChowCAM ChowCAM Wi-Fi ChowCAM ChowCAM ChowCAM Wi-Fi " "...
- Page 31 Wi-Fi SSID / Wi-Fi Wi-Fi -60dBm) ChowCAM Wi-Fi Wi-Fi 2.4GHz Wi-Fi ChowCAM Wi-Fi Wi-Fi ChowCAM...
- Page 32 34100-213-B...
