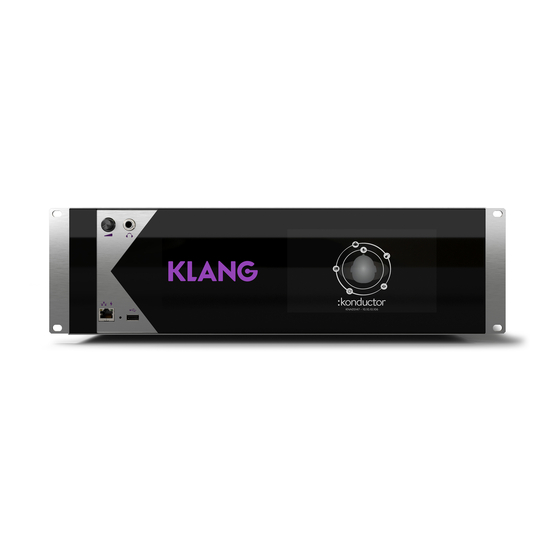

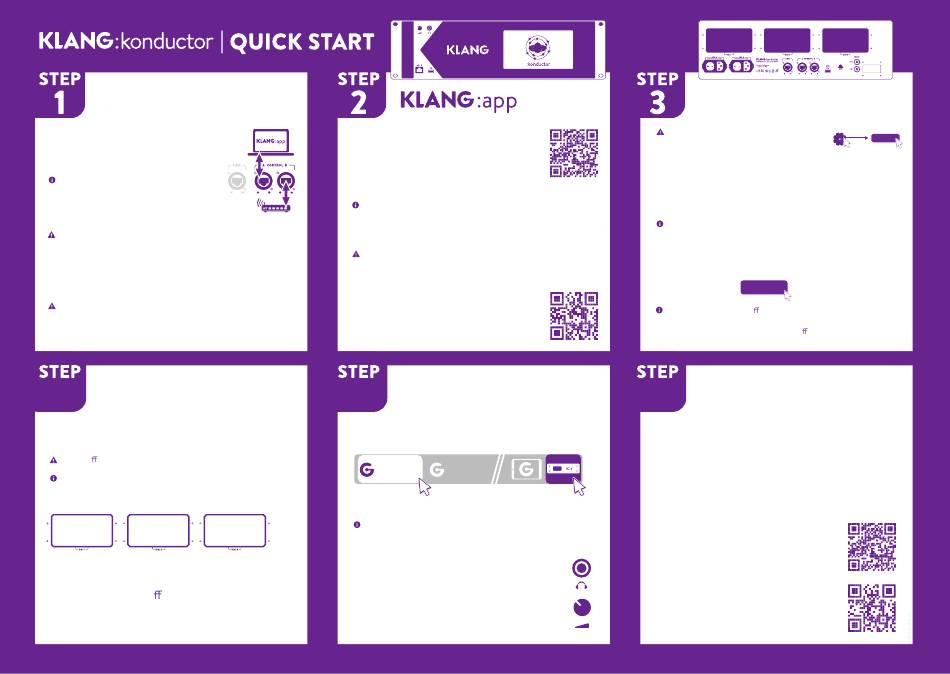

Klang konductor Quick Start

CONNECTIONS
1 Switch power on. Connect a
computer directly or via a switch to
CONTROL A.
Network activity LEDs will start to blink.
2 Connect a Wireless AP or DiGiCo
SD/Q to CONTROL B.
:konductor uses a DHCP client and will automatically
configure its IP address. Without a DHCP server reply a link-local
IP address (169.254.x.y) will be self-assigned. An additional fixed
IP address can be configured via KLANG:app (e.g. on the front
display, requires USB keyboard)
>CONFIG>INFO>Set>Set fixed IP.
As per default ALL network ports (CONTROL A/B, LINK,
Front) are connected to the same internal switch, and must
therefore not be connected externally to the same network/
switch to prevent network loops.
4
IO & ROUTING
1 Install required DMI cards,
e.g. Dante, MADI or Optocore.
Power o the device before swapping cards!
Per default DMI 1 delivers the first 64 input channels and
DMI 2 input channels 65–128. All 16 Mixes are returned to
channels 1–32 of each DMI card per default.
in: 1–64 in: 65–128 ...
mix returns mix returns mix returns
2 Go to >CONFIG>ROUTING and check
routings TO: and FROM: 3Diem. Set clock
source or apply di erent routing choices
e.g. to convert between DMI cards or to the
CUE output.
1 Download & Launch KLANG:app
www.KLANG.com/app
2
Go to CONFIG>CONNECT
choose your device.
No devices found? Check if one of the available IP addresses
of the computer as shown in KLANG:app matches the of
or SD/Q
KLANG:konductor's IP address (on touch display). Further,
check computer's network adapter for connection status.
If the computer is connected via Ethernet and WiFi to the
same network, WiFi should be disabled as running two active
network connections could interfere with the
device discovery process.
3 For the DiGiCo Console Link see:
www.KLANG.com/digico
5
PHONES & CUE
1 Activate Engineer CUE via front touch
display or KLANG:app
Mix 1
MIX:1
To CUE Out...
2
2
Select a mix to be cued
Per default the CUE output is routed to the headphone amp.
Otherwise, check and set routing as described in STEP 4.
3 Connect In-Ears or Headphones to
the front.
4
Adjust volume with the volume control
knob. Push to extend or retract.
to
Mix 2
MIX:2
1
SYSTEM SETUP
For the next steps, work in Admin mode:
Click and hold CONFIG for 3 seconds.
1 Go to CONFIG>SYSTEM:
Activate Root Intensity EQs if required.
Specify sampling rate.
(SINGLE 48kHz or DOUBLE 96kHz).
Regardless of these settings, :konductor does not reduce
the input channel count or number of mixes.
2 To apply these changes, click and hold
RESTART for 3 seconds.
RESTART
1
3sec!
This device does not o er sample rate conversion (SRC) and
must therefore run with the same sample rate as the incoming
audio stream. Or the DMI card must o er SRC itself.
6 6
ORCHESTRATE...
1 Go to CONFIG > CHANNELS
colors, icons and edit channel names.
Assign channels to individual groups.
2 Create immersive in-ear mixes using
STAGE and FADERS.
3
For further information on
setup, mixing and KLANG:app
tutorials visit:
www.KLANG.com/app
4 For KOS Software Updates visit:
www.KLANG.com/update
Admin
1 2
3sec!
and set
