SN3800 Fixed Rail Kit
This document is preliminary and subject to change.
Kit OPN
Rack Size and Rack Depth Range
MTEF-KIT-C
430-800 mm

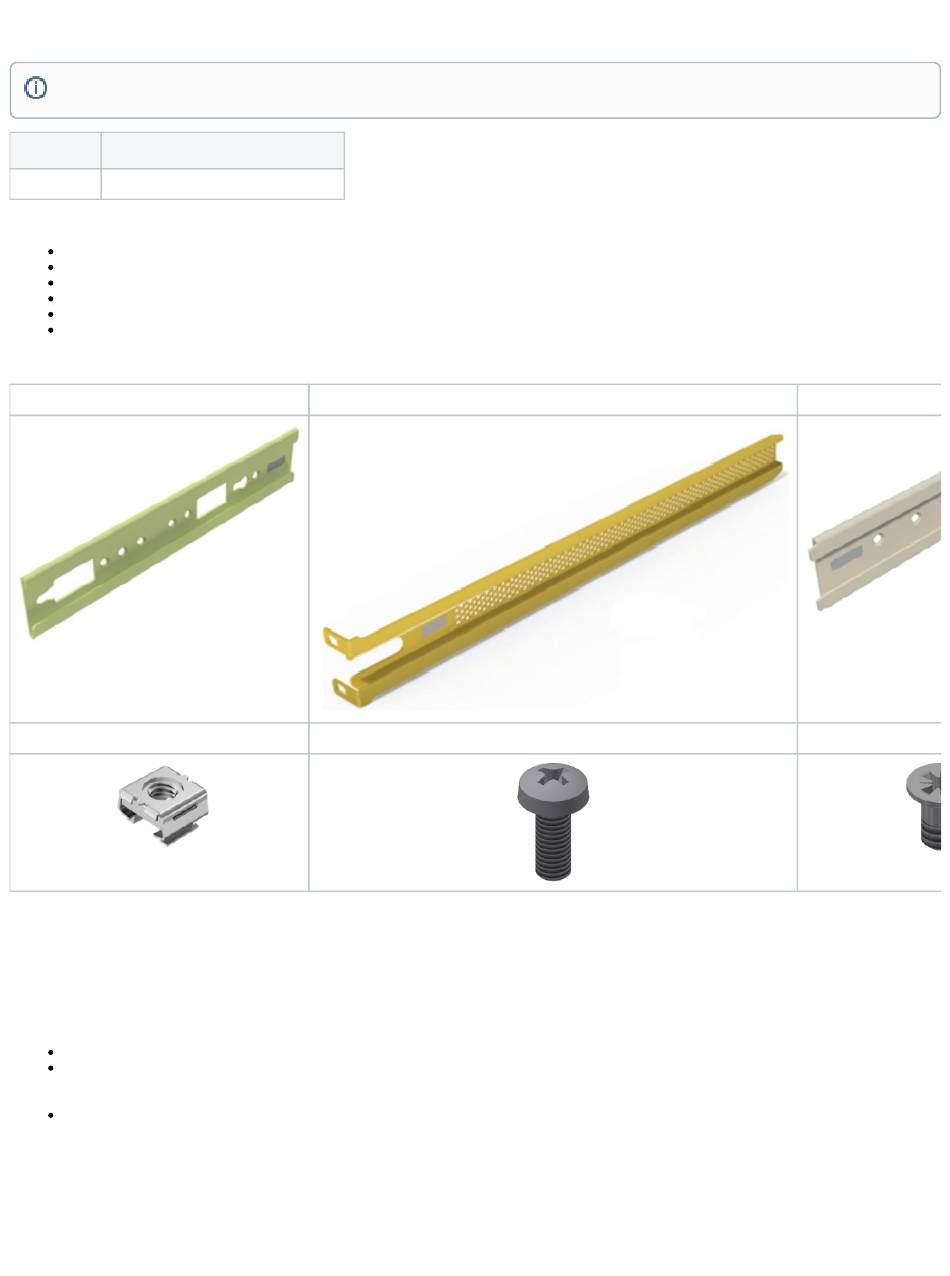

The following parts are included in the fixed rail kit (see figure below):
2x Rack mount rails (A)
2x Rack mount blades (B)
2x Rack mount ears (C)
8x M6 Standard cage nuts (D)
8x M6 Standard pan-head Phillips screws (E)
4x Flat Head Phillips 100 DEG 6-32X1/4" ST.ST PATCH 360 (F)
Rack Rail Kit Parts
Ax2
Dx8
Prerequisites:
Before mounting the system to the rack, select the way you wish to place the system. Pay attention to the airflow within the rack cooling, connector and
cabling options.
While planning how to place the system, consider the two installation options shown in the figures below, and review the following points:
Make sure the system air flow is compatible with your installation selection. It is important to keep the airflow within the rack in the same direction.
Note that the part of the system to which you choose to attach the rails (the front panel direction, as demonstrated in Option 1 or the FRUs
direction, as demonstrated in Option 2) will determine the system's adjustable side. The system's part to which the brackets are attached will be
adjacent to the cabinet.
The FRU side is extractable. Mounting the rack brackets inverted to the FRU side (Option 2) will allow you to slide the FRUs, in and out.
Short Racks (430-580 mm) Installation Options
Bx2
Ex8
Cx2
Fx4
Advertisement
Table of Contents
Summary of Contents for Mellanox Technologies MTEF-KIT-C
- Page 1 SN3800 Fixed Rail Kit This document is preliminary and subject to change. Kit OPN Rack Size and Rack Depth Range MTEF-KIT-C 430-800 mm The following parts are included in the fixed rail kit (see figure below): 2x Rack mount rails (A)
- Page 2 2. Front side (ports) Rear side (FRUs) Standard Racks (580-800 mm) Installation Options 2. Front side (ports) Rear side (FRUs) Short Racks (430-580 mm) Installation - Side View Front side (ports): Rear side (FRUs):...
- Page 3 Standard Racks (580-800 mm) Installation - Side View Front side (ports): Rear side (FRUs): To mount the system into the rack: The following steps include illustrations that show front side (ports) installation, yet all instructions apply to all installation options. Attach the left and right rack mount rails (A) to the switch, by gently pushing the switch chassis’...
- Page 4 Attaching the Brackets to the Chassis Install 8 cage nuts (D) in the desired 1U slots of the rack: 4 cage nuts in the non-extractable side and 4 cage nuts in the extractable side. Installing the Cage Nuts While each rack U (unit) consists of three holes, the cage nut should be installed vertically with its ears engaging the top and bottom holes only.
- Page 5 Slide the switch with the rails (A) and ears (C) installed on it into the left and right rails (B) on the rack. Use four M6 screws (E) to fix the rack mount ears (C) to the rack. Do not tighten the screws yet. Sliding the Blades in the Rails At least two people are required to safely mount the system in the rack.
