• AUTO-IDENTIFICATION OF AN ATTACHMENT (selector switch (204)
positioned on AUTO)
When an attachment fitted with an auto-identification sensor is installed on the
carriage, the selector switch (204) must be placed in the "AUTO" position; in this
case, the system automatically calculates the work chart for the machine +
attachment combination to define the correct index of stability, maximum

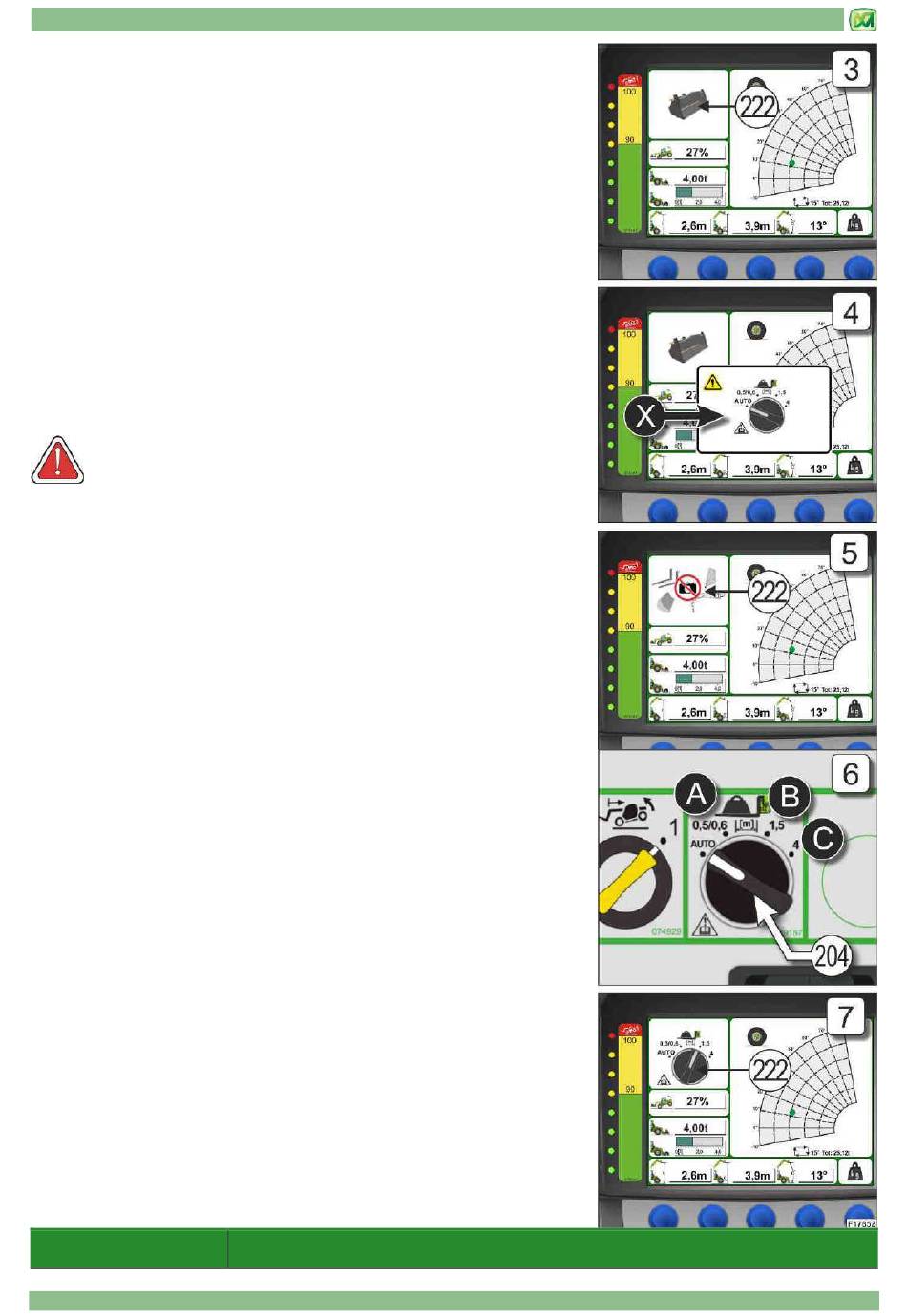

capacity and the safe working area. At this stage, field (222) displays the graphic
icon of the attachment detected (in this instance a loader) (Fig.3).
When, on the other hand, the carriage has an attachment with an auto-
identification sensor but the selector (204) is not turned to the "AUTO" position,
the following are activated:
- the red indicator of the led graphic bar (210)
- the red indicator (219) of the load position on the dynamic diagram
- the indicator light (54) on the instrument panel (C)
- the buzzer in the cab
In this case, the system immediately locks the machine's controls and centre of
the display (D) displays the window "X" with the instruction to turn the selector
(204) to the "AUTO" position (Fig. 4);
WARNING!
The equipment self-identification system is deactivated if the operating
mode selector switch (6) is on "B" position (moving on a road). In this case
turn the selector (6) to position "A" (movements enabled).
If the auto-identification system works correctly but there is no graphic depiction
of the attachment installed on the carriage, the machine signals this status with
the symbol in field (222) of the display (D) in the cab (Fig.5).
For a better understanding of the attachment auto-identification and manual
selection system, a table is provided with all the icons used in field (222) of
display (D) and their description.
• MANUAL ATTACHMENT SELECTION (selector switch (204) positioned on
0.5/0.6 or 1.5 or 4)
When an attachment is mounted on the machine's carriage that is not fitted with
an auto-identification sensor or when the system has an operating problem or
fault, the type of equipment must be defined manually using the selector switch
(204) as follows (FIg.6):
- place the selector switch (204) in position "A" (0.5/0.6) when fitting an
attachment with a centre of gravity at 0.5 - 0.6 metres in front of the carriage
- place the selector switch (204) in position "B" (1.5) when fitting an attachment
with a centre of gravity within 1.5 metres in front of the carriage
- place the selector switch (204) in position "C" (4) when fitting an attachment
with a centre of gravity within 4 metres in front of the carriage
In this way, the machine is set up to receive the selected attachment in relation
to its type, defining the work chart and calculating the correct index of stability,
maximum capacity and the safe working area. Field (222) shows the icon of the
position of the selector switch (204) (Fig.7)
If the selector switch (204) is set to AUTO and an attachment is mounted on the
machine's carriage that is not fitted with an auto-identification sensor or when the
system has an operating problem or fault, the system automatically activates the
work chart in position "C" (load centre of gravity at 4 metres from the locator on
the carriage).
