Defy DMC 6056 X Instruction Manual
  1. Manuals
  2. Brands
  3. Defy Manuals
  4. Kitchen Appliances
  5. DMC 6056 X
  6. Instruction manual

Defy DMC 6056 X Instruction Manual

10 in 1 multicooker inox
Hide thumbs
Table of Contents

Advertisement

Quick Links

DMC 6056 X
10 in 1 MULTICOOKER INOX
Page 1
Small appliance
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMC 6056 X and is the answer not in the manual?

Questions and answers

Related Manuals for Defy DMC 6056 X

Summary of Contents for Defy DMC 6056 X

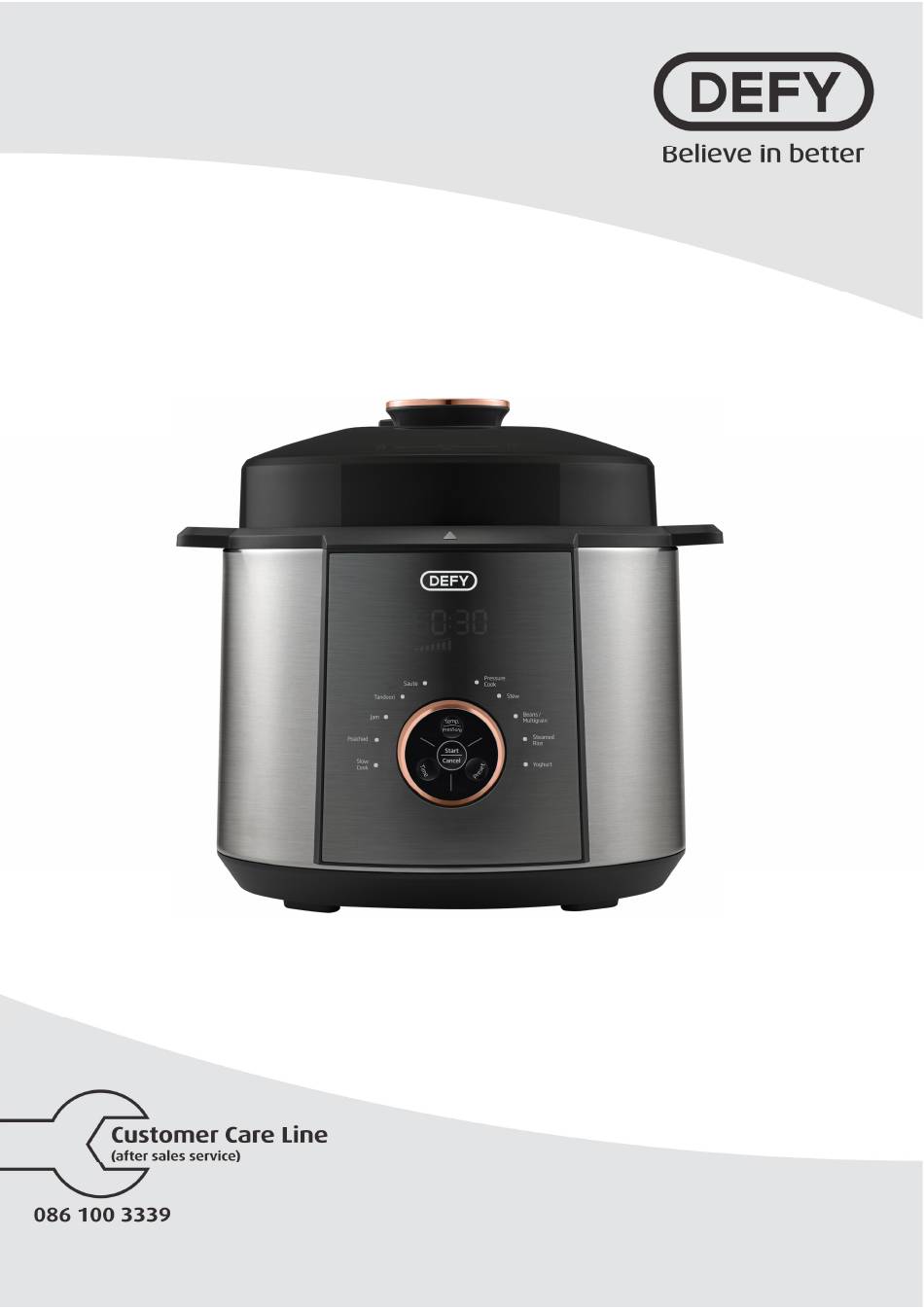

  • Page 1 DMC 6056 X 10 in 1 MULTICOOKER INOX Page 1 Small appliance Instruction manual...

  • Page 2: Table Of Contents

    CONTENT IMPORTANT SAFEGUARDS............... 3 Technical Data Of The Product ..............9 Product Structure ..................9 Instructions Before Use .................11 Prepare For Cooking ..................13 Function Selection ..................15 Operation Guidelines ................... 16 Daily Check And Maintenance ..............19 Safety Precautions ..................20 Environment For Storing The Product ............
  • Page 3 afety and set-up Please read this instruction Joint use of the same manual thoroughly prior to socket with another using this appliance! Follow appliance may cause all safety instructions in unusual heat and fire. order to avoid damages due Do not immerse the to improper use! appliance, power cord or power plug in water or in...
  • Page 4 NEVER use it in a place The maximum cooking which is near water or fire. amount shall not exceed Do not use it in a place the MAX level inside the exposed to direct sunshine inner pot. or oil splash. Keep it in a In operation, never move place out of the reach by this product and never...
  • Page 5 Before using the appliance The ducts in the pressure for the first time, clean all regulator allowing the parts which come into escape of steam should be contact with water checked regularly to carefully. Please see full ensure that they are not details in the “Care and blocked.
  • Page 6 Do not touch hot surfaces. Extreme caution must be Use handles or knobs. Use used when moving an pot holders when removing appliance containing hot lid or handling hot liquids. containers. Any servicing should be To protect against performed by an electrical hazards, do not authorized service agent.
  • Page 7 It is prohibited to modify or When there is foreign repair the unit by an object between the inner unqualified technician as pot bottom and heating this may cause fire or plate, first remove the electric shock. Please foreign object before send it to a designated using.

  • Page 8: Important Safeguards

    IMPORTANT SAFEGUARDS Caution The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.

  • Page 9: Technical Data Of The Product

    Technical Data Of The Product Size of Working Keep Warm Model Capacity Power Supply Rated Power Inner Pot Pressure Temperature 220-240V~ 140° F~176° F DMC 6056 X 5.5 L 1100W 8.66" 80kPa 50/60Hz Power Cord Spoon Soup Spoon User Manual Measuring cup Accessories...

  • Page 10: Instructions Before Use

    Product Structure Structural diagram of float valve Tips: 1. Confirm that the float valve, block proof cover and seal ring are correctly installed before use each time; 2. Before putting the inner pot into the cooker each time, please remove the dirt and water from the external side of the inner pot and internal side of the external pot;...
  • Page 11 Instructions Before Use Operation Large digital screen Small digital screen Pressure Holding or Cooking Time Adjustment: First, turn the knob to select the required function, then press the “Time” key, and then adjust the required pressure holding time or cooking time by turning the knob.
  • Page 12 Instructions Before Use Disassemble and install the block proof cover and seal ring Disassemble and install the block proof cover 1. Check if the seal ring and block proof cover are Disassemble Install correctly installed in the upper cover before use Pull it out upwards Press it down to install each time.

  • Page 13: Prepare For Cooking

    Prepare For Cooking 1 Opening the lid correctly • Holding the lid handle with your hand, rotate approximately 30 degrees counterclockwise until the lid is in the open position, then lift the lid up to open. 2 Check if the parts and accessories of lid are correctly installed •...

  • Page 14: Function Selection

    Function Selection 6 Switch the exhaust valve properly • When working, please turn the exhaust valve Sealing schematic Exhaust schematic to the sealing position, to ensure a good seal. diagram diagram • For manual exhaust, please turn the exhaust valve handle to the exhaust position, the electric pressure cooker keeps at the exhaust state;...
  • Page 15 Function Selection Safely open the lid 1. Make sure the pressure cooking program has completed or press “Start/- Cancel” key to terminate the program. 2. Release pressure in one of the following ways. Quick Release: Press the “Steam Release ” key on the lid handle to let out steam until the float valve drops down.

  • Page 16: Operation Guidelines

    Operation Guidelines Function Operation Guidelines After supplying power, the default is standby state, the digital Standby screen flashes “----” 1. Normal cooking: Turn the large knob to the corresponding menu icon and icon lights up, the digital screen displays the pressure- holding time of the current menu;...
  • Page 17 Operation Guidelines Function Operation Guidelines 1. Normal cooking: Turn the large knob to icon lights up, the large digital screen displays the pressure-holding time of the current menu; Press the “Temp/Pressure” key, turn the large knob to adjust the pressure. Refer to the pressure icon , the more pressure bars, the greater the pressure, and vice versa;...
  • Page 18 Operation Guidelines Function Operation Guidelines 1. Normal cooking: Turn the knob clockwise until the icon light is on, and the large digital screen displays “6:00”, indicating that the cooking time is 6 hours. Press the “Time” key, then turn the knob to set the cooking time;...

  • Page 19: Daily Check And Maintenance

    Operation Guidelines Function Operation Guidelines countdown is completed, the cooking is completed, and the buzzer sounds 10 times. Cake 2. Exit current working status: Press and hold the “Start/Cancel” key for 2 seconds to exit the current working status. 1. Normal cooking: Turn the knob clockwise until the icon lights up, the small digital screen displays 160 °C, and the large digital screen displays “0:30”, indicating that the pressure-holding...

  • Page 20: Safety Precautions

    Safety Precautions To avoid personal injury and property loss, be sure to observe the following safety precautions. • Meanings of the symbols: Disassembly General Wet hands Forbid Forbidden Forbidden “Forbidden” items Contact Spray Water Forbidden Forbidden Must be Remove the “Mandatory”...
  • Page 21 Safety Precautions Warning Stop using if the power cord is damaged • Replace the damaged power cord with special soft cord or replace it with special assembly purchased from the manufacturer or authorized repair center. Do not place foreign objects •...
  • Page 22 Safety Precautions Warning Check periodically • Be sure to check the block proof cover and exhaust valve core periodically to make sure that they are not be blocked; • Do not cover the exhaust valve with a heavy object or replace it with any other object.
  • Page 23 Safety Precautions Caution When the cooker is working, please do not touch the lid • When the cooker is working, lid has high temperature, do not touch it; • It may cause scalding if touched. The total amount of food and water can not exceed Max scale •...

  • Page 24: Environment For Storing The Product

    Environment For Storing The Product • Periodically clean the cooker and remove oil and dirt if it is stored on the table. • Place the electric pressure cooker 30cm away from other kitchen appliances. Clean After Use 1. Clean after each use. 2.

  • Page 25: Troubleshooting

    Troubleshooting Reason Solution Problem Sealing ring not installed properly Position the sealing ring well Difficult to close the lid The floater valve clamps the push Lightly push the push rod Float valve in the popped-up Press the float valve lightly with position a chopstick.
  • Page 26 Plot 1606, Sheki Sheki Road Monument Business Park P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig, Bloemfontein Tel: +260 0211 242332/3 Bloemfontein.Service@defy.co.za Fax: +260 0211 242933 sgiservicecentre@microlink.zm CAPE TOWN 5A Marconi Rd. Montague Gardens, 7441 NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O.
  • Page 27 Point 1 of this Certificate. 6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact your nearest Defy office. Please refer to the previous page for respective South African branches and Sub-Saharan Africa branches.
