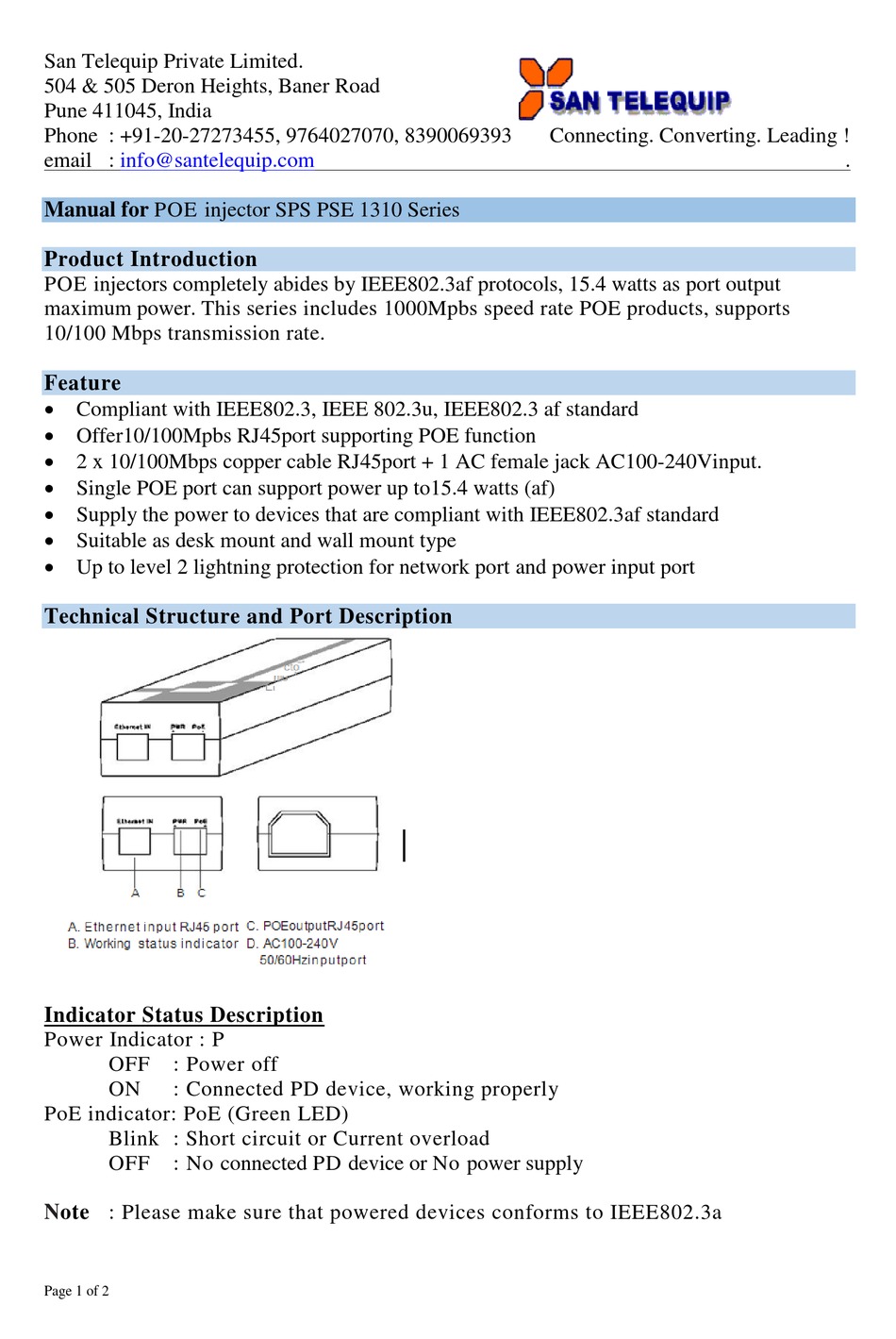

San Telequip SPS PSE 1310 Series Quick Start Manual

San Telequip Private Limited.
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : +91-20-27273455, 9764027070, 8390069393
email : info@santelequip.com

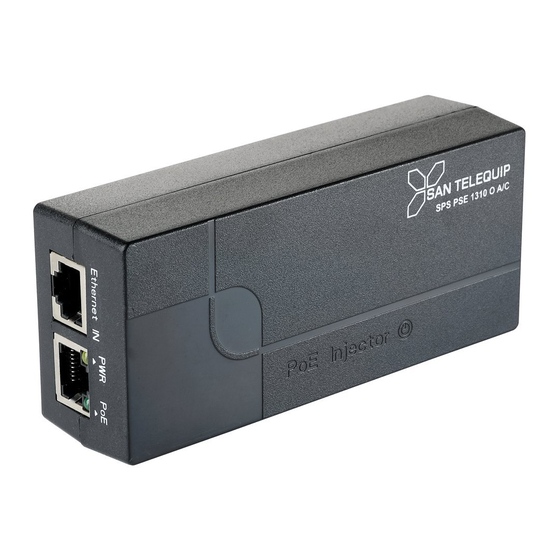

Manual for POE injector SPS PSE 1310 Series

Product Introduction

POE injectors completely abides by IEEE802.3af protocols, 15.4 watts as port output
maximum power. This series includes 1000Mpbs speed rate POE products, supports
10/100 Mbps transmission rate.

Feature

 Compliant with IEEE802.3, IEEE 802.3u, IEEE802.3 af standard
 Offer10/100Mpbs RJ45port supporting POE function
 2 x 10/100Mbps copper cable RJ45port + 1 AC female jack AC100-240Vinput.
 Single POE port can support power up to15.4 watts (af)
 Supply the power to devices that are compliant with IEEE802.3af standard
 Suitable as desk mount and wall mount type
 Up to level 2 lightning protection for network port and power input port

Technical Structure and Port Description

Indicator Status Description

Power Indicator : P
OFF : Power off
ON : Connected PD device, working properly
PoE indicator: PoE (Green LED)
Blink : Short circuit or Current overload
OFF : No connected PD device or No power supply
Note : Please make sure that powered devices conforms to IEEE802.3a
Page 1 of 2
Connecting. Converting. Leading !
.
