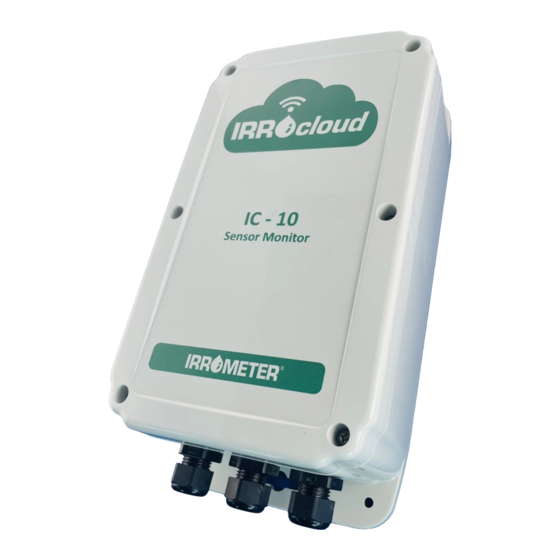

IC-10 Sensor Monitor Guide
Device ID: _______________________________________
*IMPORTANT* This Device ID will be required to register your device. If
installing multiple devices, make sure to note which ID's are installed in each
location.
The IC-10 is a cellular device reporting to IRROMETER's IRROcloud platform.
Reliable cellular service is required in the area of installation for proper
operation.
Additional information about using the IRROcloud platform, sensor
interpretation, wire extension requirements, and troubleshooting can be
found on the home page of IRROcloud by clicking on the IRROcloud icon in the
upper left.
www.irrocloud.com
IRROcloud Registration
We recommend registering your device prior to installation to allow for quick
validation of communication once installed. If this is your first IC-10, you will
need to create an account on the IRROcloud platform:
Go to
www.irrocloud.com
and select the "Create New Account" option in the
lower right of the login screen. Follow the prompts to create and then activate
your new account. A valid email address will be required.
Once your account is created, or you already have an existing account, you will
need to add this device to your account. Login, go to the main Dashboard page,
click on the "Register New Device" link in the upper left of the device list.
Input the device ID code from above and choose confirm. The IC-10 will now be
added to your account and will be visible on the device list.
p1
Advertisement
Table of Contents
Summary of Contents for IRROMETER IRRocloud IC-10
- Page 1 *IMPORTANT* This Device ID will be required to register your device. If installing multiple devices, make sure to note which ID’s are installed in each location. The IC-10 is a cellular device reporting to IRROMETER’s IRROcloud platform. Reliable cellular service is required in the area of installation for proper operation.
- Page 2 Sensor installation may require a 7/8" (22 mm) diameter bar (or 1/2" IPS pipe) or an IRROMETER Coring Tool, Auger, or Slide Hammer Tool. The IC-10 can be mounted on a pole or post with the provided screws. Secure with holes at the top and bottom flanges.
- Page 3 Sensors must be installed in the root zone either vertically or up to a 45° angle. Using a 7/8" (22 mm) diameter bar (or 1/2" IPS pipe) or an IRROMETER Coring Tool or Slide Hammer Tool, make a hole to the desired depth. With hard or rocky soil, a larger hole can be made with a soil auger.
- Page 4 24"-36" (60-90 cm) is best. WARRANTY: The IRROMETER COMPANY warrants its products against defective workmanship or materials under normal use for one year from date of purchase. Defective parts will be replaced at no charge for either labor or parts if returned to the manufacturer during the warranty period.
