Summary of Contents for Athlon CF Series

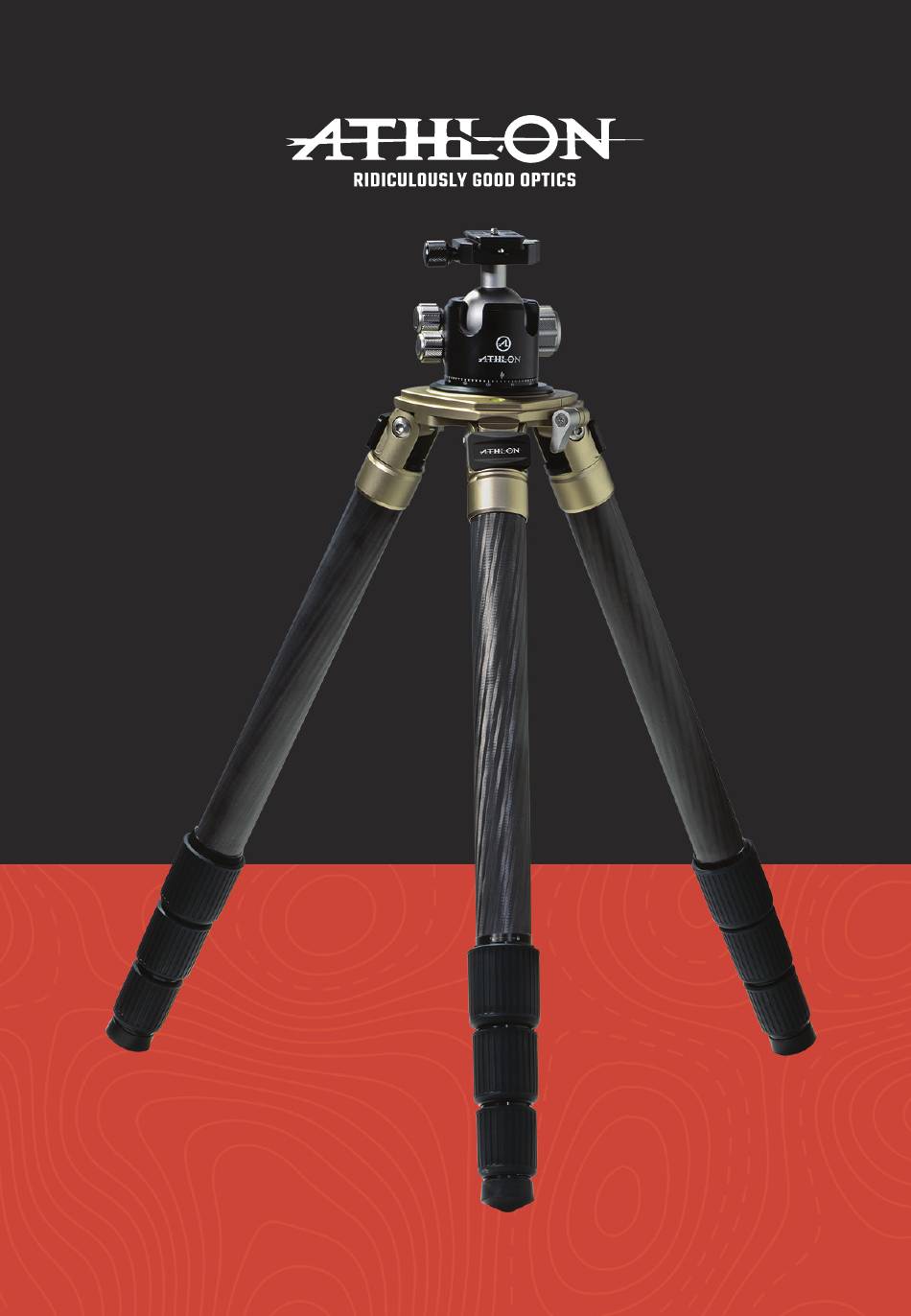

- Page 1 Tripod & Ball Head User Manual and Care Instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENT INCLUDED ACCESSORIES TRIPOD Leg Angle Adjustment ............6 Leg Section Length Adjustment ..........7 LEG WRAPS Installing Spike Feet ..............8 WITH MOLLE Attaching/Removing A Head ..........9 BALL HEAD SHOULDER PAD Tilt ...................10 Pan ..................11 Friction Control ...............12 Attachments ................13 LEVELING HEAD TRIPOD HAMMOCK... - Page 3 BUBBLE LEVEL QUICK-RELEASE BUBBLE LEVEL PLATE QUICK-RELEASE LOCKING KNOB LOCKING LEVER QUICK RELEASE BUTTON LEG ANGLE CATCH QUICK-RELEASE PLATE BASE FRICTION CONTROL BALL HEAD LOCK INTERCHANGEABLE FLUID PAN WITH INCLUDED LOCK SPIKED FEET LEG LOCKS COUNTERWEIGHT HOOK In unstable or windy conditions, hang addition weight to dampen vibrations.
-
Page 4: Leg Angle Adjustment
LEG ANGLE ADJUSTMENT LEG SECTION LENGTH ADJUSTMENT Each of the four tripod leg sections can be adjusted to three Each of the four tripod leg sections can be adjusted to different angles, 80º, 55º or 25. º different tripod height. To adjust the angle of the legs: To adjust the length of a leg section: Pull the Leg Angle Catch out and adjust the leg to the... -
Page 5: Installing Spike Feet
INSTALLING SPIKE FEET ATTACHING/REMOVING A HEAD The Midas Tripod comes with spike feet that can be To mount a head to the tripod: installed for use on soft grounds and/or difficult terrain to provide more stability. Flip up the Locking Lever on the tripod to unlock. Press and hold the Quick-Release Button and insert the To install the spike feet: head into the tripod. -
Page 6: Tilt
TILT The ball head can be tilted in differenct angles and vertical The ball head can be adjusted to pan left and right while orientation to position your optics for best viewing. maintaining the desired ball head angle/orientation. Twist the Ball Head Lock knob to adjust different angle To use the Fluid Pan Lock knob: positions and orientation. -
Page 7: Friction Control
FRICTION CONTROL ATTACHMENTS Friction Control adjusts the ball tension. This is useful Adjust the Quick-Release Locking knob during fast paced transitioning as it allows you to pan counter-clockwise to remove the Quick-Release Plate. and tilt the ball head when the Ball Head Lock is in the Align the plate to your accessory. -
Page 8: Leveling Head Installation
To insert the leveling head into the tripod, follow the same Your Athlon product is not only warranted to be free of procedure used for the ball head (see page 9). defects in materials and workmanship for the lifetime of the product. - Page 9 SHARP, TIGHT AND PRICED JUST RIGHT! 1.855.913.5678 CONTACT@ATHLONOPTICS.COM 801 N MEADOWBROOK DR. OLATHE, KS 66062 A T H L O N O P T I C S . C O M...
