The PCI MAX PC fm transmitter card can also be used in stand-alone mode, without the PC. To accomplish this one needs the LCD control
unit and an appropriate enclosure. Since the new 2007+ model boosts substantially more power than the old PCI MAX 2006+ we now bring
you the new CyberMax Micro 2+ enclosure with integrated mini fan which will easily handle even the Platinum cards.
Specifications:
- Supports mini LCD display and PCI MAX 2007+ cards at all power levels
- Integrated 40x40mm fan (not needed for 500mW and LPFM model)
- D9 RS232 connector for easy connection to RDS daughter board
- On/off switch
- Place for future expansion board and holes for optional MPXin-MPXout BNC connectors
- Size: 165mm (W) x 155mm (D)
Why is this CYBER MAX MICRO II case so great?
You may prefer to run PCI MAX 2007+ without the transmitter. This card than becomes a portable high-
performance mini transmitter with incredible stereo sound and RDS capability, suitable for a wide array of
applications. With a suitable antenna it easily covers up to a few miles and can even operate from the car battery. A
relatively modest additional investment is rewarded with portability, convenience and peace of mind.

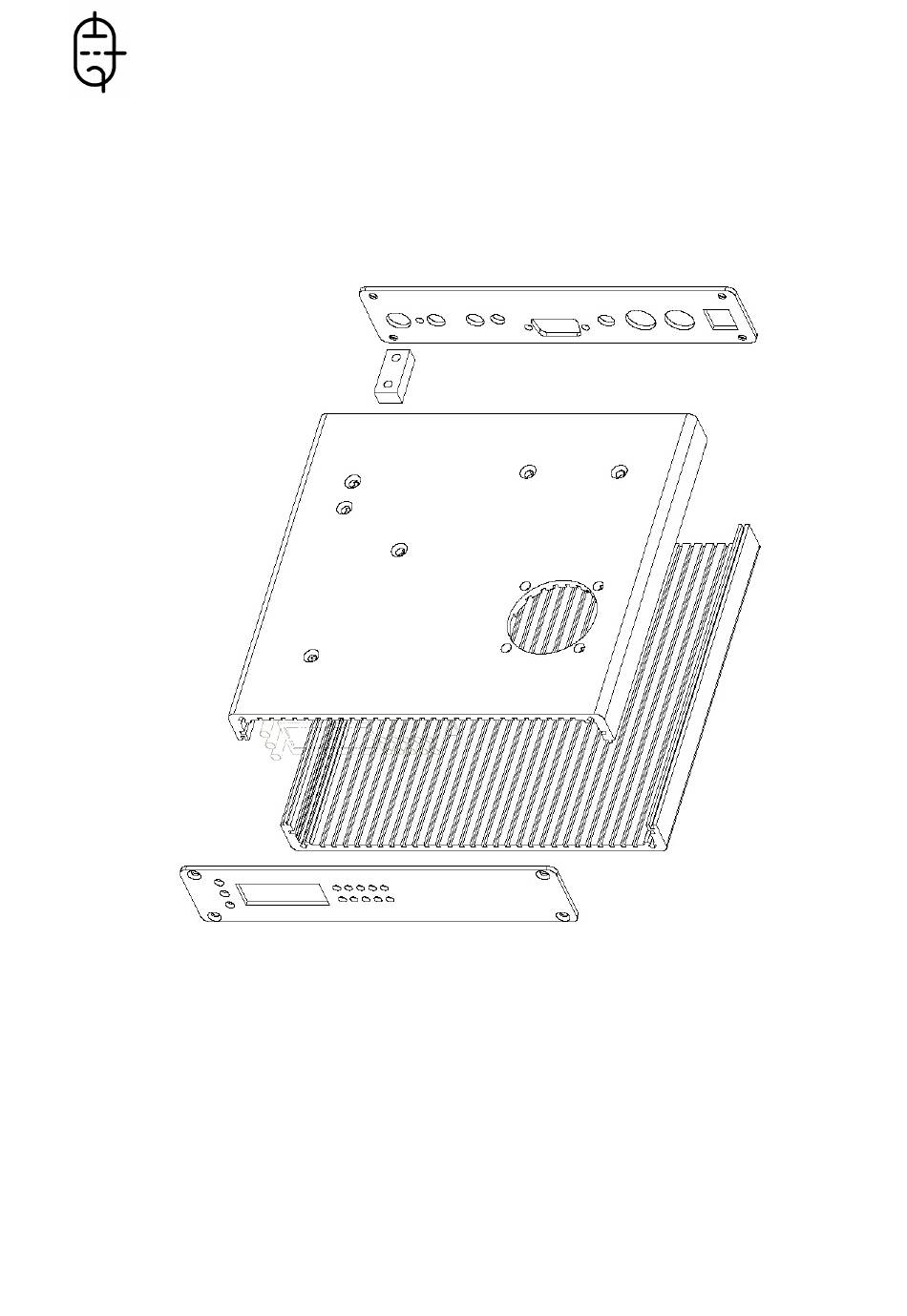

CYBERMAX MICRO 2+
Stand-alone enclosure for PCI MAX 2007+ fm transmitter card
Advertisement
Table of Contents
Related Manuals for PCS Electronics CyberMax Micro 2
Summary of Contents for PCS Electronics CyberMax Micro 2
- Page 1 Since the new 2007+ model boosts substantially more power than the old PCI MAX 2006+ we now bring you the new CyberMax Micro 2+ enclosure with integrated mini fan which will easily handle even the Platinum cards.
- Page 2 We hope you will enjoy it as much as we do and remember to tell your friends about it. Please feel free to leave your comments at our website or post your experience in our forum. From all of us we wish you happy broadcasting! PCS Electronics team www.pcs-electronics.com BEFORE YOU START...
- Page 3 PUTTING IT ALL TOGETHER… The list above may seem a bit overwhelming, but the process is quite straight-forward and relatively easy. Even beginners with limited skills should be able to put it all together in an hour. Step 1 – Install the tiny fan, making sure the finger guard is at the external side of the enclosure and the fan is inside, as shown on the photo below.
- Page 4 Step 4 – Wire the connectors and switches. First connect the LCD control module to the PCI MAX card with the flat cable. Try to arrange the cable nicely. Next, remove the jumper close to the power jack and install the wires leading to the ON/OFF switch.
- Page 5 (recommended). You’re done! Your CyberMax Micro 2+ should look something like the above. Now if you only had the new 15W booster+ in the same type of enclosure to go with it :) TROUBLESHOOTING We hope you’ll never get to this step.
- Page 6 USING THE CYBERMAX MICRO 2+ Please see the manual for the mini LCD control unit for instructions (freely available from our website).
- Page 7 PRODUCT or U.S. $5.00; because some states and jurisdictions do not allow the exclusion or limitation of liability, the above limitation may not apply to you. ALSO AVAILABLE FROM PCS ELECTRONICS We also carry a big range of:...
