Summary of Contents for Graymills Tempest T-10

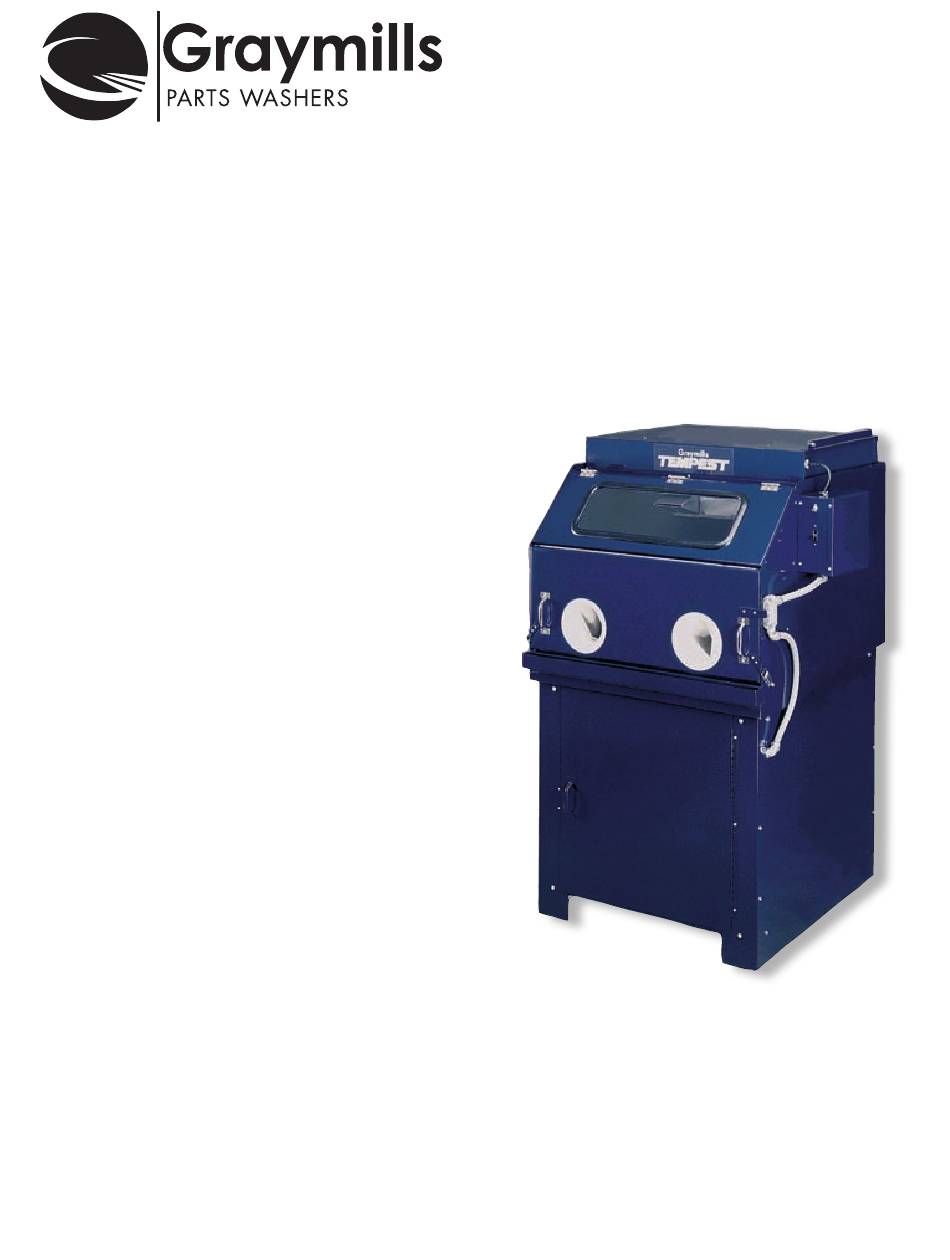

- Page 1 795-90914 0812 Operation and Maintenance Instructions Tempest Jet Spray Cabinet ™ T-10, T-10S and T-20S...
- Page 2 • If you have any questions regarding the correct cleaning fluids Never operate unit with a cleaning solution reservoir level below to use in this unit, call graymills at 773-248-6825 and ask for minimum or activate heater when it is not immersed in liquid. Customer Service. we recommend our low foaming aquatene ™.
- Page 3 Not operate unit without a filter bag. 3, p.5) Inspect heating element daily. Any foreign material should be removed 4. Graymills recommends use of pail liners as a means of simplifying by gently scrubbing. liquid changes and insuring reservoir’s long life Do NOT neglect cleaning of the heating element.
- Page 4 • Close spray chamber door and secure door hasps release lever on locking cube (Fig. 7, p.5). Properly dispose of any solid waste accumulation, rinse bag in water, and re-attach to drain • Place hands in gloves, secure the part, grip spray hose firmly, pipe. direct hose at parts and depress foot pedal to activate spray. Adjust nozzle for desired spray pattern.
- Page 5 Make sure that the belt is placed behind the belt scraper. To avoid belt damage and to provide the longest service life, do not over stretch the belt. Replacement belts (775-91995) may be ordered by calling Graymills Customer Service. figure 6 figure 5...
- Page 6 Tempest T-10, T-10S Parts List ™ Ref# Part No Description Ref# Part No Description electrical door & water Containment Systems (continued) 770-07011 Door Safety Switch (Push Type) 745-07046 Hinge Seal Gasket (37” required) 770-04190 Main Control Switch 764-02614-11 Hinge Gasket, End Support (Mylar) 770-07024 Foot Pedal 2.5”...
- Page 7 Tempest T-20S Parts List ™ Ref# Part No Description Ref# Part No Description electrical door & water Containment Systems (continued) 770-07011 Door Safety Switch (Push Type) 745-07046 Hinge Seal Gasket 770-04190 Main Control Switch 745-91198 Seal, P-Shaped, 36” long 770-07024 Foot Pedal 603-28730 Door Gasket...
- Page 8 Buyer remedies (except to title), are solely and exclusively stated herein. assume any liability for equipment selection, adaptation, or installation. In no case will graymills be liable for consequential damages, loss of production, or any other loss incurred due to interruption of service.
