Behlen Country Magnum Painted Kennel Quick Start Manual

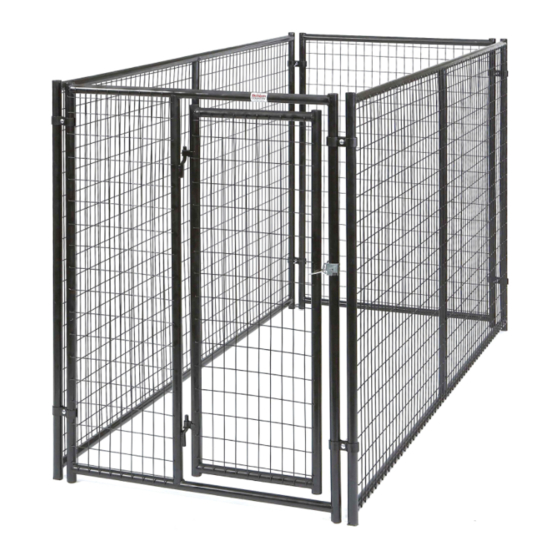

Magnum Painted Kennel
Behlen Country has been in the business of providing quality equipment for more than 80
years. Our equipment will provide many years of service when maintained by the owner and
used in accordance with the capabilities of the product. For questions about this product, or
for parts inquiries, please contact our Customer Service Center listed below.
NOTE: Bottom of kennel has
1½" clearance to ground.
Do NOT install plugs in
bottoms of panels or door to
prevent holding water.

LATCH COMPONENTS

Part No. Description
2208055 Latch, U-Clamp
2208056 Latch, Flipper
2688056 Nut
1328314 Bolt
F- 20557-6
THANK YOU FOR PURCHASING THIS PRODUCT

Typical Plug Installation.

Insert plugs in top (only) of
kennel panels and door at
circled locations as shown
at left.
Qty.
1
1
1
1
CUSTOMER SERVICE CENTER
PO Box 569
Columbus, NE
68602-0569
TECHNICAL INFORMATION 70124

Hardware Kit

38900117

Typical Dog Kennel Setup

The Latch comes installed
from the factory but may be
adjusted to any height by
loosening the nut, adjusting
to desired height and re-
tightening the nut.
TYPICAL CLAMP
SETUP
To attach panels,
one side of the
clamp will have
to be inserted
between the wire
and the vertical
tube before the
other side of the
clamp can be
attached. A clamp
should be attached
(as shown at left)
one at the top and
one at the bottom
of each panel.
Ph: 800-447-2751
Fax: (402) 563-7447
www.behlencountry.com
Rev. 4-24-17 12-12-07
