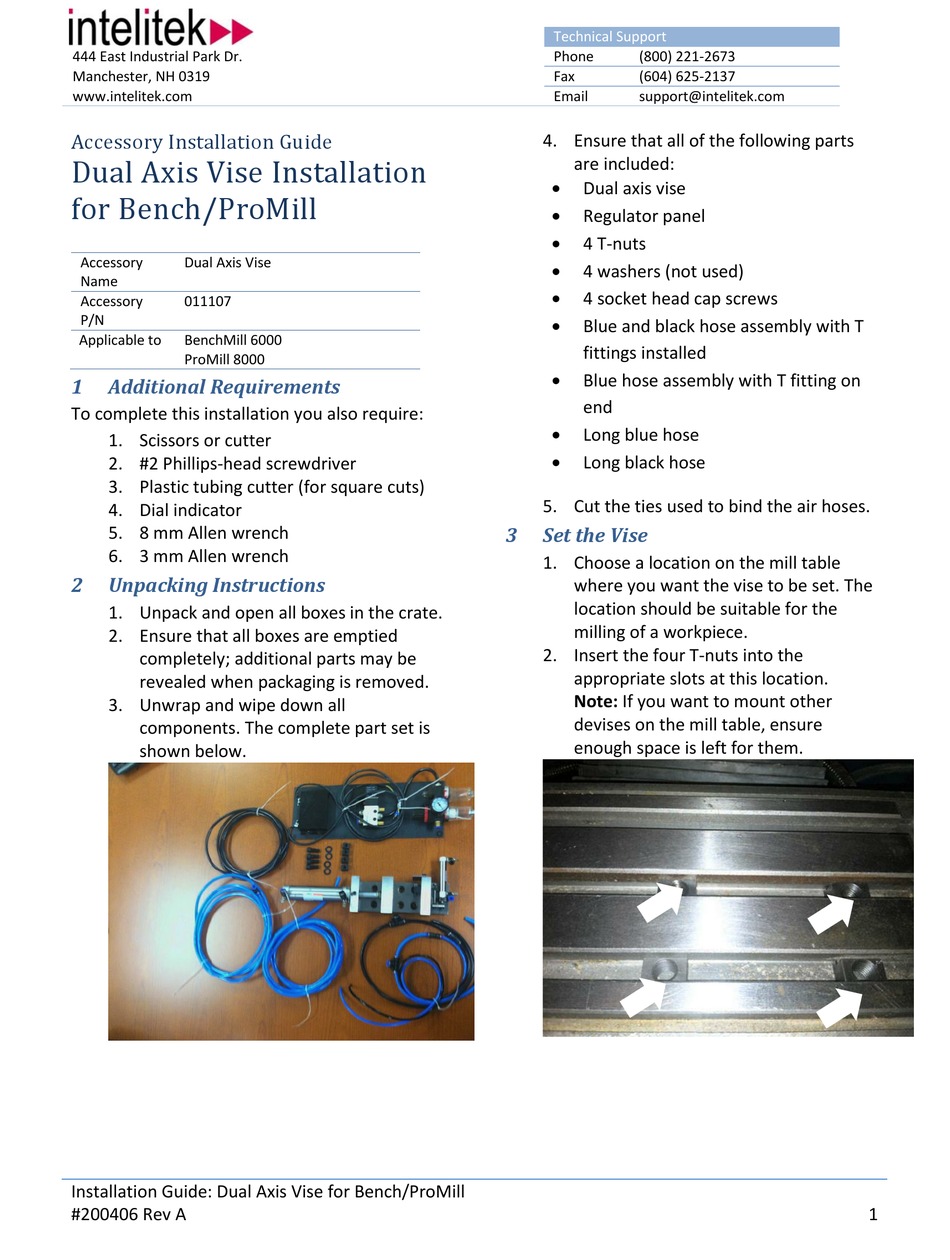

Intelitek Dual Axis Vise Accessory Installation Manual

444 East Industrial Park Dr.
Manchester, NH 0319
www.intelitek.com
Accessory Installation Guide
Dual Axis Vise Installation
for Bench/ProMill
Accessory Dual Axis Vise
Name
Accessory 011107
P/N
Applicable to BenchMill 6000
ProMill 8000
1

Additional Requirements

To complete this installation you also require:
1. Scissors or cutter
2. #2 Phillips-head screwdriver
3. Plastic tubing cutter (for square cuts)
4. Dial indicator
5. 8 mm Allen wrench
6. 3 mm Allen wrench
2

Unpacking Instructions

1. Unpack and open all boxes in the crate.
2. Ensure that all boxes are emptied
completely; additional parts may be
revealed when packaging is removed.
3. Unwrap and wipe down all
components. The complete part set is
shown below.
Installation Guide: Dual Axis Vise for Bench/ProMill
#200406 Rev A
0.
Technical Support
Phone (800) 221-2673
Fax (604) 625-2137
Email support@intelitek.com
4. Ensure that all of the following parts
are included:

Dual axis vise

Regulator panel

4 T-nuts

4 washers (not used)

4 socket head cap screws

Blue and black hose assembly with T
fittings installed

Blue hose assembly with T fitting on
end

Long blue hose

Long black hose
5. Cut the ties used to bind the air hoses.
3

Set the Vise

1. Choose a location on the mill table
where you want the vise to be set. The
location should be suitable for the
milling of a workpiece.
2. Insert the four T-nuts into the
appropriate slots at this location.
Note: If you want to mount other
devises on the mill table, ensure
enough space is left for them.
