MozeGear Mini Papi Instructions

Hide thumbs
1
2

Advertisement

Table of Contents

At just 4 cubic inches and 4 ounces, the Mini Papi is a tiny pre amp with a lot of punch. It is designed to fit on the smallest of
cameras (such as the Alexa Mini or RED), and also in the smallest of sound bags. Although it is small, it has a quality and design
features of larger, more expensive pre amps. It has a wide dynamic range that offers a full sounding low end. The gain control has
72dB of gain with 55dB of range. There are 2 limiters, a continuously variable bass-cut, switchable output level, isolated power
supply, front end RF filter, chassis mounted connectors, alternate usb powering, and 48 volt phantom power that will power even
the hungriest of mic's. The Mini Papi is a new generation of portable Pre Amps. It offers near studio sound and multiple features in
a tiny size!

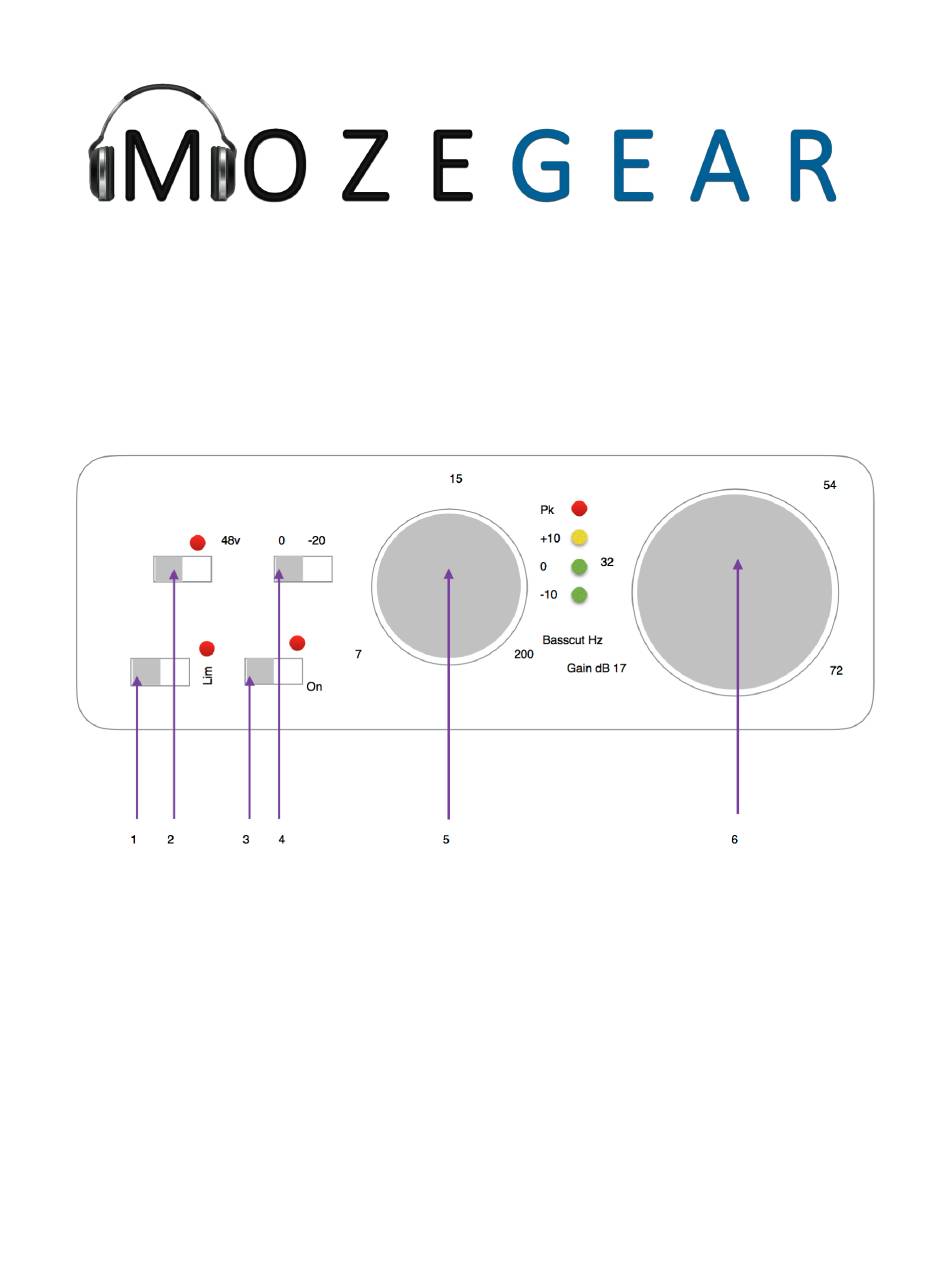

Mini Papi Layout and Instructions

1 - Limiter ON/OFF switch - If you shift the switch to the left, it will disable the limiter. Shifting to the right will enable the limiter. The
LED will illuminate when the limiter is working. The Peak LED will light about 2dB before clipping.
There are 2 limiters that have been designed into the Mini Papi to significantly reduce the possibility of clipping. The Front-end
Limiter limits the signal early in the chain while the Back-end Limiter limits the output level from getting too high.
2 - Phantom Power ON/OFF switch - When you shift the switch to the left it will turn the Phantom Power OFF. Shifting the switch
to the right will turn Phantom Power ON and the LED will illuminate.
3 - Papi ON/OFF switch - Shifting the switch to the left will power the unit OFF; shifting right will turn the unit ON. The LED
illuminates when the unit is powered ON.
4 - Output Attenuator - When the switch position is to the left, the output is at 0dBu when the "0" LED is illuminated. Shifting the
switch to the right reduces the output level by 20 dB ("0" LED refers to -20dBu).
Mozegear
33 Hammond Suite 210 Irvine, CA 92618
949-273-6699 (273-mozy)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Papi and is the answer not in the manual?

Questions and answers

Summary of Contents for MozeGear Mini Papi

  • Page 1 At just 4 cubic inches and 4 ounces, the Mini Papi is a tiny pre amp with a lot of punch. It is designed to fit on the smallest of cameras (such as the Alexa Mini or RED), and also in the smallest of sound bags. Although it is small, it has a quality and design features of larger, more expensive pre amps.
  • Page 2 6 - Rotary Gain knob - The Mini Papi has 72 dB of Gain with a range of 55dB. There are 4 LED indication lights located to the left of the Gain control. They show how much output the Mini Papi is producing. The numbers to the left of the LED’s denote the levels.
