Serial Bar Code Scanner

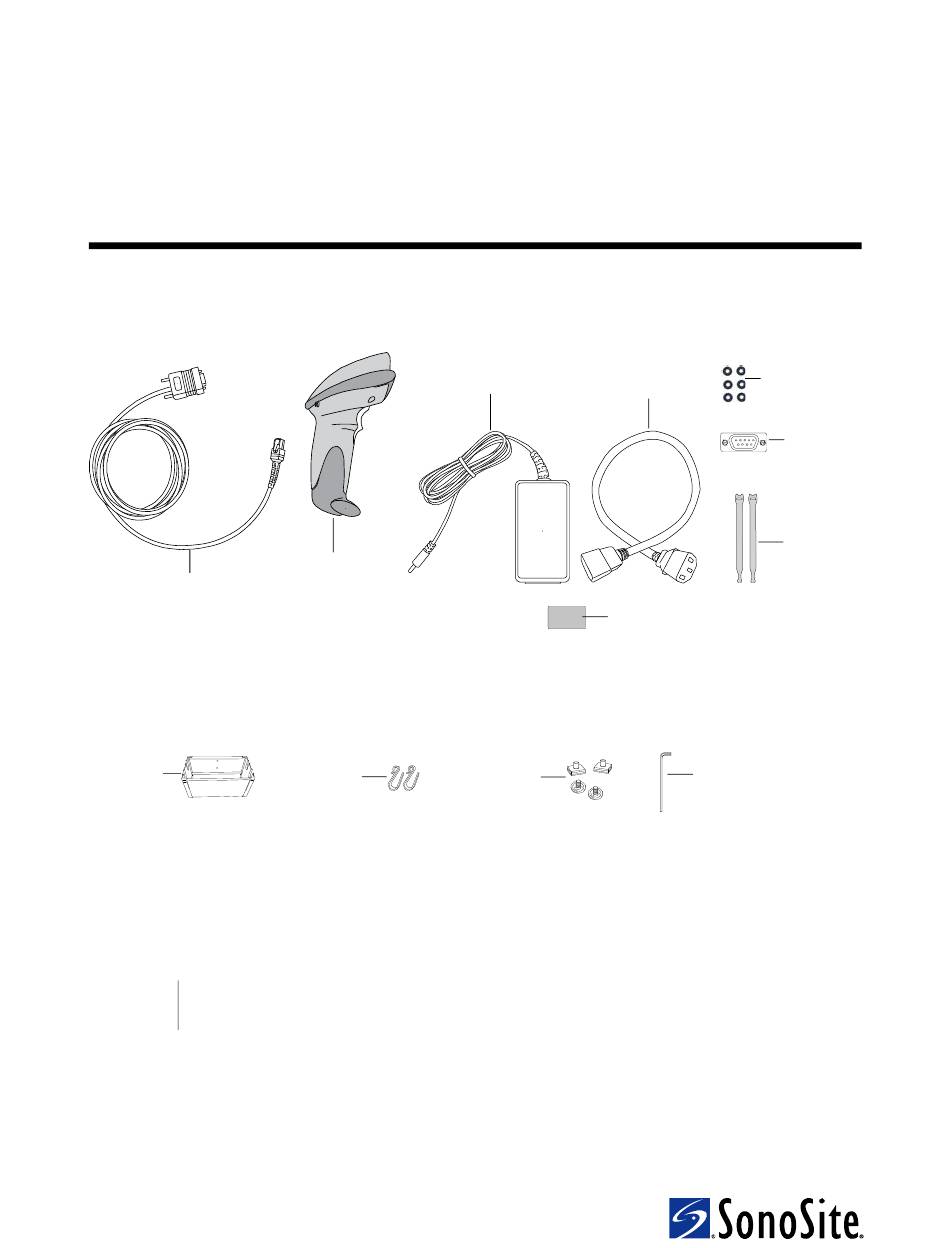

Contents
Bar code scanner
Interface cable
Basket
Basket
Overview
Follow these instructions to install the serial bar code scanner on the S Series stand. Installation includes the basket
for storing the bar code scanner.
For information on safety, cleaning, and disinfecting, see Bar Code Scanner User Guide.
WARNING:
To avoid the risk of electrical shock or injury, do not connect
more than one peripheral on the S Series stand.
Installation Instructions
for S Series Stand
Power supply
Bar code
scanner
Nut plates &
Hooks (2)
accessory
screws (2)
Grommets (6)
AC power
cord
Adapter
Velcro
strips (2)
Adhesive pad
Allen wrench
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SonoSite S Series
Summary of Contents for SonoSite S Series
- Page 1 (2) Overview Follow these instructions to install the serial bar code scanner on the S Series stand. Installation includes the basket for storing the bar code scanner. For information on safety, cleaning, and disinfecting, see Bar Code Scanner User Guide.
- Page 2 Table 1, “Cables and Connectors” on page 5. Remove the system from the stand. For instructions, see the S Series Stand User Guide. Insert the AC power cord (J) through the top of the base: • Insert the end that has prongs.
- Page 3 Position basket Position the two nut plates where desired. Make sure that their spacing accommodates the two holes on the basket. Place the basket (the side with two holes) onto the column. The two nuts pass through the two holes on the basket. Using the Allen wrench, tighten an accessory screw in each of the two holes on the basket.
-
Page 4: Secure Cables
Connect and affix power supply Connect the AC power cord (J) to the bar code scanner power supply (W). Wind up the excess AC power cord, and secure it with a Velcro strip. Remove the backing from one side of the adhesive pad, and affix the pad to the power supply, on the side without the label. - Page 5 Set up system, and program scanner In 2D imaging mode, do one of the following: • Press Patient, and then press Setup on the horizontal row of control keys. • Press Setup on the vertical row of control keys. Select Connectivity. In the Serial Port list, select Bar Code Scanner.
- Page 6 S Series, SonoSite, and the SonoSite logo are either trademarks or registered trademarks of SonoSite, Inc. The SonoSite product(s) referenced in this document may be covered by one or more of the following US patents: 5722412, 5817024, 5893363, 6135961, 6203498, 6364839, 6371918, 6383139, 6416475, 6447451, 6471651, 6569101, 6648826, 6575908, 6604630, 6817982, 6835177, 6962566, 7169108, D456509, D461895, D509900, D538432, D544962, D558351, D559390, and by the following counterpart foreign patents: AU727381, AU730822, CA2373065, CN98106133.8, CN98108973.9, DE60021552.0, DE60029777.2, DE60034670.6, DE69730563.5, DE6980539.6, DE69831698.3, FR0875203,...
