Teledyne Lecroy PCI Express 4.0 U.2 Quick Start Manual

1
Introduction
Use this document for quick installation and setup.
Teledyne LeCroy's Gen4 U.2/U.3 Host Adapter provide a quick and simple means for test and debug of Solid State Drives
(SSDs) based on PCI Express (PCIe) protocols. They support data rates of 2.5 GT/s, 5.0 GT/s, 8.0 GT/s and 16.0 GT/s.
Each host adapter also supports side band signals such as PERST#, WAKE#, CLKREQ# and SMBus (SMBCLK, SMBDAT).
There are five different host adapter cards. All the adapters have similar features and only difference is how the links are
connected between the U.2/U.3 connector and the PCIe CEM Edge fingers:
Port A U.2 x4 Routing 4 lanes of port A from U.2 connector straight to the bottom PCIe CEM edge fingers.
Port B U.2 x2 Routing 2 lanes of port B from U.2 connector to the bottom PCIe CEM edge fingers (L0 and L1).
Port A U.3 x4 Routing 4 lanes of port A from U.3 connector straight to the bottom PCIe CEM edge fingers.
Port A U.3 x2 Routing 2 lanes of port A from U.3 connector straight to the bottom PCIe CEM edge fingers (L0 and L1).
Port B U.3 x2 Routing 2 lanes of port B from U.3 connector to the bottom PCIe CEM edge fingers (L0 and L1).
2
Components
The adapter package includes the following components:
• U.2/U.3 Host Adapter card
• Half height bracket
Inspect the received shipping container for any damage. Unpack the container and account for each of the system
components listed above. Visually inspect each component for absence of damage. In the event of damage, notify the
shipper and Teledyne LeCroy. Retain all shipping materials for shipper's inspection.
PCI Express 4.0 to U.2/U.3 Host Adapter
®
User Manual and Quick Start Guide

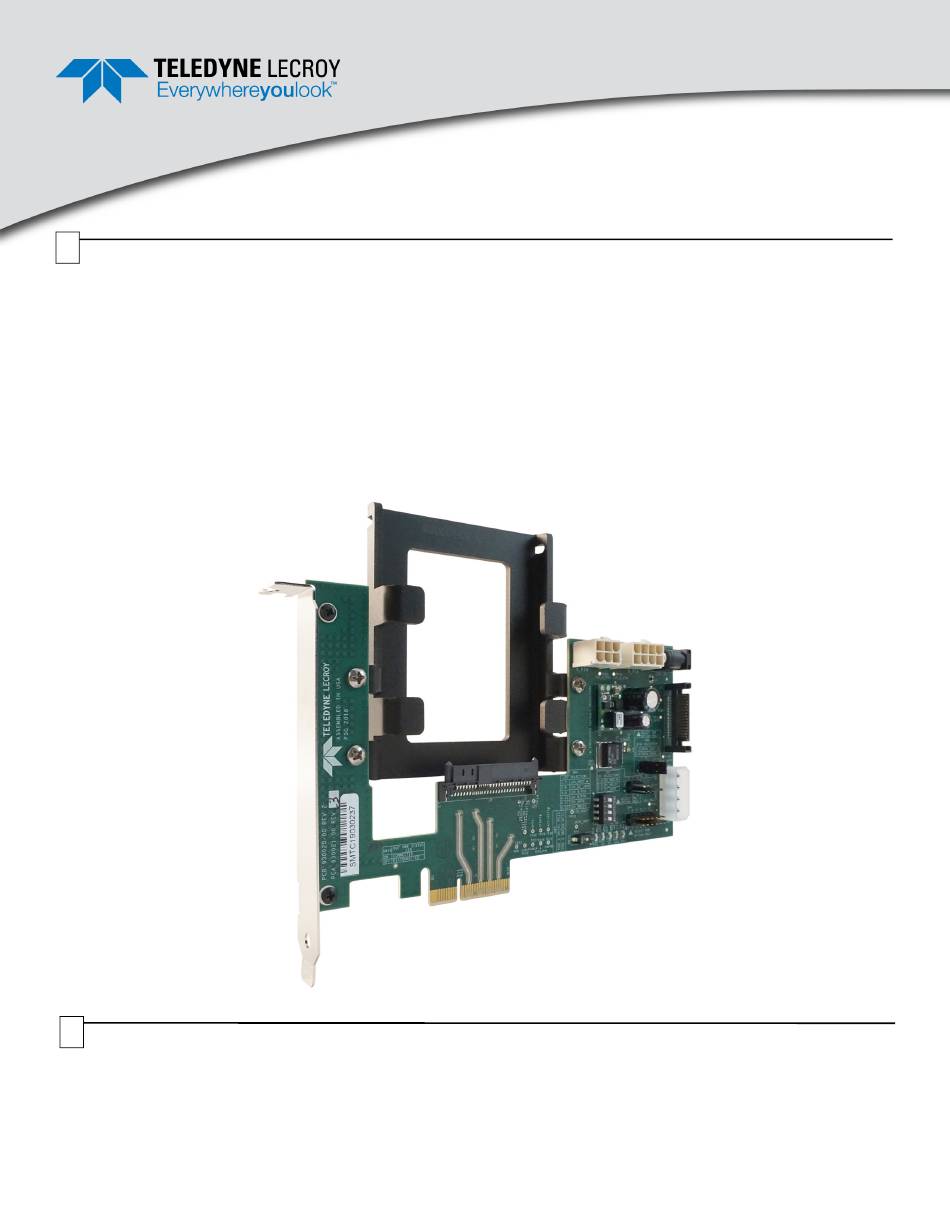

U.2/U.3 Host Adapter Card
• Power supply (+12V @ 3A)
• User Manual and Quick Start Guide (this document)
