TOOL WAREHOUSE WT01Y0209 Manual

Metal tool cabinet with wooden working bench
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

METAL TOOL CABINET WITH WOODEN WORKING BENCH
WT01Y0209

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WT01Y0209 and is the answer not in the manual?

Questions and answers

Summary of Contents for TOOL WAREHOUSE WT01Y0209

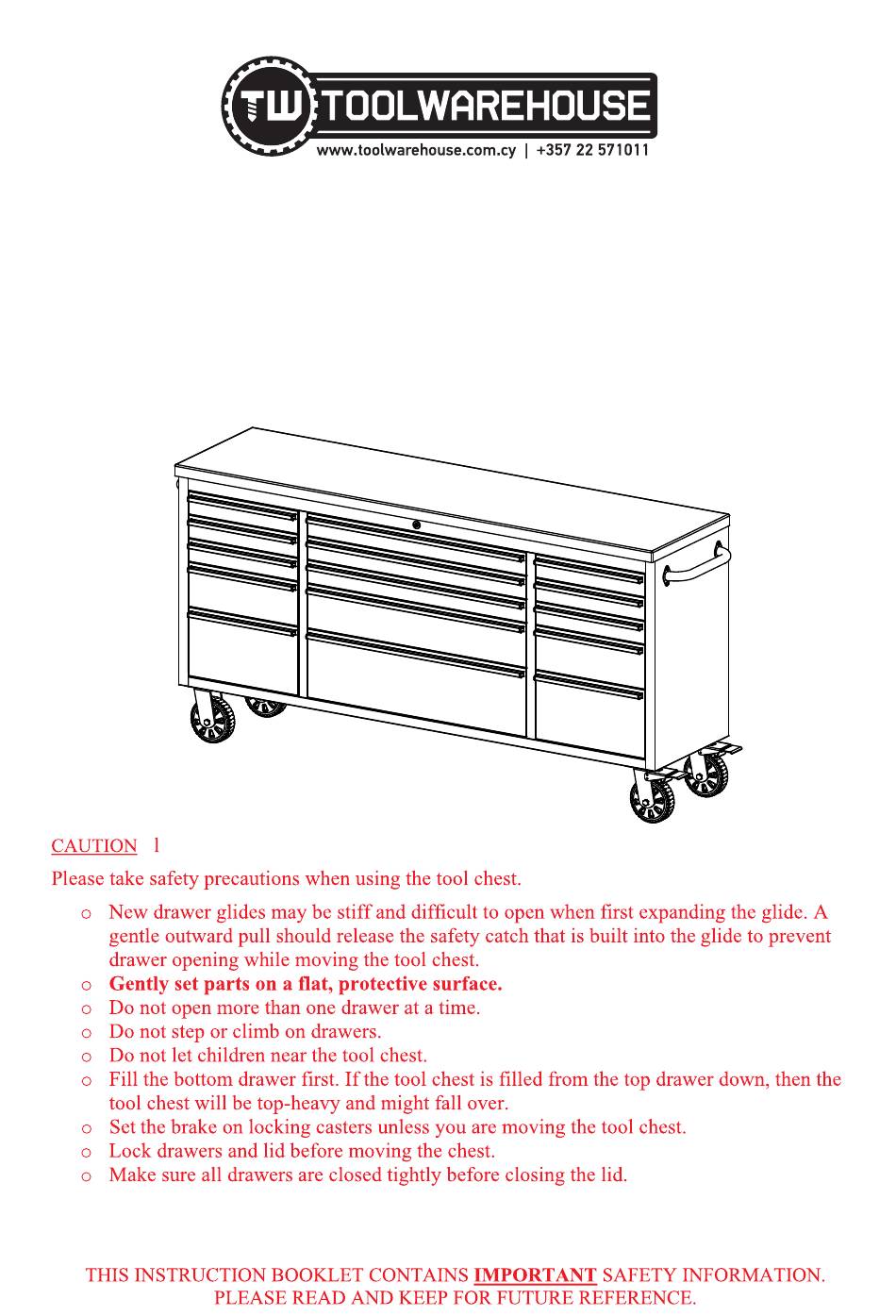

  • Page 1 METAL TOOL CABINET WITH WOODEN WORKING BENCH WT01Y0209...
  • Page 2 M A X I M U M L O A D C A P A C I T IMUM LOAD 1 130 lb 5 kg FOR WOOD TOP (EVENLY DISTRIBUTED) MAXIMUM LOAD 25 lb / 11.3 kg MAXIMUM LOAD 25 lb / 11.3 kg MAXIMUM LOAD 25 lb / 11.3 kg MAXIMUM LOAD 25 lb / 11.3 kg MAXIMUM LOAD 66 lb / 30.0 kg...
  • Page 3 Parts and Hardware List Please read completely through the instructions and verify that all parts listed are included before beginning assembly. Tools required for assembly: Wrench (not included). A- Tool Chest (1) B- Side Handle (2) C- Small Bolt (8) D- Swivel Caster (2) E- Locking Caster (2) F- Large Bolt (16+1 extra)
  • Page 4 Handle Assembly Instructions Unpack the unit and confirm that you have all the hardware and required parts listed. 2 Stand the unit upright and attach Side Handle (B) to Tool Chest (A) securing with Small Bolts (C) as shown below figure. 3 Repeat step for the other side handle.
  • Page 5 Attach Locking Casters (E) a nd Swivel Casters (D) to the bottom of Tool Chest with Large Bolts (F). Securely tighten all the bolts with Wrench . Make sure the Locking Casters (E) locate at same side of the unit. Note: Please adjust the bins and liners in the drawers after finishing the casters.
  • Page 6 Drawer Drawer Liner Large...
