HDMI INPUT
OUTPUT 1
OUTPUT 2
RJ45 JACK
(OUTPUT 1)
Note:
Green LED indicates power on, Orange LED indicates signal on when connected.
AUDIO SWITCH
DC POWER JACK
VIEW A
RJ45 JACK
(OUTPUT 2)
LABEL-1
SIZE: 50 x 35mm
®
YYWWXXXXX
VIEW A
Specification:
1. Splits and transmits HDMI signals to two (2) separate HDMI
displays
2. For active receiver: Extends the transmission distance up to
150 feet @ Blu-ray 1080/60p using one 24 AWG Solid Wire
UTP Cat5/6 cable
3. For passive receiver: Extends the transmission distance up to
50 feet @ Blu-ray 1080/60p using one 24 AWG Solid Wire
UTP Cat5/6 cable
4. Supports resolutions up to Blu-ray 1080/60p, Audio DTS-HD,
Dolby True-HD signals
5. AC/DC Power adapter included
6. Detachable surface mount brackets included
7. Dimensions:91.75(L) x 64.14(W) x 25.6(H) mm
8. 3D-Ready and HDCP compliant
02/13/12 Revise SPEC label
08/18/11 Revise SPEC & white box label
08/17/11
Revise silkscreen
4-1
02/13/12
2
2

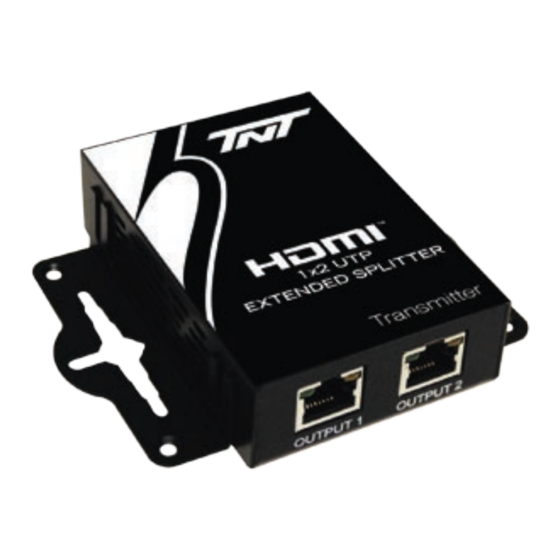

HDMI UTP Extended
1x2 Active Splitter Transmitter
R01-SPL-HSL-102B
R01-SPL-HSL-102B_2S4P_021312
Advertisement
Table of Contents
Related Manuals for TNT R01-SPL-HSL-102B
Summary of Contents for TNT R01-SPL-HSL-102B
- Page 1 (OUTPUT 2) (OUTPUT 1) 02/13/12 Revise SPEC label 08/18/11 Revise SPEC & white box label 08/17/11 Revise silkscreen Note: HDMI UTP Extended Green LED indicates power on, Orange LED indicates signal on when connected. 1x2 Active Splitter Transmitter 02/13/12 R01-SPL-HSL-102B R01-SPL-HSL-102B_2S4P_021312...
- Page 2 ® YYWWXXXXX YYWWXXXXX YY/WW Serial Number (Transmitter) 50 x 35 LABEL-1 1 x 2 SPLITTER TRANSMITTER R01-SPL-HSL-102B HDMI UTP Extended 1x2 Active Splitter Transmitter 02/13/12 R01-SPL-HSL-102B...
- Page 3 Serial Number HDMI UTP Active 1x2 Splitter Transmitter Splits and transmits HDMI signal up to two (2) separate HDMI displays Part number: R01-SPL-HSL-102B From: YYWWXXXXX • Splits and tranmits HDMI signal up to 150 feet using one 24 AWG Solid Wire Cat5/6 cable •...
- Page 4 3) According to the figure, stick the label-1 in front side of the white box. 4) Put white box (20pcs) into the outer carton. HDMI UTP Extended 5) White Box size:(L)184X(W)164X(H)55 mm 1x2 Active Splitter Transmitter 6)Carton size:(L)588X(W)347X(H)222 mm R01-SPL-HSL-102B 02/13/12 7)N.W:9.20 KGS / G.W:9.92 KGS...
