Tray table
Art. nr. 39541-5 / 39551-5
Intended use
Tray table is intended as a general resting surface during daily activities, such as when eating.
Parts included
1 x tray table
Assembly
1
2
1

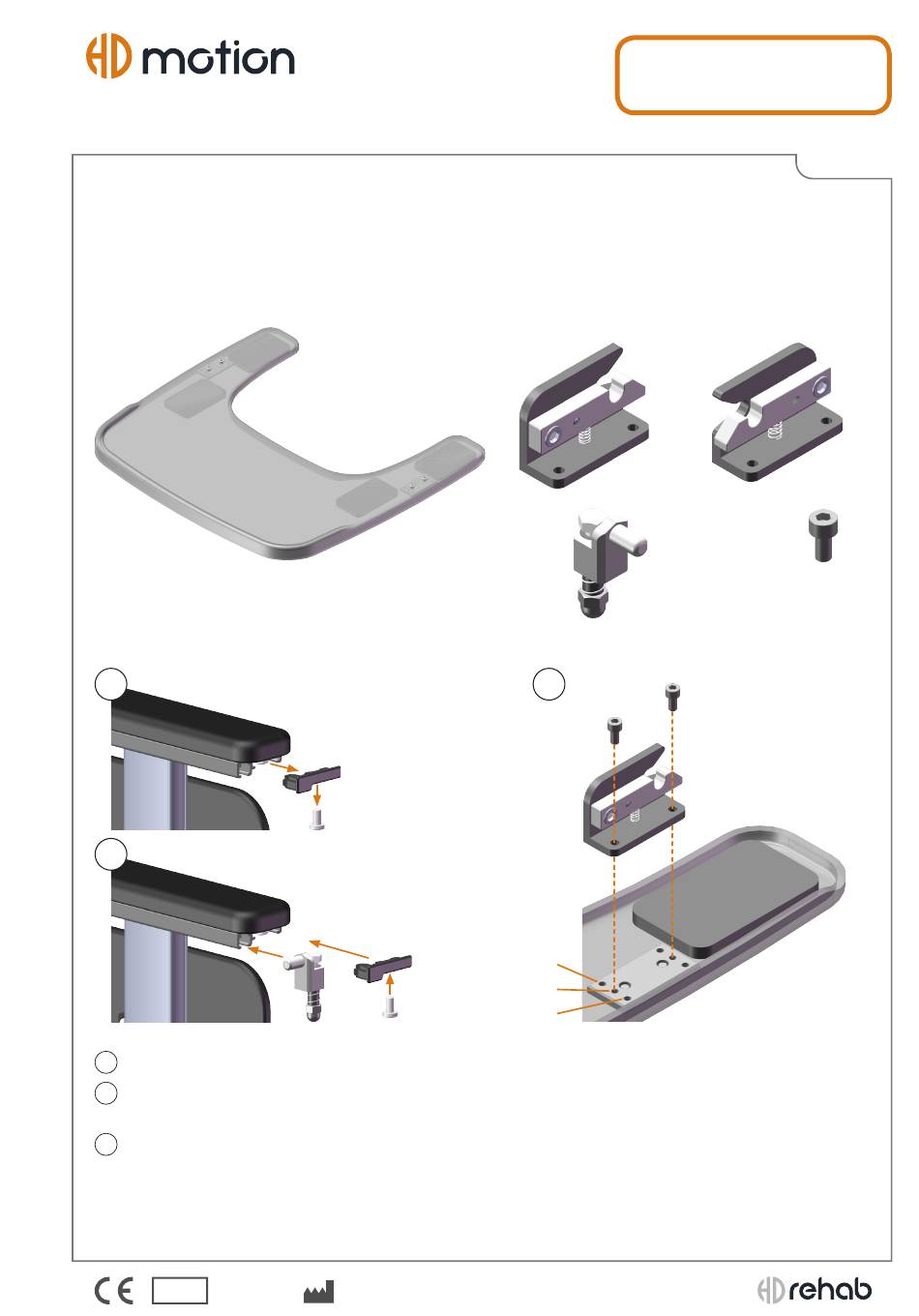

Remove the screw and pull out the plastic plug from the armrest rail at the back of each armrest.
2
Slide the mounting pin along the slot in armrest rail. Place the mounting pins at approximately the
same depth on both sides. Put the plastic plugs and screws back in place in the armrest rails.
3
Check if the armrests are set in the inner, middle, or outer position on the wheelchair. Screw the
fittings in place on each side of the tray table in the corresponding position.
MD
1 x fitting RH
2 x
mounting pin
Inner position
Middle position
Outer position
HD Rehab AB
, Tryffelslingan 4, 181 57 Lidingö, Sweden
tel. +46(0)8-767 04 80 info@hdrehab.se www.hdrehab.se
User manual /
Assembly instructions
Doc. nr. 96805-1 Rev A 2020-10-02
1 x fitting LH
4 x screw
MC6S M5x10
3
Page 1 (2)
