Summary of Contents for Environmental Express ZHE+

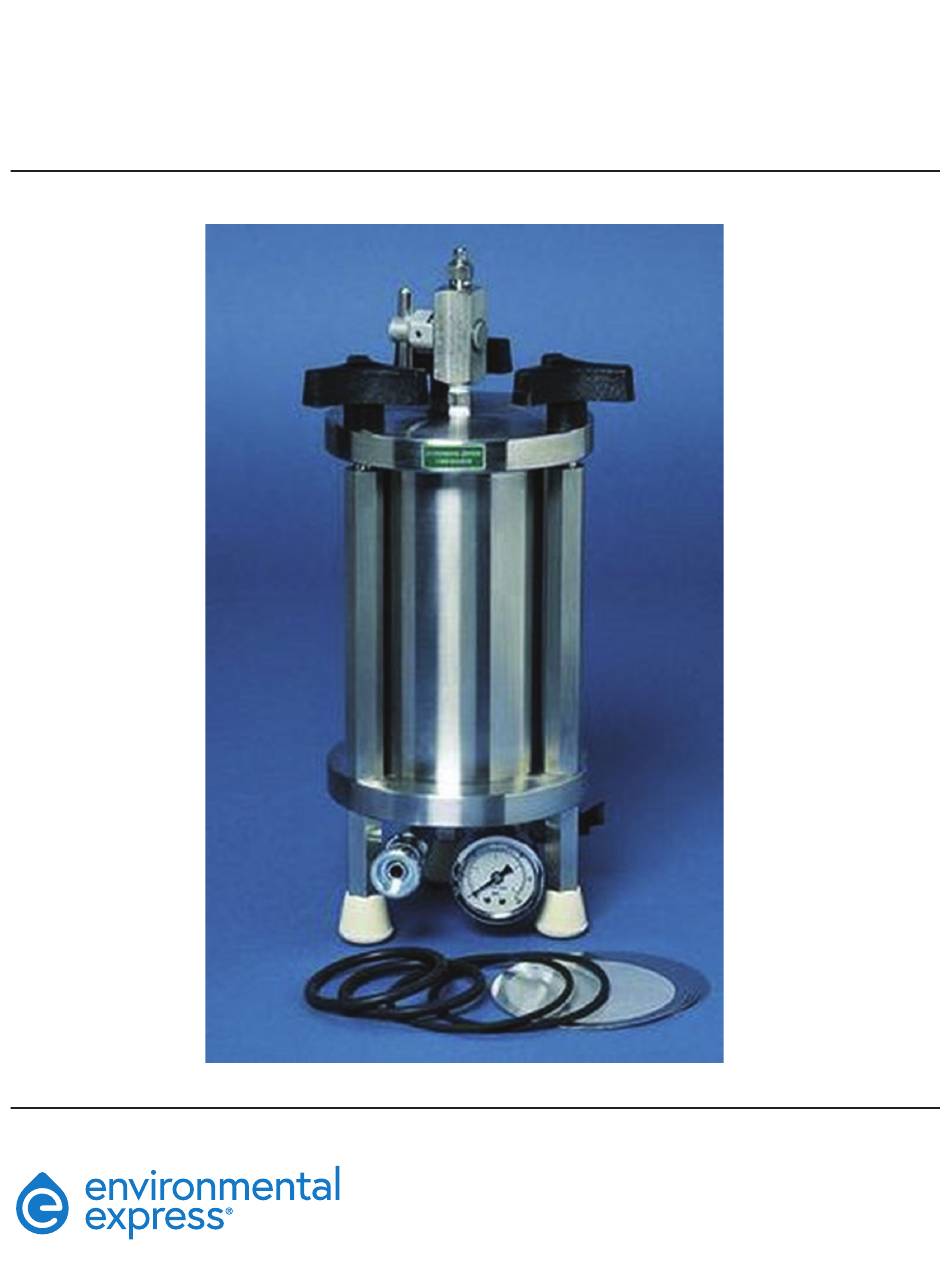

- Page 1 ZHE+ Zero Headspace Extractor ® Operation & Instruction Manual ©2021 Environmental Express, Inc. All rights reserved. +1.800.343.5319 or +1.843.881.6560 envexp.com July 2021 1065EE10_M Rev 2...
- Page 2 ZHE+ Zero Headspace Extractor: Operation and Instruction Manual Contents Contents General Information Specifications Replacement Parts Setup and Operation Maintenance and Care Warranty +1.800.343.5319 or +1.843.881.6560 envexp.com Environmental Express...
- Page 3 Extraction of the solid fraction of the sample takes place in a rotary extractor with the ZHE+ zero headspace extractor being tumbled end over end for eighteen hours at 30 rpm. The Heavy-Duty LE Rotator from Environmental Express (Item # LE1002, LE1002-240) is suitable and meets the requirements of Method 1311.
- Page 4 1/4" female disconnect ZCDFD25-1 1/8" pressure relief valve ZCDRV12-1 Pressure gauge, 0 to 60 psi ZSPPG12-1 Rubber feet ZRUFT25-3 Polyethylene knockout plug (not shown) ZPYPG00-1 1/8" Stainless bushing ZSSBU12-1 1/8" Stainless female fitting ZCDT012-1 +1.800.343.5319 or +1.843.881.6560 envexp.com Environmental Express • 2...
- Page 5 If you have purchased the Heavy-Duty LE Rotator (Item # LE1002 or LE1002-240) from Environmental Express, you will need either Extractor Pad Set (Item # LE1603) or sufficient packing materials to insure the immobility of the ZHE+ unit while rotating.
- Page 6 After proper notification, any defective ZHE+ zero headspace extractor or part thereof may be returned to Environmental Express, Inc. for, at Environmental Express’ option, replacement or refund. In no event shall Environmental Express be liable for any incidental, consequential, special, or indirect damages of any kind pursuant to the purchase and/or use of this product.
