Summary of Contents for TopXGun X30
- Page 1 Optical Zoom Pod User’s Manual V1.1 Revision Date Jul. 2017 Shanghai Topxgun Robotics Co., Ltd. www.topxgun.com...
- Page 2 Explanation Disclaimer Thanks for purchasing this product. There is special web-page for X30 on www.topxgun.com, the official website of Topxgun robotics, you can log in the web-page to obtain the latest product information, technological support and user ’s manual. It is suggested that you download and use the current edition of user ’s manual.
-
Page 3: Table Of Contents
TTENTION PRODUCT BRIEF INTRODUCTION......................2 ........................2 RIEF NTRODUCTION ..........................2 INSTALLATION........................... 3 ....................3 NSTALLATION REPARATION ......................... 3 NSTALLATION GROUND STATION..........................4 ........................4 RIEF NTRODUCTION 1.0..................4 NSTALLATION OF OFTWARE OF ERSION .............................4 NTERFACE ........................5 PERATION 2017 Topxgun robotics, All Right Reserved... -
Page 4: Overview

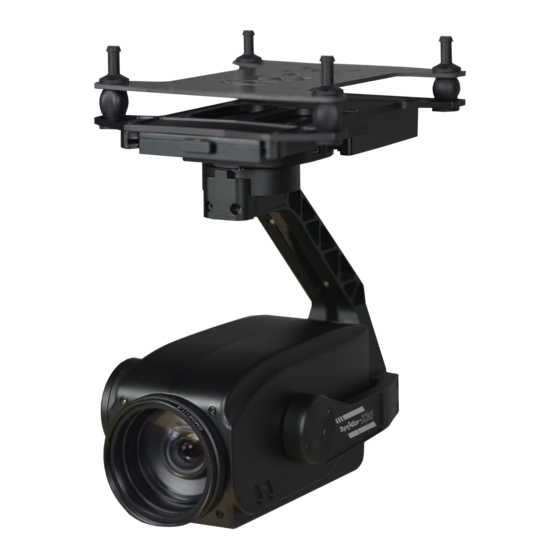

X30 optical zoom pod (hereinafter X30 pod) is a precision equipment. Please do not change the unofficial UV lens or add other articles like lens hood and counter weight, etc., or serious effect like bad working effect of... -
Page 5: Product Brief Introduction
Please do not privately disassemble and maintain it, or you may not enjoy the warranty policy. X30 pod can be normally used with the data chain, please do not install it on unofficially-appointed products, or serious effect like failure in proper functioning and even over burning, etc. -
Page 6: Installation
Installation Preparation Device type that is supported to be installed The X30 optical zoom pod can be normally used with the Rainbow R1 data chain. A higher pointing accuracy can be obtained if used with the flight controller ( flight controllers of TOPXGUN are all temporarily supported), and can restrain the course drifting. -
Page 7: Ground Station
4 Ground Station Brief Introduction X30 pod can be used together with the Rainbow R1 data chain, display of images can be done at the computer terminal of ground PC, and all controllers like lens zoom, shooting, recording and cloud deck movement, etc. can be realized. (the mobile client-side like pad or mobile phone, etc. -
Page 8: Operation Pod
4) Calibration If the users do not use the flight controller of TOPXGUN series, fail to connect the data transmission or CAN tieline, when working in the environment with relatively large temperature differences before and after flying (e.g.: the air vehicle plies from rooms and vehicles to the... - Page 9 Controllable rotation range pitch：+60° to -120°；course：±160° Structure design range pitch：±175°course：±175°；roll:+90° to ﹣50° Maximum controllable speed pitch：120º/s; course:180º/s Camera parameters Sensor CMOS:1/1.8″; total pixel:600w Camera lens 30X optical zoom F 6~180mm aperture:1.5~4.3 minimum shooting distance:10mm~1500mm(close focus ~ 2017 Topxgun robotics, All Right Reserved...
- Page 10 Clicking zoom supported Clicking zoom range 1~30 times optical , 4 times digital One-key zoom to single image supported Supported storage card type Micro SD card Data transmission、image transmission information Frequency range 2.4g/900 megabit 2017 Topxgun robotics, All Right Reserved...
- Page 11 Transmission distance 5.7km no shadow, no interference Antenna gain 5db （sky） 7db （ground） omnidirectional antenna Effective omnidirectional radiation power 100mw~1w adjustable Video output interface Network interface Working temperature -45°~+80° 2017 Topxgun robotics, All Right Reserved...
