AMR INC.
DESIGN & MANUFACTURING FOR MINING WORLDWIDE
Visit our web site at www.americanmineresearch.com
BELT SLIP/SEQUENCE CONTROL
INSTALLATION AND SETUP
P.O. BOX 234, ROCKY GAP, VA 24366
PHONE (276)928-1712
FAX
(276)928-1814
Email
sales@americanmineresearch.com
AMR

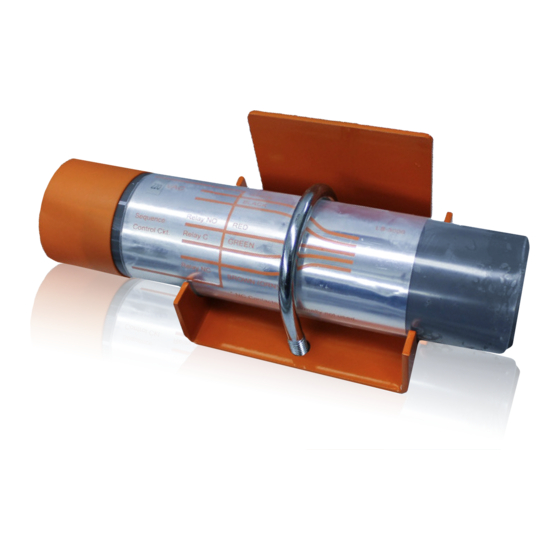

LS-3000-220
INSTRUCTIONS
12/2/98
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for AMR LS-3000-220
- Page 1 AMR INC. DESIGN & MANUFACTURING FOR MINING WORLDWIDE P.O. BOX 234, ROCKY GAP, VA 24366 PHONE (276)928-1712 (276)928-1814 Email sales@americanmineresearch.com Visit our web site at www.americanmineresearch.com LS-3000-220 BELT SLIP/SEQUENCE CONTROL INSTALLATION AND SETUP INSTRUCTIONS 12/2/98...
- Page 2 BLACK and WHITE wires. An in-line fuse holder, with a 250mA, 3AG fuse (AMR part number 270-0043) is provided, to be wired in series with the Black wire. This fuse is used to protect the internal circuitry...
- Page 3 *Control Contacts: These connections are wired in series with the control line just as any other belt switch. In order to protect the wire, a 15-amp in- line fuse should be installed in series with the GREEN wire. The switching is done by a relay with either normally open (RED) or normally closed (BROWN) contacts.
- Page 4 STEP 3 Remove the shorting jumper from the control wires (GREEN to RED). Start the belt and observe the calibration light. It should be on solid (not flickering). If not, you may need to re-adjust the speed adjustment or the positioning of the module.
- Page 5 LS-3000-220 BELT SLIP/SEQUENCE CONTROL WIRING IDENTIFICATION *BLACK & WHITE – 220VAC INPUT *GREEN ---------- RELAY COMMON *RED-------------------------- RELAY NO *BROWN----------------------RELAY NC...
