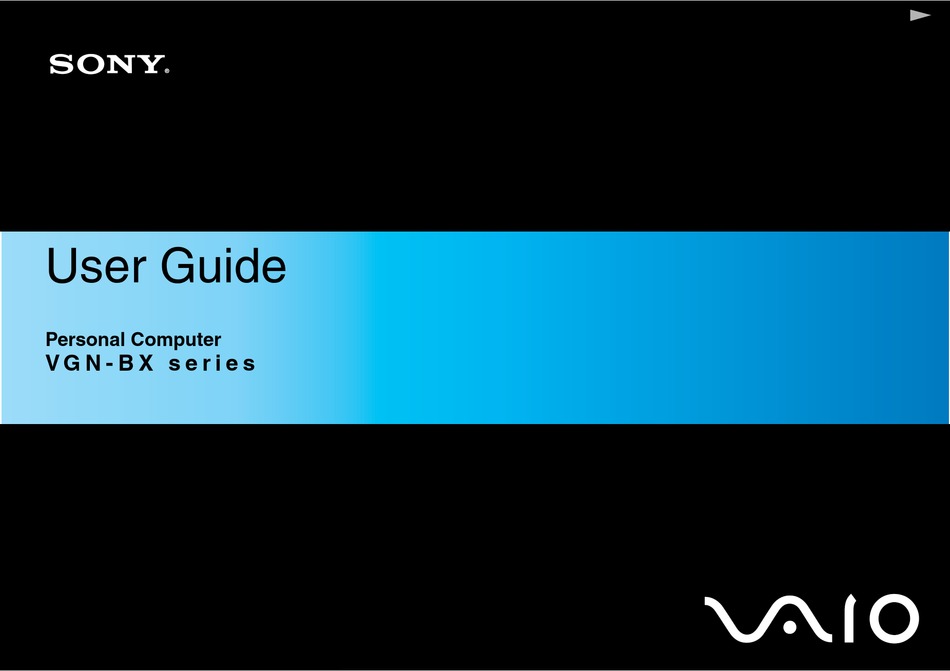

Page 1: User Guide
User Guide Personal Computer V G N - B X s e r i e s...
Page 2: Table Of Contents
Contents Before Use ...6 Notice ...6 Documentation ...7 Ergonomic Considerations ...11 Getting Started ...13 Locating Controls and Ports...14 About the Indicator Lights ...21 Connecting a Power Source ...22 Using the Battery Pack ...24 Shutting Down Your Computer Safely ...30 Using Your VAIO Computer ...31 Using the Keyboard ...32 Using the Pointing Device ...34 Using Special-function Buttons ...37...
Page 3 Using Peripheral Devices...61 Using the Optical Disc Drive ...62 Connecting a Multi Function Bay Docking Station ...72 Connecting External Speakers ...85 Connecting an External Display ...86 Selecting Display Modes...91 Using the Multiple Monitors Function ...92 Connecting an External Microphone ...94 Connecting a Universal Serial Bus (USB) Device...96 Connecting a Printer ...99 Connecting an i.LINK Device ...101...
Page 4 Precautions ...151 On Handling the LCD Screen ...152 On Using the Power Source ...153 On Handling Your Computer...154 On Handling Floppy Disks ...156 On Handling Discs ...157 On Using the Battery Pack...158 On Using Headphones...159 On Handling Memory Stick Media...160 On Handling the Hard Disk ...161 On Updating Your Computer ...162 Troubleshooting ...163...
Page 5 Floppy Disks ...194 Audio/Video...195 Memory Stick Media ...196 Peripherals ...197 Multi Function Bay Docking Station ...198 Support Options ...202 Sony Support Information ...202 e-Support ...203 Trademarks ...205...
Page 6: Before Use
In the manual, the ™ or ® marks are not specified. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.
Page 7: Documentation
❑ Recovery Guide — Contains an explanation of how to recover your computer's system if you need to. ❑ Regulations, Warranty, EULA and Service Support — Contains Sony GUARANTEE conditions, Safety / Regulations, Modem Regulations, Wireless LAN Regulations, Wireless WAN Regulations, Bluetooth Regulations, End User Software License Agreement, and Sony Support services information.
Page 8 ❑ Specifications — The online Specifications describe the hardware and software configurations of your VAIO computer. To view the online Specifications: Connect to the Internet. Go to the Sony online support Web site at http://www.vaio-link.com. ✍ You may have a separate disc for the documentation of bundled accessories.
Page 9 Click this icon and check out our most popular Sony and Club VAIO wallpapers. ❑ Links Click this icon and check out our most popular Sony and Club VAIO Web sites. Windows Help and Support Help and Support Center is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use Microsoft Windows XP and your computer.
Page 10 Before Use Further Sources ❑ Consult the help files on the software you are using for detailed information on features and troubleshooting. ❑ Go to http://www.club-vaio.com to find online tutorials about your favorite VAIO software.
Page 11: Ergonomic Considerations
Ergonomic Considerations You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments: ❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse.
Page 12 ❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.
Page 13: Getting Started
Getting Started Getting Started This section describes how to get started using your VAIO computer. ❑ Locating Controls and Ports (page 14) ❑ About the Indicator Lights (page 21) ❑ Connecting a Power Source (page 22) ❑ Using the Battery Pack (page 24) ❑...
Page 14: Locating Controls And Ports
Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some countries or areas.
Page 15 Front Built-in microphone (monaural) LCD screen (page 152) Pointing stick (page 35) Keyboard (page 32) Power button Touch pad (page 34) Built-in speakers (stereo) WIRELESS switch (page 54) Memory Stick PRO/Duo media slot (page 46) Media Access indicator (page 21) SD memory card slot (page 49) Power indicator...
Page 16 Muting button (page 37) S1/S2 buttons (page 37) Num lock indicator (page 21) Caps lock indicator (page 21) Scroll lock indicator (page 21) Fingerprint sensor (page 115) Getting Started...
Page 17 Back Network (Ethernet) port (page 103) Modem port (page 52) Battery connector (page 24) DC IN port (page 22) Getting Started...
Page 18 Right Multi function bay (page 38) Multi function bay unit eject button (page 38) i.LINK (IEEE 1394) S400 port (page 101) Hi-Speed USB (USB 2.0) ports (page 96) Monitor (VGA) port (page 87) Support high-/full-/low- speeds. Getting Started...
Page 19 Left Security slot Air vent Microphone jack (page 94) Headphones jack (page 85) Universal ExpressCard slot (page 43) ExpressCard module release button (page 44) Getting Started...
Page 20 Bottom Air vents Battery RELEASE latch (page 29) Battery LOCK/UNLOCK switch (page 24) Multi function bay docking station connector Getting Started (page 75)
Page 21: About The Indicator Lights
About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 Illuminates when the power of the computer is on, blinks when the computer is in Standby mode, and turns off when the computer is in Hibernate mode or off. Battery e Illuminates when the computer is using battery power, blinks when the battery pack is running out of power, and double-blinks when the battery pack is charging.
Page 22: Connecting A Power Source
Connecting a Power Source You can use either an AC adapter or a rechargeable battery pack as a power source for your computer. Using the AC Adapter ✍ Use your computer only with the supplied AC adapter. To use the AC adapter Plug one end of the power cord (1) into the AC adapter (3).
Page 23 Getting Started ✍ To disconnect your computer completely from AC power, unplug the AC adapter. Make sure that the AC outlet is easily accessible. If you do not use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 134).
Page 24: Using The Battery Pack
Using the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. Installing the Battery Pack To install the battery pack Turn off the computer and close the LCD screen lid. Slide the battery LOCK/UNLOCK switch (1) on the bottom of the computer to the UNLOCK position. Getting Started...
Page 25 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery compartment fit into the U-shaped cuts (3) on either side of the battery pack. Rotate the battery pack in the direction of the arrow, and push the battery pack down into the compartment until it clicks into place.
Page 26 When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet. Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony...
Page 27: Charging The Battery Pack
Charging the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. To charge the battery pack Install the battery pack. Connect the AC adapter to the computer. The computer automatically charges the battery pack (the battery indicator light flashes in a double blink pattern as the battery pack charges).
Page 28 Getting Started ✍ When the battery pack is running out of power, both the battery and power indicator lights blink. Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.
Page 29: Removing The Battery Pack
Removing the Battery Pack You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Standby mode. To remove the battery pack Turn off the computer and close the LCD screen lid.
Page 30: Shutting Down Your Computer Safely
Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start and then Turn Off Computer. The Turn off computer window appears.
Page 31: Using Your Vaio Computer
Using Your VAIO Computer Using Your VAIO Computer This section describes how to get the most out of using your VAIO computer. ❑ Using the Keyboard (page 32) ❑ Using the Pointing Device (page 34) ❑ Using Special-function Buttons (page 37) ❑...
Page 32: Using The Keyboard
Using the Keyboard Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks. The VAIO-Link Web site (http://www.vaio-link.com) also contains glossary information to help you use the keyboard. Combinations and Functions with the Fn Key ✍...
Page 33 Combinations/Feature Fn + (F10): zoom Fn + (F12): Hibernate Functions Changes the screen resolution to magnify/restore your computer's screen view. ✍ The default resolutions of the standard view and the magnified view are as follows: Standard view: 1280 x 800 pixels Magnified view: 1024 x 600 pixels The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution to the computer screen with a higher resolution.
Page 34: Using The Pointing Device
Using the Pointing Device Your computer is equipped with two types of the pointing device: the touch pad and the pointing stick. By default, both pointing devices are enabled but you can disable one of the devices to suit your preference. To change the pointing device settings, see Disabling a Pointing Device Using the Touch Pad You can point to, select, drag, and scroll objects on the screen using the touch pad.
Page 35: Using The Pointing Stick
Using the Pointing Stick The keyboard contains a cursor-pointing device, the pointing stick (1). You can point to, select, drag, and scroll objects on the screen using the pointing stick in combination with the buttons located below the space bar. The pointer (2) moves in the direction that you push the pointing stick.
Page 36 Disabling a Pointing Device You can change the pointing device settings to disable the pointing devices. To disable a pointing device Click Start and then Control Panel. Click Printers and Other Hardware. Click Mouse. The Mouse Properties window appears. Click the Device Select tab. Select radio buttons to disable the desired pointing device.
Page 37: Using Special-Function Buttons
Using Special-function Buttons Your computer is equipped with special buttons to help you use specific functions of the computer. Special-function button S1/S2 buttons Muting button Functions By default, the S1 button launches VAIO Help and Support Center and the S2 button places the computer into Standby mode.
Page 38: Using The Multi Function Bay
Using the Multi Function Bay Your computer is equipped with a component bay, called multi function bay, for hardware enhancement, and is delivered with a DVD±RW/±R DL/RAM drive bay unit. Additionally, you can purchase an optional bay unit and install it in the computer. Available optional bay units are: ❑...
Page 39 To change a bay unit ✍ To remove a bay unit when your computer is off, skip steps 1 to 6. Double-click the Safely Remove Hardware icon on the taskbar. The Safely Remove Hardware window appears. Select the hardware you want to unplug. Click Stop.
Page 40 Push the multi function bay unit eject button (1) to pop it out. Gently pull the button to pop out the installed bay unit. Gently take hold of the unit and pull it out of the bay. Using Your VAIO Computer...
Page 41 Using Your VAIO Computer 10 Insert another bay unit with the label facing upward into the bay until it clicks into place.
Page 42: Using The Expresscard Module
Using the ExpressCard Module Your computer is equipped with either a Universal ExpressCard among digital cameras, camcorders, music players, and other audio/video devices. The former can accommodate either an ™ ExpressCard /34 (34 mm wide) or ExpressCard ™ ExpressCard /34 module only.
Page 43: Inserting An Expresscard Module
Inserting an ExpressCard Module Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot. ✍ You do not need to shut down your computer before inserting or removing the ExpressCard module. To insert an ExpressCard module Carefully slide the ExpressCard module (1) into the slot until it clicks into place.
Page 44: Removing An Expresscard Module
Removing an ExpressCard Module Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your system may not work properly. To remove an ExpressCard module ✍ To remove an ExpressCard module when your computer is off, skip steps 1 to 6. Double-click the Safely Remove Hardware icon on the taskbar.
Page 45: Using The Memory Stick Media
For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/. Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 8 GB that are available as of January 2007.
Page 46: Inserting A Memory Stick Media
Inserting a Memory Stick Media To insert a Memory Stick media Locate the Memory Stick PRO/Duo media slot. Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick PRO/Duo media slot. Carefully slide the Memory Stick media into the slot until it clicks into place. The Memory Stick media is automatically detected by your system and the content of the Memory Stick media is displayed.
Page 47 Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly. Do not insert more than one Memory Stick media into the slot.
Page 48: Removing A Memory Stick Media
Removing a Memory Stick Media To remove a Memory Stick media Check that the Media Access indicator light is off. Push the Memory Stick media in toward the computer. The Memory Stick media ejects. Pull the Memory Stick media out of the slot. Always remove the Memory Stick media gently, or it may pop out unexpectedly.
Page 49: Using Other Memory Cards
❑ MultiMediaCard (MMC) ❑ Secure Digital (SD) For the latest information on compatible memory cards, visit the Sony online support Web site regularly. Always insert the correct memory card into the SD memory card slot. SD memory cards with capacity of up to 2 GB and SD High Capacity (SDHC) memory cards with capacity of up to 4 GB have been tested and found compatible with your computer.
Page 50: Inserting A Memory Card
Inserting a Memory Card To insert a memory card Locate the SD memory card slot. Hold the memory card with the arrow facing upward and pointing toward the memory card slot. Carefully slide the memory card into the slot until it clicks into place. Do not force the card into the slot.
Page 51: Removing A Memory Card
Removing a Memory Card Do not remove a memory card while the To remove a memory card Check that the Media Access indicator light is off. Press the extended part of the memory card, causing it to extend out from the slot. When the card extends, carefully pull it out of the slot.
Page 52: Using The Internet
Using the Internet Setting Up a Dial-up Internet Connection Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not supplied). Once you have set up your telephone cable connection, you are ready to connect to the Internet. To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2).
Page 53 To set up a dial-up connection to the Internet Click Start, point to All Programs, Accessories, and Communications, and then click New Connection Wizard. The New Connection Wizard appears. Click Next. If the Location Information window appears, follow the on-screen instructions. If it is not already selected, click Connect to the Internet and then Next.
Page 54: Using Wireless Lan (Wlan)
(radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings. The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
Page 55 Using Your VAIO Computer IEEE 802.11b/g is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed communications, faster than the IEEE 802.11b standard. IEEE 802.11a is a wireless LAN standard, using the 5 GHz bandwidth, and provides high-speed communications of up to 54 Mbps. IEEE 802.11n is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth, and provides high-speed communications of up to 300 Mbps * Actual communication speed varies depending on your access point settings and so on.
Page 56 Using Your VAIO Computer Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference. Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with IEEE 802.11b products.
Page 57: Communicating Without An Access Point (Ad-Hoc)
Using Your VAIO Computer Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
Page 58 To communicate without an access point (ad-hoc) The IEEE 802.11n standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks. Turn on the WIRELESS switch. The Wireless LAN indicator lights up. Double-click ) on the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.
Page 59: Communicating With An Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN.
Page 60 To connect to a wireless network Make sure an access point is set up. See the manual that came with your access point for more information. Turn on the WIRELESS switch. The Wireless LAN indicator lights up. Double-click ) on the taskbar to display the Wireless Device Switch window. Select your desired wireless option(s) and click OK.
Page 61: Using Peripheral Devices
Using Peripheral Devices Using Peripheral Devices You can add functionality to your VAIO computer by using the various ports on the computer. ❑ Using the Optical Disc Drive (page 62) ❑ Connecting a Multi Function Bay Docking Station (page 72) ❑...
Page 62: Using The Optical Disc Drive
Using the Optical Disc Drive When playing or recording on CDs or DVDs, replace the installed weight saver with the supplied optical disc drive bay unit. See Using the Multi Function Bay To insert a disc Turn on the computer. Press the drive eject button (1) to open the drive.
Page 63 Using Peripheral Devices Do not remove the optical disc when your computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction. Before removing the optical disc, make sure that the optical disc drive indicator (2) is unlit. If the drive eject button does not work, use the manual eject hole (3).
Page 64: Reading And Writing Optical Discs
Using Peripheral Devices Reading and Writing Optical Discs ™ Your computer plays and records CDs, DVDs, and Blu-ray Disc media, depending on the supplied optical disc drive bay unit. Check your specifications for type of your optical disc drive bay unit. Use the table below to see which types of media your optical disc drive supports.
Page 65 Video Music Extra DVD±RW/ ±R DL/RAM CD-RW/ DVD-ROM DVD-ROM Blu-ray Disc P Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1. Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2. The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge. Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
Page 66 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that are not compliant with the official "CD"...
Page 67 Notes on writing data to a disc ❑ Use only Sony recommended software, which is preinstalled on your computer, to write data to a disc. Other software programs may not be fully compatible and errors may result. ❑ To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete this process, follow the instructions included with your software.
Page 68 Notes on playing discs To achieve optimum performance when playing discs, you should follow these recommendations. ❑ Some CD players and computer's optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW disc media. ❑...
Page 69: Playing Cds
Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, then click Start, point to All Programs, and click to start the desired CD software to play the CD. If the Audio CD window appears, click to select an option.
Page 70: Copying Files To Cds
Copying Files to CDs To copy files to a disc Do not strike or shake your computer while writing data to a disc. Insert a blank disc into the optical disc drive. If the CD Drive window appears, click Take no action and then click OK. Right-click Start and then click Explore.
Page 71: Playing Dvds
Playing DVDs To play a DVD Close all running software applications. Insert a DVD into the optical disc drive. If nothing appears on the desktop, then click Start, point to All Programs, and click to start the desired DVD software to play the DVD.
Page 72: Connecting A Multi Function Bay Docking Station
Using Peripheral Devices Connecting a Multi Function Bay Docking Station Attaching a multi function bay docking station enables you to connect additional peripherals to your computer, such as a printer and an external display. A multi function bay docking station is not supplied with your computer and is available as an optional accessory.
Page 73 Locating Ports on the Multi Function Bay Docking Station Right DC IN indicator Illuminates when the multi function bay docking station is powered. Battery CHARGE indicator Fast blinks: The battery pack is improperly inserted or incompatible with the computer. Double blinks: The battery pack is charging. Off: The battery pack is fully charged.
Page 74 Left/Back The multi function bay docking station can be powered only through the AC adapter supplied with the multi function bay docking station. Do not unplug the AC adapter from the multi function bay docking station and the AC outlet while using the multi function bay docking station; this may cause data damage or hardware malfunctions.
Page 75 Attaching Your Computer to the Multi Function Bay Docking Station When your computer has no battery pack installed, do not attach the computer to the multi function bay docking station. To attach your computer to the multi function bay docking station Disconnect all peripherals from the computer.
Page 76 Gently push and slide open the multi function bay docking station connector cover on the bottom of the computer. Slide the LOCK/UNLOCK switch on the multi function bay docking station to the UNLOCK position. Using Peripheral Devices...
Page 77 Using Peripheral Devices Place the computer on the multi function bay docking station. Bring the arrows on the back of the LCD screen and on the multi function bay docking station together so that the connector on the bottom of the computer comes in contact with that on the docking station.
Page 78 Gently push down the computer until it clicks into place. Slide the LOCK/UNLOCK switch to the LOCK position. Turn on the computer. Be sure to use the AC adapter supplied with the multi function bay docking station. Do not move your computer while attached to the multi function bay docking station; this may detach the multi function bay docking station and cause damage to both units.
Page 79 Using Peripheral Devices Disconnecting Your Computer from the Multi Function Bay Docking Station Be sure that no devices connected to the multi function bay docking station are in use before disconnecting your computer. Do not disconnect your computer from the multi function bay docking station when the IN USE indicator is lit. Disconnecting the computer while the IN USE indicator is lit may result in loss of unsaved data or a failure of the computer.
Page 80 To disconnect your computer from the multi function bay docking station Turn off the computer and the connected peripherals; and then disconnect all connected peripherals. Slide the LOCK/UNLOCK switch on the multi function bay docking station to the UNLOCK position. Using Peripheral Devices...
Page 81 Using Peripheral Devices Press the UNDOCK button (1). ✍ If the IN USE indicator is unlit, you do not have to press the UNDOCK button. Pressing the UNDOCK button while your computer is in a power saving mode returns the computer to Normal mode first, and then initiates the disconnection process.
Page 82 Using Peripheral Devices Wait until the IN USE indicator (2) turns off and then press the PUSH RELEASE button (3).
Page 83 Lift the computer away from the multi function bay docking station. Close the multi function bay docking station connector cover on the bottom of the computer. Using Peripheral Devices...
Page 84 Alternatively, you can disconnect the computer from the multi function bay docking station as follows: Turn off the computer and the connected peripherals; and then disconnect all connected peripherals. Slide the LOCK/UNLOCK switch on the multi function bay docking station to the UNLOCK position. Click Start and then Undock Computer.
Page 85: Connecting External Speakers
Connecting External Speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers Plug the speaker cable (1) into the headphones jack (2) i. Plug the other end of the speaker cable to the external speaker (3). Turn down the volume of the speakers before you turn them on.
Page 86: Connecting An External Display
Connecting an External Display You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer display or a projector. ✍ Connect the power cord after connecting all other cables. Connected external displays are used as secondary screens. On the Windows operating system, you can also use an external display to set up multiple monitors.
Page 87: Connecting A Computer Display
Connecting a Computer Display You can connect a computer display (monitor) either directly to your computer or via the optional multi function bay docking station. To connect a computer display If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet. If you want to connect a VGA monitor, plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the multi function bay docking station.
Page 88: Connecting A Multimedia Computer Display
Connecting a Multimedia Computer Display You can connect a multimedia computer display that includes built-in speakers and a microphone either directly to your computer or via the optional multi function bay docking station. To connect a multimedia computer display Plug the power cord of your multimedia computer display (1) into an AC outlet. Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the multi function bay docking station.
Page 89 Using Peripheral Devices...
Page 90: Connecting A Projector
Connecting a Projector You can connect a projector (for example, the Sony LCD projector) either directly to your computer or via the optional multi function bay docking station. To connect a projector Connect the power cord (1) of your projector into an AC outlet.
Page 91: Selecting Display Modes
Selecting Display Modes You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer. If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors Function (page 92) for more information.
Page 92: Using The Multiple Monitors Function
Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer screen and the external display can function as a single desktop.
Page 93 To select the Multiple Monitors mode The monitor (VGA) port on your computer is not accessible when the computer is attached to the multi function bay docking station. Right-click on the desktop to display the context menu. Click the menu item for graphic properties. Follow the on-screen instructions to change the settings.
Page 94: Connecting An External Microphone
Connecting an External Microphone If you need to use an external microphone, you need to plug in an external microphone (not supplied) and configure your default recording device before using it. To connect an external microphone Plug the microphone cable (1) into the microphone jack (2) m. ✍...
Page 95 To configure the recording device Click Start and then Control Panel. Click Sounds, Speech, and Audio Devices. Click Sounds and Audio Devices. The Sounds and Audio Devices Properties window appears. Select the Audio tab. Select your default recording device from the drop-down list under Sound recording. To use an external microphone, select Realtek HD Audio Input.
Page 96: Connecting A Universal Serial Bus (Usb) Device
Connecting a Universal Serial Bus (USB) Device To prevent your computer and/or USB devices from damage, observe the following: ❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports. ❑ Do not put the computer into a bag or carrying case when it has USB devices connected. Connecting a USB Mouse To connect a USB mouse Choose the USB port (1)
Page 97: Connecting A Usb Floppy Disk Drive
Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port (1) you prefer to use. Plug the USB floppy disk drive cable (2) into the USB port. Your USB floppy disk drive (3) is now ready for use.
Page 98: Disconnecting A Usb Floppy Disk Drive
Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction. To disconnect a USB floppy disk drive ✍...
Page 99: Connecting A Printer
Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. To connect a printer using the USB port Plug the power cord (1) of your printer into an AC outlet.
Page 100: Connecting A Printer Using The Printer Port
Connecting a Printer Using the Printer Port To connect a printer using the printer port Plug the power cord (1) of your printer into an AC outlet. Plug the printer cable (2) supplied with your printer into the printer port (3) station.
Page 101: Connecting An I.link Device
Connecting an i.LINK Device Notes on connecting i.LINK devices ❑ Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video camcorder. ❑ The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports. ❑...
Page 102: Connecting A Digital Video Camcorder
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
Page 103: Connecting To A Network (Lan)
Connecting to a Network (LAN) You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer or the optional multi function bay docking station and the other end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.
Page 104: Customizing Your Vaio Computer
Customizing Your VAIO Computer This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc. ❑ Setting the Password (page 105) ❑...
Page 105: Setting The Password
Customizing Your VAIO Computer Setting the Password In addition to the Windows password, you can use BIOS functions to set two types of passwords to protect your computer: power-on password and hard disk password. Once you have set the power-on password, you will be prompted to enter the password after the VAIO logo appears to start your computer.
Page 106 Adding the Power-on Password The power-on password is provided to protect your computer from unauthorized access. There are two types of the power-on password: machine password and user password. The machine password is provided for users with administrator rights on the computer to change all the setup options on the BIOS setup screen, as well as to start the computer.
Page 107 To add the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears. Press the <...
Page 108: Changing/Removing The Power-On Password
Changing/Removing the Power-on Password To change or remove the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 109: Adding The Hard Disk Password
Adding the Hard Disk Password The hard disk password provides additional security for the data stored on your hard disk drive. If you enable the hard disk password, this adds an extra level of security. When adding the hard disk password, you must set both the master and user passwords. The master password is provided for users with administrator rights on the computer to reset the user password on the BIOS setup screen.
Page 110 To add the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 111 Changing the Hard Disk Password To change the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 112 Removing the Hard Disk Password To remove the hard disk password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 113: Adding The Windows Password
Adding the Windows Password The Windows password comes in handy when you have to share a single computer with other people. By setting the Windows password, you can protect your user account from unauthorized access. Entry of the Windows password will be prompted after you select your user account. Make sure not to forget the password.
Page 114: Changing/Removing The Windows Password
Changing/Removing the Windows Password To change the Windows password Click Start and then Control Panel. Click the User Accounts icon. Click your user account under or pick an account to change. Click Change my password. Enter the current password under Type your current password. Enter a new password under Type a new password and the same password under Type the new password again to confirm.
Page 115: Using Fingerprint Authentication
Using Fingerprint Authentication Your computer is equipped with a fingerprint sensor to provide you with additional convenience. A small horizontal bar located at the upper right of the keyboard is the sensor of the fingerprint reader and will be referred to as the fingerprint sensor hereinafter.
Page 116: Precautions On Using Fingerprint Authentication
❑ The fingerprint authentication technology does not assure complete user authentication or complete protection of your data and hardware. Sony assumes no liabilities for any problems and damages arising out of your use of or inability to use the fingerprint sensor.
Page 117: Enrolling A Fingerprint
Enrolling a Fingerprint To use the fingerprint authentication functionality, you must enroll your fingerprint(s) in your computer. ✍ Set the Windows password on your computer before enrollment. See Adding the Windows Password To enroll a fingerprint Up to 21 fingerprints can be enrolled on a first-come, first-served basis for logging onto your system using the Boot Security functionality. If you share your computer with other people, you may not be able to use your enrolled fingerprint to log onto your system.
Page 118 If you have failed to enroll a fingerprint, follow these steps to try again. Place the top joint of your finger on the fingerprint sensor (1). Swipe your finger perpendicularly across the fingerprint sensor. Customizing Your VAIO Computer...
Page 119 Customizing Your VAIO Computer Place your fingertip flat in the center of the fingerprint sensor. Scan your fingerprint from the top joint of the finger to the fingertip. Keep your finger in contact with the fingerprint sensor while swiping. Fingerprint enrollment may fail if you move your finger too fast or too slow. Let the fingerprint sensor take about one second to scan your fingerprint. You may not be able to enroll and/or recognize your fingerprint(s) if your finger is dry or wet, wrinkled, injured, dirty, etc.
Page 120 Customizing Your VAIO Computer Logging Onto Your System To use the fingerprint authentication functionality in place of password entry to log onto your system, you need to set the power-on, hard disk, and Windows passwords and configure your computer for fingerprint authentication. For setting the power-on, hard disk, and Windows passwords, see Setting the Password (page 105).
Page 121: Using The Password Bank
Customizing Your VAIO Computer Using the Password Bank Once you have registered your user information (user accounts, passwords, etc.) for Web sites in the password bank, you can substitute fingerprint authentication for entering information required to access the password-protected Web sites. For detailed information on using the password bank, click Start, point to All Programs and Protector Suite QL, and click Help to read the help file.
Page 122 Erasing the Enrolled Fingerprints Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprint data enrolled on the fingerprint sensor after erasing the data stored on your hard disk drive. To erase the enrolled fingerprints Turn on the computer.
Page 123: Using Trusted Platform Module (Tpm)
Customizing Your VAIO Computer Using Trusted Platform Module (TPM) The embedded Trusted Platform Module (TPM) provides your computer with basic security functions. In combination with the TPM, you can encrypt and decrypt your data to strengthen computer security against inappropriate access. TPMs are defined by Trusted Computing Group (TCG) and also called security chips.
Page 124 ❑ Although your computer is provided with the latest TPM security functions, these functions do not assure complete protection of your data and hardware. Sony assumes no liabilities for any problems and damages arising out of your use of the functions.
Page 125: Important Notice
Important Notice ❑ Do not encrypt files containing keys to be used for encryption and folders including such files. Encrypting the files in the folders containing basic user keys and others, using the Encrypting File System (EFS) will disable you to launch your TPM software and decrypt the encrypted data in the following cases: ❑...
Page 126 ❑ Do not encrypt the following archive, backup, or token files. There will be no way to restore them if you carelessly encrypt them. Sony assumes no liabilities for any troubles and damages arising out of your careless encryption of the following files and folders including them.
Page 127 ❑ Do not encrypt the following password reset token or secret files. There will be no way to reset the password if you carelessly encrypt them. Sony assumes no liabilities for any troubles and damages arising out of your careless encryption of the following files and folders including them.
Page 128 Configuring the TPM To use the embedded TPM, you need to: Enable the TPM on the BIOS setup screen. Install the Infineon TPM Professional Package. Initialize and configure the TPM. To enable the TPM on the BIOS setup screen Turn on your computer. Press the F2 key when the VAIO logo appears.
Page 129 Infineon Security Platform Solution, and click Help on Security Platform. The maintenance and management of TPM-protected data must be carried out at your own risk. Sony assumes no liabilities for any defects arising out of your data maintenance and management.
Page 130: Setting Up Your Computer With Vaio Control Center
Setting Up Your Computer with VAIO Control Center The VAIO Control Center utility allows you to consult system information and specify preferences for system behavior. To use VAIO Control Center Click Start, point to All Programs, and click VAIO Control Center. The VAIO Control Center window appears.
Page 131: Using The Power Saving Modes
Using the Power Saving Modes When you use a battery pack as the power source for your computer, you can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate.
Page 132: Using Standby Mode
Using Standby Mode Standby mode turns off the LCD screen and places the storage device(s) and the CPU into a low power consumption mode. The umber power light flashes during this mode. If you do not use your computer for a long period of time while it is disconnected from AC power, place the computer into Hibernate mode or turn it off. To activate Standby mode Click Start and then Turn Off Computer.
Page 133 If the computer is not used for a certain period of time, it will enter Standby mode. To modify this, you can change the Standby mode settings. To change the Standby mode settings Click Start and then Control Panel. Click Performance and Maintenance. Click Power Options.
Page 134: Using Hibernate Mode
Using Hibernate Mode In Hibernate mode, the state of the system is saved on the hard disk drive and power is turned off. Even when the battery runs down, no data will be lost. The power indicator light is off in this mode. ✍...
Page 135: To Return To Normal Mode
To return to Normal mode Press the power button. The computer returns to its normal state. If you press and hold the power button for more than four seconds, your computer will turn off automatically. ✍ It takes more time to return to Normal mode from Hibernate mode than from Standby mode. Customizing Your VAIO Computer...
Page 136: Managing Power With Vaio Power Management
Managing Power with VAIO Power Management Power management helps you set up power schemes for running on AC power or batteries to suit your requirements for power consumption. VAIO Power Management is a software application developed exclusively for VAIO computers. With this software application, you can enhance the Windows power management functions to ensure better operation of your computer and longer battery life.
Page 137 Activating VAIO Power Management Power Schemes VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power management settings that are designed to meet specific power management needs, ranging from maximum power management to no power management. To activate a VAIO Power Management power scheme Click Start and then Control Panel.
Page 138: Setting Up Your Language With Windows Xp Professional
Setting Up Your Language with Windows XP Professional The Multilingual User Interface (MUI) feature of Windows XP Professional is available on the models with the English operating system. It allows you to change the English operating system, some software applications, and the keyboard layout into the language of your choice: French, German, Japanese, Dutch, Italian, Spanish, Czech, Finnish, Greek, Portuguese, and Swedish.
Page 139 To change the country and language settings Click Start and then Control Panel. In the Control Panel window, double-click the Regional and Language Options icon. If you do not see this icon, click Switch to Classic View on the left side. In the Regional Options tab of the Regional and Language Options window, select your language from the Standards and formats drop-down menu.
Page 140 To change the keyboard layout Click Start and then Control Panel. In the Control Panel window, double-click the Regional and Language Options icon. If you do not see this icon, click Switch to Classic View on the left side. In the Languages tab of the Regional and Language Options window, click the Details button. The Text Services and Input Languages window appears.
Page 141: Configuring Your Modem
Configuring Your Modem Before you can start using your internal modem (not all modem are built-in), or each time you use your modem while traveling, make sure that the country of the active location defined in the Phone and Modem Options dialog box matches the country you are dialing from.
Page 142 Customizing Your VAIO Computer Click Apply/OK. Your modem is configured. ✍ Before applying new country settings, please make sure your phone cable is disconnected from your computer.
Page 143: Protecting The Hard Disk
Protecting the Hard Disk Your computer has the VAIO HDD Protection utility preinstalled for customizing your settings for protecting your hard disk drive against shock hazards. You can select the sensitivity level of the built-in shock sensor to set the appropriate protection level.
Page 144: Upgrading Your Vaio Computer
Upgrading Your VAIO Computer Upgrading Your VAIO Computer Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: ❑ You should contact your dealer to install a new memory module. ❑...
Page 145: Adding And Removing Memory
Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. Notes on adding/removing memory modules ❑...
Page 146 ❑ Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from ESD. ❑ Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your computer will result in damage to the computer and any repair costs will not be covered by the warranty.
Page 147: Removing And Installing A Memory Module
Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module compartment cover.
Page 148 Remove the currently installed memory module as follows: ❑ Pull the latches in the direction of the arrows (1). The memory module is released. ❑ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2). Remove the new memory module from its packaging.
Page 149 Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any other components on the motherboard. Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open slot.
Page 150: Viewing The Amount Of Memory
Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, point to All Programs, and click VAIO Control Center. Double-click the System Information folder in the VAIO Control Center window. Double-click the System Information icon in the System Information folder. You can view the amount of system memory.
Page 151: Precautions
Precautions Precautions This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage. ❑ On Handling the LCD Screen (page 152) ❑ On Using the Power Source (page 153) ❑ On Handling Your Computer (page 154) ❑...
Page 152: On Handling The Lcd Screen
On Handling the LCD Screen ❑ Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using your computer near a window. ❑ Do not scratch the LCD screen or exert pressure on it. This could cause a malfunction. ❑...
Page 153: On Using The Power Source
❑ When the AC adapter is not used, unplug it from the AC outlet. ❑ Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.
Page 154: On Handling Your Computer
On Handling Your Computer ❑ Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
Page 155 ❑ Use only specified peripheral equipment and interface cables; otherwise, problems may occur. ❑ Do not use cut or damaged connection cables. ❑ If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In this case, allow at least one hour before turning on the computer.
Page 156: On Handling Floppy Disks
On Handling Floppy Disks ❑ Do not open the shutter manually or touch the surface of the floppy disk. ❑ Keep floppy disks away from magnets. ❑ Keep floppy disks away from direct sunlight and other sources of heat. ❑ Keep floppy disks away from any liquid. Do not let them get wet. When you are not using your floppy disk, always remove it from the floppy disk drive and use a storage case.
Page 157: On Handling Discs
On Handling Discs ❑ Do not touch the surface of the disc. ❑ Do not drop or bend the disc. ❑ Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: ❑...
Page 158: On Using The Battery Pack
❑ Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony batteries designed for this model. When installing another kind of battery, the battery will not be charged and the computer will not function.
Page 159: On Using Headphones
On Using Headphones ❑ Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
Page 160: On Handling Memory Stick Media
On Handling Memory Stick Media ❑ Do not touch the Memory Stick media connector with your finger or metallic objects. ❑ Use only the adhesive label supplied with the Memory Stick media as a label. ❑ Do not bend, drop, or apply strong shock to the Memory Stick media. ❑...
Page 161: On Handling The Hard Disk
On Handling the Hard Disk The hard disk drive has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock, or dust. Although the hard disk drive has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.
Page 162: On Updating Your Computer
On Updating Your Computer Confirm that the latest updates have been installed on your computer using the following software applications so that the computer can run more efficiently. To confirm that they have been installed on the computer, follow these steps for each software application: ❑...
Page 163: Troubleshooting
Troubleshooting Troubleshooting This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before contacting VAIO-Link. ❑ Computer (page 164) ❑ System Security (page 171) ❑ Battery (page 173) ❑...
Page 164: Computer
❑ Remove any extra memory modules you may have installed since purchase. ❑ Check that you are using the supplied Sony AC adapter. For your safety, use only genuine Sony rechargeable battery pack and AC adapter, which are supplied by Sony for your VAIO computer.
Page 165: What Should I Do If A Bios Error Appears When I Turn On My Computer
What should I do if a BIOS error appears when I turn on my computer? If the message "Press <F1> to resume, <F2> to setup" appears at the bottom of the screen, follow these steps: Press the F2 key. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 166: What Should I Do If My Computer Or Software Stops Responding
What should I do if my computer or software stops responding? ❑ If your computer stops responding while a software application is running, press the Alt+F4 keys to close the application window. ❑ If the Alt+F4 keys do not work, click Start, Turn Off Computer, and then Turn Off. ❑...
Page 167: What Should I Do If The Battery Indicator Is Flashing And My Computer Does Not Start
Why doesn't my computer enter Standby or Hibernate mode? Your computer may become unstable if the operating mode is changed before the computer completely enters Standby or Hibernate mode. To restore your computer to normal operating stability Close all open programs. Click Start, Turn Off Computer, and then Restart.
Page 168 What should I do if a message window, notifying of incompatibility or improper installation of the battery pack, appears and my computer enters Hibernate mode? ❑ This symptom could be due to the battery pack not being installed properly. To resolve this symptom, turn off your computer and remove the battery pack.
Page 169: What Should I Do If I Cannot Remember The Bios Password
What should I do if my game software does not work or it keeps crashing? ❑ Check the Web site of the game if there are any patches or updates to download. ❑ Make sure you have installed the latest video driver. ❑...
Page 170: To The Computer
Troubleshooting Why doesn't my screen turn off when the time selected for the automatic turn-off action has passed? The VAIO Original Screen Saver disables the timer setting, which you can select using the Windows power options, for your screen to turn off. Select the screen saver other than the VAIO Original Screen Saver.
Page 171: System Security
System Security How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly. You can get important Windows updates by doing one of the following: ❑...
Page 172: How Do I Keep My Antivirus Software Updated
How do I keep my antivirus software updated? You can keep the Norton Internet Security software program current with the latest updates from Symantec Corporation. To download and install the latest security update Double-click the Norton Internet Security icon on the taskbar. If you have not previously registered the antivirus software, a series of information wizards appears.
Page 173: Battery
Troubleshooting Battery How do I find the battery charging status? See Charging the Battery Pack (page 27). When is my computer using AC power? When your computer is directly connected to the AC adapter, it uses AC power, even if the battery pack is installed. When should I recharge the battery pack? ❑...
Page 174: Can My Computer Enter Hibernate Mode While Using Battery Power
Should I be concerned that the installed battery pack is warm? No, it is normal for the battery pack to be warm when it is powering your computer. Can my computer enter Hibernate mode while using battery power? Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode.
Page 175: Internet
❑ Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. ❑ Make sure that the telephone number the program is dialing is correct. ❑ Make sure the software you are using is compatible with your computer's modem. (All preinstalled Sony programs are compatible.) ❑...
Page 176: Why Is My Modem Connection Slow
Troubleshooting Why is my modem connection slow? Your computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), do any of the following: ❑...
Page 177: Networking
Networking What should I do if my computer cannot connect to a wireless LAN access point? ❑ Connection availability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using. ❑...
Page 178: Why Is The Data Transfer Speed Slow
Why is the data transfer speed slow? ❑ The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move your computer away from obstructions or closer to any access point you may be using.
Page 179 ❑ Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. ❑ If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.
Page 180: Optical Discs
Optical Discs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Restart the computer by clicking Start, Turn Off Computer, and Restart. Remove the disc from the optical disc drive.
Page 181 What should I do if I cannot play a disc properly on my computer? ❑ Make sure the disc is inserted into the optical disc drive with the label facing upward. ❑ Make sure the necessary program(s) is installed according to the manufacturer's instructions. ❑...
Page 182 Select the Hardware tab, and click Device Manager in the Device Manager box. A window with a listing of your computer's hardware devices appears. If an "X" or an exclamation point appears on the listed device, you may need to enable the device or reinstall the drivers.
Page 183 What should I do if I cannot write data to CD media? ❑ Make sure you neither launch any software application nor allow any to launch automatically, not even a screen saver. ❑ Stop using the keyboard. ❑ If you are using a CD-R/RW disc with an adhesive label affixed, replace it with one with no affixed adhesive label. Using a disc with an affixed adhesive label could cause a write error or other damage.
Page 184 What should I do if I cannot write data to DVD-RAM media using Windows functions? This Q & A entry applies to selected models only. See the online Specifications to find the type of your optical disc drive, and then Reading and Writing Optical Discs (page 64) to find about the supported disc media.
Page 185: Display
Display Why did my screen go blank? ❑ Your computer screen may go blank if the computer loses power or enters a power saving mode (Standby or Hibernate). If the computer is in LCD (Video) Standby mode, press any key to bring the computer back into Normal mode. See Using the Power Saving Modes (page 131) ❑...
Page 186 What should I do if the LCD brightness of my screen changes? The LCD brightness setting, adjusted with the Fn+F5/F6 keys, is temporary and may be restored to the original setting when your computer returns to Normal mode from Standby or Hibernate mode. To save your preference for the brightness, follow these steps: ✍...
Page 187 Troubleshooting What should I do if the Fn+F7 keys do not switch the display output to the external display connected to the monitor (VGA) port on my computer? When your computer is attached to the optional multi function bay docking station, the monitor (VGA) port on your computer is disabled.
Page 188: Printing
Printing What should I do if I cannot print a document? ❑ Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and computer. ❑ Make sure your printer is compatible with the Windows operating system installed on your computer. ❑...
Page 189: Microphone
Microphone What should I do if my microphone does not work? ❑ If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the microphone jack on your computer. ❑ Make sure that the appropriate device is selected as the default recording device. See Connecting an External Microphone (page 94) for configuring the default recording device.
Page 190: Speakers
Speakers What should I do if my external speakers do not work? ❑ If you are using a program that has its own volume control, make sure the volume control is properly set. See the program's help file for more information. ❑...
Page 191: Pointing Device
Pointing Device What should I do if my pointing device does not work? ❑ You may have disabled the pointing device without connecting a mouse to your computer. See Using the Pointing Device (page 34). ❑ Make sure that a mouse is not connected to your computer. ❑...
Page 192 How do I change the left and right button assignments? If your computer is interpreting a single-click as a double-click, you may want to change the button assignments. Follow these steps: Click Start and then Control Panel. Click Printers and Other Hardware. Click Mouse.
Page 193: Keyboard
Keyboard What should I do if the keyboard configuration is wrong? The language layout of your computer's keyboard is labeled on the packaging box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and then Control Panel Click Date, Time, Language and Regional Options, and click Regional and Language Options.
Page 194: Floppy Disks
Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does not appear, follow these steps: Close all programs that are accessing the floppy disk drive.
Page 195: Audio/Video
✍ i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other.
Page 196: Memory Stick Media
Use of recorded music requires permission from the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick media? Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.
Page 197: Peripherals
Peripherals What should I do if I cannot connect a USB device? ❑ If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check if the battery is charged. If you are using a printer, check if the power cable is connected properly to the AC outlet.
Page 198: Multi Function Bay Docking Station
Troubleshooting Multi Function Bay Docking Station What should I do if I cannot use the devices connected to the multi function bay docking station? Be sure to use the AC adapter supplied with the multi function bay docking station to connect the docking station to a power source.
Page 199: What Should I Do If I Cannot Print A Document
What should I do if I cannot print a document? ❑ Make sure the printer driver supports Windows XP. Ask the manufacturer of your printer for the driver that supports Windows XP. ❑ The printer port on the multi function bay docking station is internally connected to the USB. Follow these steps to check the printer port settings: Click Start and then Control Panel.
Page 200 ❑ If the bidirectional communication functions are provided with your printer, disabling the functions on your computer may enable printing. Follow these steps: Click Start and then Control Panel. Click Printers and Other Hardware. Click Printers and Faxes. Right-click the printer icon and select Properties. Click the Ports tab.
Page 201 Troubleshooting Why does an error message appear when I press the UNDOCK button or select Undock Computer from the Start menu? When any device inserted or connected to the multi function bay docking station is in use, you cannot disconnect your computer form the docking station.
Page 202: Support Options
Internet. Using a personalized account, you can log your technical queries with ease. ❑ VAIO-Link help lines: Before contacting VAIO-Link by telephone, try to solve the problem by reading the printed and non- printed documentation. ❑ Visit the other Sony Web sites: ❑ http://www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO community.
Page 203: E-Support
Support Options e-Support What is e-Support? You have searched our user guides and Web site (http://www.vaio-link.com) but have not found an answer to your question/ issue? e-Support is the ideal solution for you! Our e-Support Web Portal is an interactive Web site on which you can submit any technical query you may have regarding your computer and receive answers from our dedicated support team.
Page 204 Support Options Can I submit my questions at any time? Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm. Is there a cost involved for using e-Support? No, this is a complete free of charge service offered to all registered VAIO customers! How do I know when the e-Support Team has handled my query/case? As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you that your case has...
Page 205: Trademarks
Macromedia and Flash are trademarks of Macromedia, Inc. The ExpressCard word mark and logos are owned by the PCMCIA and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
Page 206 Support Options SD Logo is a trademark. SDHC Logo is a trademark. ™ MultiMediaCard is a trademark of MultiMediaCard Association. All other names of systems, products and services are trademarks of their respective owners. In the manual, the ™ or ® marks are not specified.

This manual is also suitable for:

Vgn-bx61xn Vgn-bx61vn

Sony VGN-BX61MN User Manual

Quick Links

User Guide

Related Manuals for Sony VGN-BX61MN

Summary of Contents for Sony VGN-BX61MN

This manual is also suitable for:

Table of Contents
