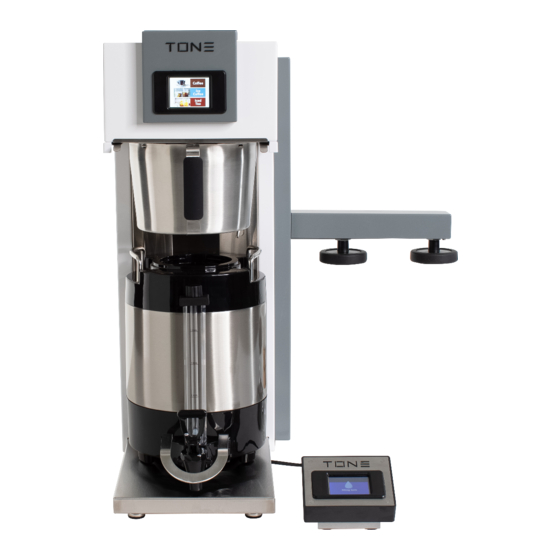

- Page 1 TOUCH TOUCH DIGITAL MANUAL NOVEMBER 2021 NOVEMBER 2021 NOVEMBER 2021 NOVEMBER 2021 NOVEMBER 2021 NOVEMBER 2021 VERSION 1.2 VERSION 1.2 I N STALLATI O N A N D U S E R I NST R U C TI O NS...
- Page 2 TONE product, or damage to other objects in the vicinity. This document and all other collateral documents are subject to change at the sole discretion of TONE.
-
Page 3: Table Of Contents
TABLE OF CONTENS 1. PROPER USE 1.1 For your safty 1.2 Explanation of safety warnings DESCRIPTION OF THE PRODUCT 2.1 Purpose of the Product 2.2 Contents 2.3 Appliance overview INITIAL USE 3.1 Place of use 3.2 Pumbing Connection 3.3 Electrical Connection 3.4 Initial set-up PROCESS/WORKFLOW 4.1 Brewing... -
Page 4: Proper Use
PROPER USE 1. PROPER USE INFORMATION COR- RECT DISPOSAL OF THE This machine shall be destined exclusively to PRODUCT ACCORD- the use it has been expressly designed for. ANCE WITH EC DIRECTIVE Any other use shall be considered illsuited 2012/19/EU and improper. - Page 5 In order to ensure the e ciency and correct functioning of the appliance, it is necessary WARNING BEFORE to follow the instructions provided by the SERVICING OR OPENING manufacturer and to carry out its ordinary this device make sure the maintenance.
-
Page 6: Description Of The Product
DISCRIPTION OF THE PRODUCT 2. DESCRIPTION OF THE PRODUCT 2.1 Purpose of the Product 2.2 Contents 1x Machine 02 brewer This machine shall be destined exclusively to 1x Filter coffee basket the use it has been expressly designed for. 1x External touch unit Any other use shall be considered illsuited 1x ... -
Page 7: Initial Use
3. INITIAL USE m run, use 1/4“ copper tubing and connect to 1/2“ or larger water line. For longer runs, Before using your TONE Touch 02 use 3/8“ copper tubing & connect to 1/2“ or larger water line and provide an adapter 3.1 PLACE OF USE... -
Page 8: Initial Set-Up
INITIAL USE color coding of each conductor at the elec- trical source. For models without a cord, re- 3.4 INITIAL SET-UP move the rear top cover then the rear panel and feed the cord through the strain relief. Insert an empty brew basket into the brew Connect cord to the terminal block as indi- rails. -
Page 9: Process/Workflow
4. PROCESS/WORKFLOW 4.1 BREWING – MAIN BREW HEAD desired. If unit has been idle for some time, a tank fi lling screen may display as the tank Place coffee, tea or oth- is refi lled. A heating screen will display, if the er product to be brewed into a paper fi lter with- recipe temperature is set higher than the... - Page 10 PROCESS/WORKFLOW recipes in sequence. This is a conven- Successful password entry will bring you ient way to quickly change status to ac- tive inactive multiple recipes. to the ‘Programming/ Service’ menu screen. These are the cate- Pressing the “Active” button will toggle the status of the recipe between available and gories of programma- not available.
- Page 11 trate) would cause all values on this screen dispense point and will not go through the basket. There is one brew valve turned on to be greyed out as none of the items would be applicable. Press return to return to the of the two possibly available.
-
Page 12: Personalize
PROCESS/WORKFLOW return to the ‘edit recipe name’ screen. Se- Save to store the service telephone num- lect return to go back to the ‘recipe settings’ ber. CLR will clear entry without exiting the screen then press return again to return to screen. -
Page 13: Parameters
4.4 PARAMETERS Pressing cancel will The ‘brewer parame- exit the screen. ters’ screen is meant for factory settings. Contact factory The calibrate screen password authoriza- will display. Items that tion for these settings. are not installed or Press the “Brewer Pa- that have been disabled in the parameters rameters”... -
Page 14: Service
CARE AND CLEANING dispense cycle should be measured and the Press the “Counters” value entered on this screen. Running mul- display tiple cycles and using a weighted average ‘counters’ screen. The will yield best results. Press the fi nish key to total cycles and gal- return to the ‘calibrate’... -
Page 15: Brewing - Sidearm
torial or descriptive icons will be displayed ‘User Password’ with the volume of the brew below to help screen with keypad distinguish between recipes. Dependent on will be displayed. Type the number of active recipes within a bev- in the 4 digit user erage type, there may be more than one password (3650). -
Page 16: Cleaning
To guarantee proper functionality of TONE ready to brew. equipment it is necessary to clean the de- vice on each day. To clean the surface of TONE equipment is 5.3 DESCALING recommended to use a damp cloth rinsed in liquid detergent. -
Page 17: Fault Rectification
Do not dispose of the Type TOUCH 02 product as normal domestic waste. Please fi nd your local collection points for electri- Dimensions in mm 585 x 715 x 627... - Page 18 TONE - Please see original MERCHANTABILITY OR FITNESS FOR A equipment manufacturers warranty, TONE PARTICULAR PURPOSE. Kaffeemaschinen AG will follow. The agents, dealers or employees of TONE These warranty periods run from the date Kaffeemaschinen AG are not authorized to...
- Page 19 TONE Kaffeemaschinen AG Address: Kasernenstrasse 5 3600 Thun Switzerland Device Name: TONE TOUCH 02 Model Type: 90600 Function: Coffee Machine We herewith declare under our sole responsibility that the above mentioned device meets all the provisions of the following EC Council Directives and Standards. All supporting documentations are retained under the premises of the manufacturer.
-
Page 20: Appendix - Condensed Operation
APPENDIX APPENDIX - CONDENSED OPERATION ing the phone number and using keypad and save function. The company name may be edited using the L,R keys to select let- BREWING ter to be changed. Then use Up/Down keys to change letter. Change between symbols Insert funnel with product to brew as ap- and upper and lower case letters using key plicable. - Page 21 set error messages. Press Finish to return tion of the valve. If turned on without an to Service Menu. Press the Counters key actual valve, recipe would be short any pro- to view water usage and number of cycles grammed bypass. information.
