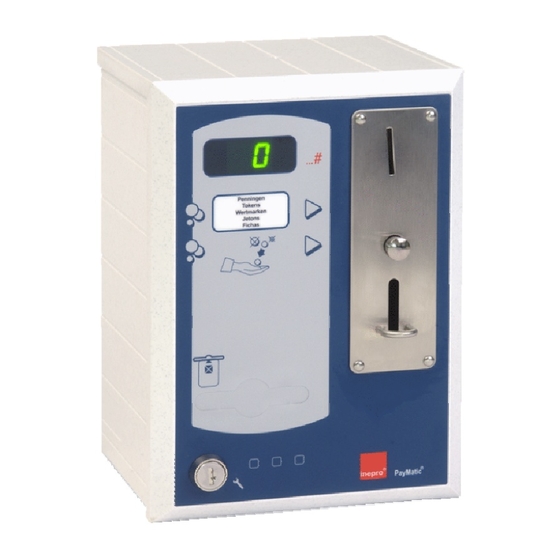

Inepro PayMatic AD2400 Instruction

Instruction
Converting a PayMatic AD2400 from coin acceptor to push button
Converting a PayMatic AD2400 from coin acceptor to push button
1. Open the PayMatic and remove the two plugs from the coin acceptor.
2. Cut the plugs off and remove the insulation at the end of the wire.
3. If you are going to twist the wires to connect them (not recommended) remove the JST plug from the
push button assembly. We recommend soldering the wires. In that case remove the wired of the
button assembly completely.
