Summary of Contents for Bebcare AIR

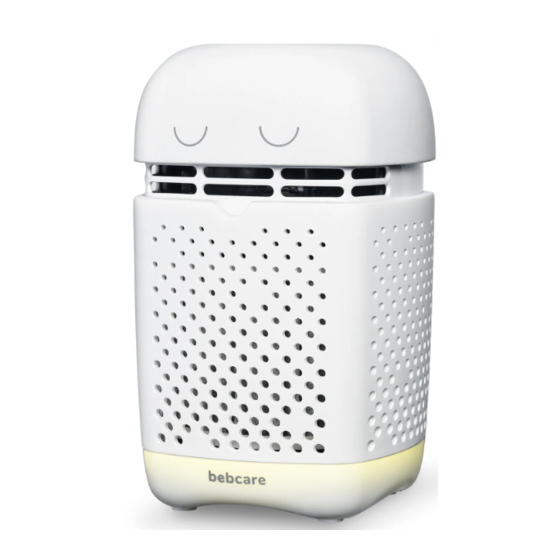

- Page 1 BEBCARE AIR Portable Smart Baby Fan with Air Purifier and Air Quality Sensor...
- Page 2 - Night light with adjustable colour and intensity - Lullaby playing to comfort baby - Auto fan speed mode that deliver the most appropirate amount of clean air to baby according to environmental condition - Manual mode with 3 adjustable fan speed...
- Page 3 Power supply This baby fan is incorporated with Li battery. Once the battery level is low, the LED below Power on/off button 1 or Fan speed button 3 will start flashing. Connect the supplied USB cable to USB-C port 11, the LED below will show pulsating, indicating the battery is under charging.
- Page 4 Controls Layout Power On/OFF and Auto mode button Air quality indicator/night light Music button Locking screw Fan speed button Air intake holes for filter Wind sweeping button Speaker Night light button USB-C port Clean air outlet PM2.5 sensor air inlet...
- Page 5 4 again to switch off wind sweeping. 6. The clean air blowing out from outlet 6 is filtered by a composite filter. This filter has 3 layers. The first layer is active carbon which eliminates all the bad smell, smoke, VOC and formaldehyde. The second layer filters off 99.5% of H1N1 flu virus and the third layer is a EPA filter that filters off...
- Page 6 12 , so it is advisable not to block these holes for correct reading. 10. The filter intake air through the holes 9 on all four sides and then blow out the clean air from outlet 6 . It is recommended not to block the holes 9 and outlet 6 .
- Page 7 b. Disengaging the clip from mount c. Installing the baby fan to mounting kit...
- Page 8 d. Installing the baby fan in stroller or cot e. Moving the baby fan horizontally to face towards baby...
- Page 9 Loosen the screw nut to allow baby fan swivel in different direction 14. Download the Bebcare Air app from Apple store or Google play. The operation of app as follow :...
- Page 10 Getting Started with Bebcare Air Portable comfort fan + air purifier for your baby...
- Page 11 Getting Started with Bebcare Air Portable comfort fan + air purifier for your baby Follow the pairing instructions by clicking on the “Settings” icon in top left of main screen. Please ensure Bluetooth is turned ON in your device. Click on “Pair” to begin the device pairing...
- Page 12 Getting Started with Bebcare Air Portable comfort fan + air purifier for your baby Follow the step-by-step instructions in the app to finish pairing the Bebcare Air device. Please ensure your Bluetooth is ON. Once paired, the Air Quality Index (AQI) reading shows up.
- Page 13 Getting Started with Bebcare Air Portable comfort fan + air purifier for your baby Features on the Bebcare Air Air sweep Manual fan speed speed / on off Nightlight Music lullabies Comfort fan + Clean air outlet Air quality indicator + Nightlight Please contact hello@bebcare.com...
