Summary of Contents for RHINO INTKIT-A1

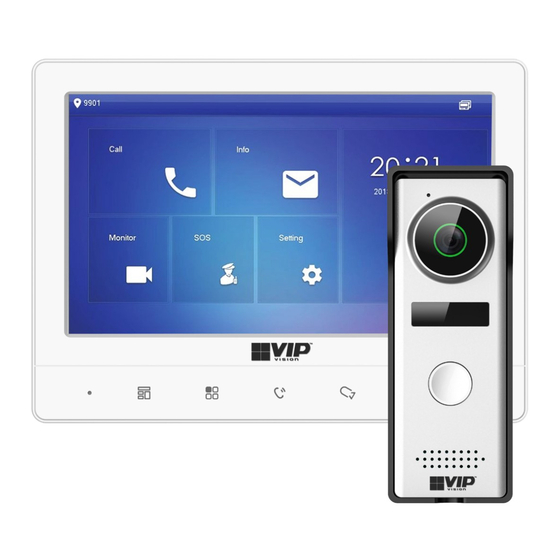

- Page 1 INTKIT-A1 Analogue 4-Wire Video Intercom Quick Start Guide INT-A1-Q20121...
-
Page 2: Included Components
If using a mounting box, ensure the box is also sealed, and the included waterproof rubber seals are used when installing the screws. 2. Included Components VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q20121... -
Page 3: Mounting Guide
3. Mounting Guide Visit help.c5k.info for more information and support... -
Page 4: Front Panel
Press to unlock the door where the door station(VTO) calls. • In set up mode, press to exit set up menu. Door Station Button Description Call • Press once to call door monitor(s) VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q20121... -
Page 5: Back Panel
5. Back Panel Name Description 12VDC positive input Power 12VDC negative input Analogue camera signal input Camera Ports Analogue camera signal ground P1, P3 12VDC positive output to door station V1, V3 Video signal Door Station Ports A1, A3 Audio signal Common ground for door stations P2, P4 12VDC positive input to monitors... -
Page 6: Wiring & Power
• If you wish to add additional Door Stations or Monitors, replace the Power Supply with one with the following output: 2 Devices 12VDC 2A 3 Devices 12VDC 3A 4 Devices 12VDC 4A 5 Devices 12VDC 5A VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q20121... - Page 7 7. Wiring Example - One Door Station and One Indoor Monitor Visit help.c5k.info for more information and support...
- Page 8 8. Wiring Example - One Door Station and Three Indoor Monitors VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q20121...
- Page 9 9. Two Door Stations and Three Indoor Monitors Visit help.c5k.info for more information and support...
-
Page 10: Setup Menu
Increase Vol (volume), Bright (brightness), Contrast and BellVol (bell volume), change Bell tone and turn off DND (do not disturb) • Select an item to adjust or change • Exit the menu and lock the screen VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q20121... - Page 11 Notes Visit help.c5k.info for more information and support...
- Page 12 help.c5k.info For detailed technical support and software downloads, help.c5k.info visit our Help Centre at: All products, designs and software may be subject to change without prior written notice. Information, layout and graphics presented in this guide are the property of their respective owners. www.c5k.info for more information.
