Summary of Contents for Christie WCLW18TE

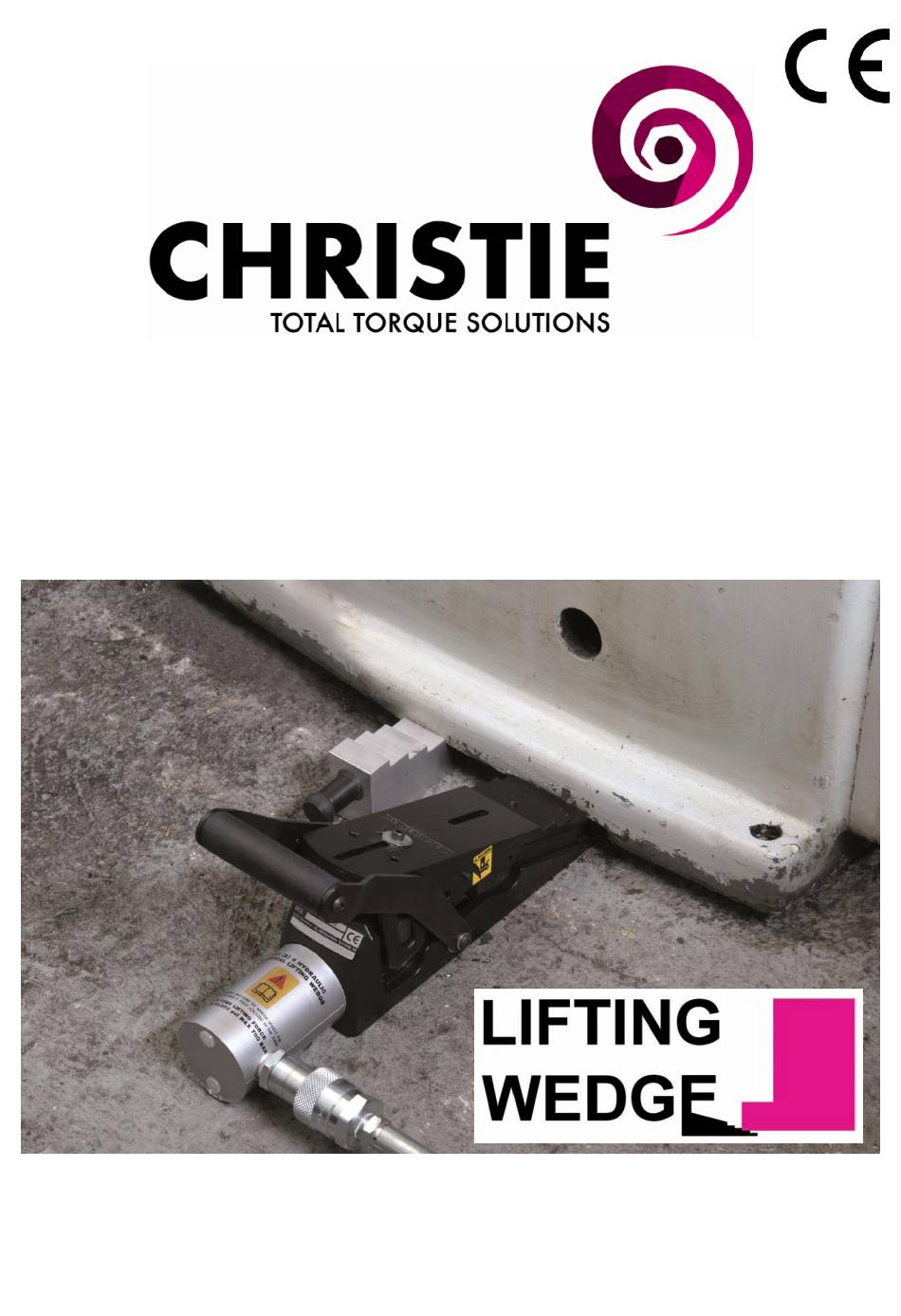

- Page 1 WCLW18TE HYDRAULIC VERTICAL LIFTING WEDGE OPERATOR INSTRUCTION MANUAL Ref: WCOI.063 Date: June 2015 Issue: 2...
-
Page 2: Table Of Contents
Weights and Dimensions Troubleshooting E.C. Declaration of Conformity 1 – INTRODUCTION The Christie WCLW18TE Hydraulic Vertical Lifting Wedge is an aid for assisting with the lifting and installation of plant and heavy equipment. Access gap required: 9.5 mm (0.37”) ... - Page 3 The operator damaged parts with genuine Christie parts. must have read and understood all instructions, Christie parts are designed to fit properly and safety issues, cautions and warnings before withstand rated loads. For repair or maintenance starting to operate the Christie equipment.
-
Page 4: Kit Components / Kit Options
1 x Carry-Case with Protective Foam Inserts 4 – TECHNICAL DATA The CHRISTIE WCLW18TE Hydraulic Vertical Lifting Wedge will generate 18 Tons (180 kN) lifting force from 10,000 psi (700 bar) of hydraulic pressure. The tool requires a minimum access gap of 9.5 mm (0.37”) on the first step and will lift vertically. -
Page 5: How The Tool Works
The operation procedure is exactly the same for both the WCLW18TE Mini and Standard Kits. The WCLW18TE Mini Kit does not contain either a 10,000 psi (700 bar) hydraulic hand pump or a 10,000 psi (700 bar ) hydraulic hose. These items will come from the user’s inventory. - Page 6 3) Place the wedge under the item to be lifted. The step to be used must be fully inserted into the access gap - ensure that the heel of the step is in contact with the outer surface of the object to be lifted and that the wedge is positioned centrally.
-
Page 7: Using The Stepped Block Accessory
6.2 – USING THE STEPPED BLOCK ASSEMBLY The Christie Stepped Block enables the WCLW18TE Hydraulic Vertical Lifting Wedge to be used to lift an item with a larger gap, and will lift the item further with less penetration 1) Attach the stepped block to the tool using the M6 countersunk screw. -
Page 8: Examination, Maintenance And Storage
7 – EXAMINATION, MAINTENANCE AND STORAGE On return from each job and before allocation against subsequent work the completeness of the Christie WCLW18TE kit must be established and items examined to ensure that they are serviceable. Any missing or damaged items are to be replaced as soon as possible and prior to the tool being used again. -
Page 9: Parts Lists
8 – PARTS LIST WCLW18TE TOOL... - Page 10 HP350S HAND PUMP...
-
Page 11: Weights And Dimensions
9 – WEIGHTS AND DIMENSIONS WEIGHTS WCLW18TE Wedge with Hydraulic Cylinder = 8.5 kg (18.7 lbs) Carry-Case with Protective Foam Inserts = 7.5 kg (16.5 lbs) Gross Mini Kit Weight = 9.8 kg (21.5 lbs) Gross Standard Kit Weight = 22.5 kg (49.6 lbs) -
Page 12: Troubleshooting
Hoses are connected and the tool There is dirt or a damaged valve seat The pump should be sent to W. Christie advances but there is minimal pressure within the pump unit. (Industrial) Limited for repair. on the pump handle and the handle is rising back of its own accord. -
Page 13: Declaration Of Conformity
European Machinery Directive 2006/42/EC published on the 9 June 2006 W Christie (Industrial) Ltd, Meadowbank Road, Rotherham S61 2NF, United Kingdom. This machinery has been designed and manufactured in accordance with the following transposed harmonised European Standard:- Safety of Machinery –...
