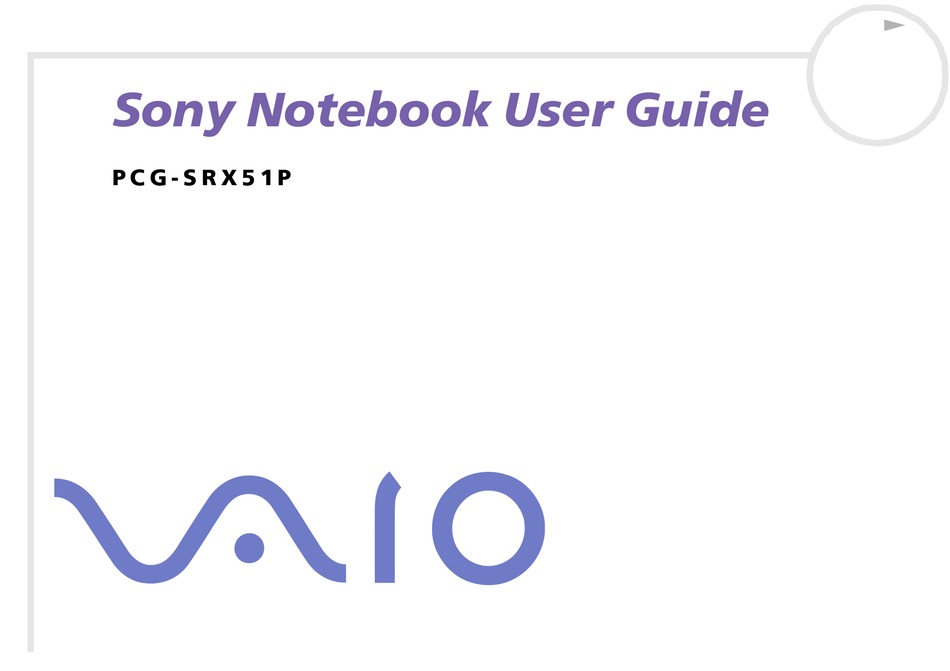

Page 1 Sony Notebook User Guide P C G - S R X 5 1 P...
Page 2: Read This First
Macrovision Corporation. Reverse engineering or disassembly is prohibited. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user licence agreement.
Page 3 All other trademarks are trademarks of their respective owners. ® NERGY ® As an E Partner, Sony has determined that this product meets the E NERGY T AR The International E NERGY of computers and their office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption.
Page 4: Safety Information
Safety information Owner's record The serial number and model number are located on the bottom of your Sony notebook. Record the serial number in the space provided here. Refer to the model number and serial number if you call VAIO-Link.
Page 5 Read this first ❑ Magnets ❑ Magnetic bracelets. Audio/video ❑ Audio and picture distortion may occur if this equipment is positioned in close proximity to any equipment emitting electromagnetic radiation. Connectivity ❑ Never install modem or telephone wiring during a severe lightning storm. ❑...
Page 6: Regulatory Information
Read this first Regulatory information Sony hereby declares that the PCG-SRX51P product is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC (radio equipment and telecommunications terminal equipment Directive). This product complies with EN 55022 Class B and EN 55024 for use in following areas: residential, commercial and light-industrial.
Page 7 Read this first Depending on the country, usage of the built-in Bluetooth™ functionality may be restricted. For country-specific details, please refer to the Bluetooth™ Safety Regulations flyer. Depending on the country, usage of the Wireless LAN functionality may be restricted. For country-specific details, please refer to the Wireless LAN Safety Regulations flyer.
Page 8 Read this first Disposing of lithium ion batteries ❑ Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly at end-of-life. ❑ Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Page 9 ❑ Portability - The rechargeable battery pack provides hours of use without AC power. ❑ Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s advanced multimedia applications, games, and entertainment software. ❑...
Page 10: Documentation Pack
❑ A Modem Regulations flyer. Online documentation The Sony Notebook User Guide: ❑ Using your notebook shows you how to use the standard components of your system. In this part of the manual you will also find out what you can do with a Memory Stick™ and how to use Wireless LAN and the Bluetooth™...
Page 11 Welcome Refer to your Software Guide for information on the bundled software and the Sony applications. ❑ About the Software is a short description of the features of the software pre-installed on your system. ❑ Using Video software explains how to use Sony video software: DVgate, MovieShaker and Smart Capture.
Page 12 Welcome Your notebook and its accessories The following hardware* items are in the box: Main unit Rechargeable battery pack Display adapter Product recovery CD-ROMs Documentation pack * See the online Specifications document. If you find an extra phone plug in the box, please see Using the correct phone plug AC adapter Power cord (country-specific) Phone cable (country-specific)
Page 13: Ergonomic Considerations
Welcome Ergonomic considerations You will be using your notebook as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments. ❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touchpad, or external mouse.
Page 14 Welcome ❑ Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well. ❑...
Page 15: Table Of Contents
Using your notebook Using your notebook This section describes how to start using your computer and how to use your computer’s internal and external devices. ❑ Locating controls and connectors ❑ Connecting a power source ❑ Starting your notebook ❑ Shutting down your notebook ❑...
Page 16: Locating Controls And Connectors
Using your notebook Locating controls and connectors Right Bluetooth™ antenna MagicGate Memory Stick™ slot USB port Headphone connector Line-in/microphone connector Ventilation slot Cable lock slot* DC In * You can use the cable lock slot to lock down your notebook. You just need to loop an anti-theft lock around a desk or a chair, insert the lock into the slot of your notebook and set the combination.
Page 17 Using your notebook Left Ethernet network connector (page 82) PC Card slot (page 44) Wireless switch (Bluetooth™ (page 60) or Wireless LAN) (page 62) PC Card eject button (page 44) Monitor connector (page 70) S400 i.LINK™ connector (page 79) DC Out/VAIO peripheral (page 79) original connector Phone line jack...
Page 18 Using your notebook Front RELEASE LOCK...
Page 19 Using your notebook Hard disk drive indicator Num Lock indicator Caps Lock indicator Scroll Lock indicator LCD screen Keyboard MagicGate Memory Stick™ slot window Power indicator Battery indicator Memory Stick™ indicator Back Battery connector (page 29) (page 29) (page 29) (page 29) (page 30) (page 26)
Page 20 Using your notebook Bottom Battery lock lever Battery release lever Memory module cover Reset switch (page 21) (page 21) (page 102)
Page 21: Connecting A Power Source
Using your notebook Connecting a power source You can use either an AC adapter or a rechargeable battery pack as a power source. Using the AC adapter To use the AC adapter, proceed as follows: Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer. Plug one end of the power cord (3) into the AC adapter.
Page 22: Using The Battery Pack
Using your notebook Using the battery pack You can use a battery pack as a source of power. The battery pack supplied with your computer is not fully charged at the time of purchase. Inserting the battery pack To insert the battery, proceed as follows: Move the lock lever (1) on the bottom of the computer to the Unlock position.
Page 23 Using your notebook Charging the battery pack To charge the battery pack, proceed as follows: Connect the AC adapter to the computer. Insert the battery pack. The computer automatically charges the battery (1) (the battery indicator (2) light flashes in a double blink pattern as the battery charges).
Page 24: Removing The Battery Pack
Using your notebook ✍ When the battery is running out of power, both the battery and power indicators blink. Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.
Page 25: Starting Your Notebook
Using your notebook Starting your notebook To start your computer, proceed as follows: Slide the LCD lock lever (1) to Release, and lift the cover. Slide the power switch (2) of the computer until the green power indicator (3) light turns on. If necessary, press <Fn>+<F5>...
Page 26: Shutting Down Your Notebook
Using your notebook Shutting down your notebook It is important that you shut down your computer properly so as not to lose unsaved data. To shut down your computer, proceed as follows: Click the Start button. Click Turn Off Computer. The Turn off computer screen appears.
Page 27: Using The Keyboard
Using your notebook Using the keyboard Your keyboard is very similar to a desktop computer’s, but the keyboard has additional keys that perform specific notebook-related tasks.
Page 28 Using your notebook Keys Escape key (1) Function keys (2) Print Screen key (3) Correction keys (4) <Fn> key (5) Navigation keys (6) Application key (7) Numeric keypad area (8) Operator keys (9) ® Windows key (10) Descriptions The <Esc> (Escape) key is used to cancel commands. The twelve function keys along the top of the keyboard are used to perform designated tasks.
Page 29 Using your notebook Combinations and functions with the Windows Combinations + <F1> + <Tab> + <E> + <F> + <Ctrl> + <F> + <M> <Shift> + + <M> + <R> <Fn> + + <Insert> Functions ® Displays the Windows Help and Support Center. Switches the selected button on the taskbar.
Page 30 Using your notebook Indicators Indicator Power Battery Memory Stick™ Bluetooth™ Light Hard disk Num Lock Caps Lock Scroll Lock Functions Power on: lights green. Standby mode: flashes umber. Hibernate mode: turns off. Indicates the status of the battery inserted in the computer.
Page 31 Using your notebook Combinations and functions with the <Fn> key Combinations/ Feature <Fn> + (ESC): Standby <Fn> + (F3): speaker switch <Fn> + (F4): speaker volume <Fn> + (F5): brightness control <Fn> + (F7)*: switch to the external display <Fn> + (F12): Hibernate <Fn>...
Page 32: Using The Touchpad
Using your notebook Using the touchpad The keyboard contains a cursor-pointing device, your touchpad. You can point to, select, drag, and scroll objects on the screen using the built-in touchpad. Action Description point Slide one finger on the touchpad (1) to place the pointer (4) on an item or object.
Page 33: Using The Jog Dial
Using your notebook Using the Jog Dial™ Your computer is equipped with a Jog Dial™ (1). You can turn (2) and press (3) the Jog Dial™ to scroll the window, select software, adjust the internal speaker volume, and so on. The Jog Dial Navigator software includes the following features: Dial Up Tool Folder Browser...
Page 34 Using your notebook Starting Jog Dial Navigator To launch Jog Dial Navigator, proceed as follows: ❑ Press the Jog Dial™. ❑ Double-click the Jog Dial Navigator icon The Jog Dial Indicator window appears at the top of the screen ✍ Right-clicking the Jog Dial Navigator icon in the taskbar will give you additional options.
Page 35 Using your notebook Switching modes When you are working in an application supporting the Jog Dial™ functions, you can use either Scroll mode or Application mode. By switching modes, you change the functions that can be performed using the Jog Dial™.
Page 36 Using your notebook Jog Dial Navigator: Displays items such as menus and file names, which you can select with the Jog Dial™. Shift indicator: This lights up when the keyboard <Shift> key operation (using the Jog Dial™ while the <Shift> key is held down) is enabled Close button: Click this to close the Jog Dial Navigator window and enter Scroll mode.
Page 37 Using your notebook Software not supporting Jog Dial Navigator Even if the software in use does not support the Jog Dial™ functions, you can scroll the window or adjust the window size. Action Turn the Jog Dial™ Press the Jog Dial™ Press <Alt>...
Page 38 Using your notebook Using the Jog Dial Launcher To start the Jog Dial Launcher, proceed as follows: ❑ In the Indicator window, click the arrow icon on the left ❑ Click the Jog Dial Navigator symbol on the right . The Jog Dial Launcher window appears.
Page 39 Using your notebook Changing Jog Dial Navigator settings You can change the operation and display of Jog Dial Navigator with the options in Jog Dial Setting. To display the Jog Dial Setting dialog box, proceed as follows: ❑ Right-click the Indicator window or the Jog Dial Navigator icon Setting from the menu.
Page 40 Using your notebook Click on a tab to display the setting items. Activity mode tab Activity setting tab Display/Sound tab Activity mode settings are enabled after you reboot your computer. Using both scroll and application function (normal activities): This is the normal activity mode setting for Jog Dial Navigator.
Page 41: Using The Dvd-Rom I.link™ Drive
Using your notebook Using the DVD-ROM i.LINK™ drive You can use the external i.LINK™ drive to listen to audio CDs or use the recovery CDs and play DVDs. Setting up the drive The i.LINK™ drive is delivered with the following components: DVD-ROM drive VAIO peripheral cable Vertical installation base.
Page 42 Using your notebook Connecting the drive Next to your computer’s S400 i.LINK™ connector is a VAIO peripheral original connector. The i.LINK™ drive’s cable has a two-pin plug that has to be connected into both the S400 i.LINK™ connector and the VAIO peripheral original connector.
Page 43: Inserting A Disc
Using your notebook Removing the drive To remove the drive, proceed as follows: Pull the two-pin end of the i.LINK™ drive’s cable from the notebook’s S400 i.LINK™ connector and the VAIO peripheral connector. Inserting a disc To insert a disc, proceed as follows: Turn on the computer.
Page 44 Using your notebook Using the DVD function To achieve optimum performance when playing DVD-ROM discs, you should follow these recommendations. ❑ You can play DVDs using the DVD-ROM drive and the WinDVD software. See the help file on the WinDVD software for details.
Page 45: Using Pc Cards
Using your notebook Using PC Cards Your computer includes a PC Card slot. PC Cards allow you to connect portable external devices. Inserting a PC Card To insert a PC Card, proceed as follows: Insert the PC Card into the PC Card slot, front label facing up (1). Gently push the card into the slot until the card is fixed into the connector.
Page 46 Using your notebook Removing a PC Card Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly. If you want to remove a PC Card when your computer is off, skip steps 1 to 7. To remove a PC Card, proceed as follows: Double-click the Safely Remove Hardware icon in the taskbar.
Page 47 Using your notebook Press the PC Card release button. The PC Card pops out. ✍ If you unplug the PC Card from the computer when it is still turned on, your system might crash and you might lose data that you did not save before. While the card is inserted, your computer may not enter the Hibernate power management mode.
Page 48: Using Memory Stick
There are currently two different types of Memory Stick™: ❑ The generic Memory Stick™, coloured blue. ❑ The MagicGate Memory Stick™, coloured white. ✍ You can purchase Memory Sticks™ from the Sony Style website (http://www.sonystyle-europe.com), or from your local Sony dealer.
Page 49 Using your notebook Why Memory Stick™? Sony's vision is to expand the world of communication, promoting the portability of digital data. The Memory Stick™ is the resulting medium, through which digital devices can be instantly connected. With it, you can download data from any compatible device, then transfer it to another in a single and instant transfer.
Page 50 Using your notebook Generic Memory Stick™ The original Memory Stick™, blue in colour, can be used to record image data taken with digital still cameras, etc. or data from the PC. With it, you can record, play back and transfer various kinds of data at any given time.
Page 51 MagicGate is a copyright protection technology that complies with the standards set by SDMI (Secure Digital Music Initiative, an organization working to draw up industry standard specifications in order to protect copyrights of digital music). logo indicates the copyright protection system devised by Sony. It is not meant to guarantee compatibility with other media.
Page 52 Using your notebook MagicGate MagicGate refers to the copyright protection technology used by the MagicGate Memory Stick™ and other MagicGate Memory Stick™ compatible devices. The Memory Stick™ Walkman and MagicGate Memory Stick™ work together to check the data and ensure it complies with copyright protection.
Page 53 Using your notebook Sony offers the MagicGate Memory Stick™ and Memory Stick™ Walkman with a copyright protection function that complies with SDMI standards, thereby providing an environment where individuals can record and enjoy third-party music data without worrying about copyright infringement.
Page 54 Using your notebook ❑ Digital printers ❑ AIBO the Sony Entertainment Robot To find out more about the products available in your country, go to: http://www.sonystyle-europe.com Write-protecting a Memory Stick™ Memory Sticks™ are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting.
Page 55: Inserting A Memory Stick
Using your notebook Inserting a Memory Stick™ To insert a Memory Stick™, proceed as follows: Once you have stored your data from your digital device, insert the Memory Stick™ with the arrow facing up and toward the Memory Stick™ slot. Carefully slide the Memory Stick™...
Page 56: Removing A Memory Stick
Using your notebook Removing a Memory Stick™ To remove a Memory Stick™ using the Memory Stick™ slot, proceed as follows: Check that the access light is off. Push the Memory Stick™ in toward the notebook. The Memory Stick™ ejects. Pull the Memory Stick™ out of the slot. ✍...
Page 57: Using The Modem
Using your notebook Using the modem Your notebook is equipped with an internal modem. You need to connect to a phone line to take advantage of online services and the Internet, but also to register your computer and software online, and to contact VAIO-Link. To connect a phone line, proceed as follows: Plug one end of the phone cable (1) into the phone line jack on the computer.
Page 58 Using your notebook Using the correct phone plug In the box you may find two phone plugs. Make sure you use the correct one for the country you are in, as follows: UK: The connector can be identified by its cuboid shape and flat pins.
Page 59: Using Power Saving Modes
Using your notebook Using power saving modes When you use a battery as the source of power for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate.
Page 60: Using Hibernate Mode
Using your notebook Using Hibernate mode The state of the system is saved on the hard disk and power is turned off. The power indicator light is off in this mode. To activate Hibernate mode, proceed as follows: Press <Fn>+<F12>. The Preparing to Hibernate screen appears and the notebooks enters Hibernate mode.
Page 61: Using The Bluetooth™ Functionality
Using your notebook Using the Bluetooth™ functionality The Bluetooth™ wireless technology enables you to establish wireless communication between your notebook and other Bluetooth™ devices such as a notebook, a mobile phone or a modem station without any cable within a 10 to 100 metres range in open space. All Bluetooth™...
Page 62 Using your notebook Bluetooth™ security The Bluetooth™ wireless technology has an authentication function, which allows you to make sure with whom you communicate. With the authentication function, you can avoid any anonymous Bluetooth™ device to access your notebook. The first time two Bluetooth™ devices communicate, a common Passkey should be determined for both devices to be registered.
Page 63: Using Wireless Lan (Wlan)
The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
Page 64 Using your notebook Communicating without an Access Point (ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or Access Point. Each device communicates directly with other devices in the network.
Page 65 Using your notebook Select the Network Authentication (Shared mode) option button. Deselect the The key is provided for me automatically option button. Some information gets visible. Fill in the Network key*. The network key should be 5 digits long. You can choose whatever you want. Click OK.
Page 66 Using your notebook Click Advanced. The Advanced dialog box appears. Select the Computer-to-computer (ad hoc) networks only option button. Click Close. Click OK. Your computer is ready to communicate with another computer. * If you want to communicate between two or more computers, you need to configure all these computers the exact same way. This means that you need to enter the same Network name and the same Network key on all computers as on the first computer you configure.
Page 67 An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an Access Point, for example the Sony PCWA-A200 Access Point. The Access Point bridges the wireless and wired LAN and acts as a central controller for the Wireless LAN. The Access Point coordinates transmission and reception from multiple wireless devices within a specific range.
Page 68 Using your notebook Type the Network Key. The network key has the same name as the network ID, but without the first digit. For example: - ID of the network: 09316a (6 digits) - Network key: 9316a (5 digits) Click Connect. After 30 seconds, the connection is established.
Page 69 When you change the channel number on one computer, you need to change the channel number manually on all other devices intended for wireless connection. If you use a non-Sony Access Point, read the manual of the Access Point to be sure which channel to use. For more information on Wireless LAN, read the Wireless LAN Safety Regulations flyer.
Page 70: Connecting Peripheral Devices
Connecting peripheral devices Connecting peripheral devices You can add functionality to your computer by connecting or using any of these peripherals. Before you connect peripherals, turn off the computer and all peripherals. Connect the power cord only after connecting all cables. Turn on the computer only after turning on all peripherals.
Page 71: Connecting An External Display
Connecting peripheral devices Connecting an external display You can connect an external display to your notebook. For example, you can use your computer with the following devices: ❑ Computer display (monitor) ❑ Projector ✍ Turn off your computer and the peripherals, unplug the AC adapter and the power cord before connecting the external display. Connect the power cord after connecting all other cables.
Page 72 Connecting peripheral devices Connecting a computer display Use the supplied display adapter to connect your external display to the computer. When you connect an external display to the monitor connector, you can press <Fn>+<F7> to toggle the output between the Liquid Crystal Display (LCD), the external monitor or both devices. You may not be able to display the computer's LCD and the external display together, depending on the type of computer display and projector used.
Page 73 Connecting peripheral devices Connecting a projector You can use a projector as an external display, such as the Sony LCD Projector. You can connect a projector using the supplied display adapter. To connect a projector, proceed as follows: Plug the supplied display adapter (1) into the computer’s monitor connector...
Page 74: Connecting External Speakers
Connecting peripheral devices Connecting external speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers, proceed as follows: Plug the speaker cable (1) into the headphone connector (2). Plug the other end of the speaker cable into the external speaker. Turn down the volume of the speakers before you turn them on.
Page 75: Connecting An External Microphone
Connecting peripheral devices Connecting an external microphone Your VAIO notebook does not contain an internal microphone. If you need to use a sound input device, for example to chat on the Internet, you need to plug in an external microphone. To connect an external microphone, proceed as follows: Plug the microphone cable (1) into the microphone connector (2) identified by the symbol.
Page 76 Plug the USB mouse cable (1) into the USB connector (2) identified by the symbol. ✍ You can connect the optional Sony USB mouse (PCGA-UMS1 series). As the driver for this mouse is preinstalled on your computer, you can use the mouse by...
Page 77 Connecting peripheral devices Connecting a USB floppy disk drive You can connect a floppy disk drive to the USB connector on your computer. Connecting the floppy disk drive To connect the floppy disk drive, proceed as follows: Plug the floppy disk drive cable (1) into the USB connector (2) identified by the symbol.
Page 78 Connecting peripheral devices Inserting a floppy disk To insert a disk, proceed as follows: Hold the disk (1) with the label side facing up. Gently push the disk into the drive (2) until it clicks into place. Removing a floppy disk To remove a disk, proceed as follows: When you have finished using the floppy disk, wait until the LED indicator (1) turns off and then press the eject button (2) to remove the disk.
Page 79: Connecting A Usb Printer
Connecting peripheral devices Removing the floppy disk drive To remove the floppy disk drive, proceed as follows: ❑ If your computer is on, wait until the LED indicator turns off and then unplug the USB cable from the computer. If the floppy disk drive is not removed properly, your system may crash and you may lose data that you did not save before.
Page 80 Connecting peripheral devices Connecting an i.LINK™ device Your computer includes an i.LINK™ (IEEE1394) connector, which you can use to connect to an i.LINK™ device such as the supplied DVD-ROM drive (see Using the DVD-ROM i.LINK™ drive camera recorder, or another VAIO notebook in order to copy, delete or edit files. The i.LINK™...
Page 81: Connecting A Digital Video Camera Recorder
On Sony digital video cameras, connectors labeled DV Out, DV In/Out or i.LINK™ are i.LINK™-compatible. The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick™...
Page 82: Connecting Two Vaio Notebooks
Connecting peripheral devices Connecting two VAIO notebooks You can copy, edit or delete files on another VAIO computer to your computer with an optional i.LINK™ ® cable. If the second computer has the Windows XP operating system, you just need the i.LINK™ cable. If ®...
Page 83: Connecting To A Network (Lan)
Connecting peripheral devices Connecting to a network (LAN) You can connect your notebook to 10BASE-T/100BASE-TX-type networks via an Ethernet network cable. For the detailed settings and devices needed to connect to the network, consult your Network Administrator. To connect your notebook to a LAN, proceed as follows: Connect the network cable (1) to the Ethernet network connector (2) on the notebook.
Page 84: Getting Help
Getting help Getting help This section describes how to get help and support from Sony, as well as troubleshooting tips for your computer. Sony support options Sony provides several support options for your computer. Printed documentation supplied with your notebook ❑...
Page 85 ❑ Glossary refers to terms used in this manual. Refer to your Software Guide for information on the bundled software and the Sony applications. ❑ About the Software is a short description of the features of the software pre-installed on your system.
Page 86: Other Sources Of Information
Consult the Online Help files of the software you are using for detailed information on features and troubleshooting. Refer to the Microsoft Quick Start manual for more information on Windows Go to http://www.club-vaio.sony-europe.com software. Other sources of information ❑ The online help files that accompany your pre-installed software contain instructions on using the software.
Page 87: Troubleshooting
Getting help Troubleshooting This section describes how to solve common problems you might encounter when using your notebook. Many problems have simple solutions. Please try these suggestions before contacting VAIO-Link. ❑ About the computer and software ❑ About Bluetooth™ ❑ About Wireless LAN ❑...
Page 88 If the floppy disk drive is empty, proceed as follows to initialize the BIOS: Turn off the computer. Remove any peripheral devices connected to the computer. Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears. Set the date (month/day/year).
Page 89 Getting help Press the arrow keys to select Exit (save changes) and then press <Enter>. The Save configuration changes and exit now? message appears. Make sure that Yes is selected and then press <Enter>. My computer does not shut down It is recommended that you shut down your computer using the Turn Off command on the Windows menu.
Page 90: About Bluetooth
❑ Check that the USB mouse is plugged into the USB connector. ❑ If you are using an optional Sony USB mouse, check that the appropriate driver and mouseware are properly installed. About Bluetooth™ I cannot use the Bluetooth™ function ❑...
Page 91 Getting help ❑ You may not be able to use the Bluetooth™ function, if you choose Ultimate Battery Life in PowerPanel. Select another mode. See the PowerPanel online help for more details. I cannot find the Bluetooth™ device with which I want to communicate ❑...
Page 92 Getting help I cannot stop the Bluetooth™ function ❑ Turn off the Wireless switch and make sure that the Bluetooth™ LED turns off. ❑ If the above method does not work, slide the power switch and hold it for at least four seconds. This turns off the power.
Page 93: About Wireless Lan
Getting help About Wireless LAN I cannot use the Wireless LAN function ❑ Check if the Wireless switch on the left side of the machine is turned on. ❑ Check if you have selected Wireless LAN in the Switch wireless devices dialog box. The Wireless LAN Access Point and your computer cannot communicate ❑...
Page 94 Getting help The data transfer speed is slow ❑ The maximum communication speed can vary depending on the obstacles or the distance between the communication devices, the radio waves, the operating system or the software you use. Remove the obstacle or make the distance between the Access Point and your machine smaller. ❑...
Page 95: About The Display
Getting help To change the setting, proceed as follows: Click Start and then Control Panel. Double-click the Network Connections icon. Right-click the Wireless Network Connection icon and select Properties. Select the Wireless Networks tab. Deselect the Use Windows to configure my wireless network settings check box. Click OK.
Page 96: About Cds And Floppy Disks
Getting help The window I have just closed continues to appear on my LCD Press the <Windows About CDs and floppy disks My DVD-ROM drive tray does not open ❑ Make sure the computer is turned on. ❑ Press the eject button on the DVD-ROM drive. ❑...
Page 97 Getting help I cannot play a DVD-ROM ❑ If a region code warning appears when you are using the DVD player, it could be that the DVD-ROM you are trying to play is incompatible with the DVD-ROM drive on your notebook. The region code is listed on the packaging of the disc.
Page 98 Getting help The disc tray ejects even when it has been locked into place ❑ Ensure that the disc is placed with the label side facing up. ❑ The disc may be scratched. Place another disc to see if that is the reason. ❑...
Page 99: About Sound
Getting help When I remove the Memory Stick™, an error message appears Insert the Memory Stick™ in the slot again and press <Enter>. Wait until the active application finishes, then remove the Memory Stick™. If the message confirms eject of the Memory Stick™, click OK. About sound My speakers are not producing sound ❑...
Page 100: About The Modem
Getting help About the modem My internal modem does not work ❑ Check that the phone line is plugged into your computer. ❑ Check that the phone line is working. You can check the line by plugging in an ordinary phone and listening for a dial tone.
Page 101: About Peripherals
❑ Use manual import/export in DVGate motion if problems occur with third party cameras. ❑ You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with the i.LINK™ devices. I cannot print ❑...
Page 102: About Digital Video Captures And Dvgate
Getting help About digital video captures and DVgate While I am recording images to a digital video device using DVgate, my system displays the message 'Recording to DV device failed. Check the power and cable connections to the DV device and try the operation again...' ❑...
Page 103: Adding And Removing Memory
Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. Your notebook and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee by mishandling, it is recommended that: ❑...
Page 104 Precautions ❑ Disconnect the system from its power source and from any telecommunication links, networks, or modems before you open the system. Failure to do so may result in personal injury or equipment damage. ❑ Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory module only at an ESD workstation.
Page 105 Precautions Removing a memory module To remove a memory module, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Unscrew the four screws at the bottom of your computer. Slide the LCD lock lever and lift the cover.
Page 106 Precautions Gently replace the keyboard, then press it into your computer. Be careful not to detach the cable when lifting the keyboard. Close the computer cover, then tighten the screws on the bottom of the computer. Adding a memory module To add a memory module, proceed as follows: Shut down your computer and disconnect all peripheral devices.
Page 107 Precautions Slide the LCD lock lever and lift the cover. Slide the keyboard toward the LCD display, then lift it away slightly. Lift the keyboard from the LCD display side, then gently turn it over the touchpad. Be careful not to detach the cable when lifting the keyboard. Remove the existing memory module.
Page 108 Precautions Remove the new memory module from its packaging. Install the memory module. Be careful not to touch the other components on the motherboard. ❑ Slide the memory module into the slot. ❑ Snap the connectors into place when the board is correctly seated.
Page 109 Precautions Gently replace the keyboard, then press it into your computer. Be careful not to detach the cable when lifting the keyboard. Close the computer cover, then tighten the screws on the bottom of the computer.
Page 110: Other Precautions
To view the amount of memory, proceed as follows: Turn on the computer. Go to Sony Notebook Setup via the Start menu. The Sony Notebook Setup dialog box appears. In the About this Computer tab you can view the amount of system memory. If the additional memory does not appear, repeat the whole procedure and restart the notebook.
Page 111 Precautions On handling the LCD screen ❑ Do not leave the LCD facing the sun as it can damage the LCD. Be careful when using the computer near a window. ❑ Do not scratch the LCD or exert pressure on it. This could cause malfunction. ❑...
Page 112 Precautions On handling your notebook ❑ Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
Page 113 Precautions ❑ Do not use cut or damaged connection cables. ❑ Your computer cannot be connected to a coin-operated telephone, and may not work with a private branch exchange (PBX). ❑ If the computer is brought directly from a cold location to a warm one, moisture may condense inside your computer.
Page 114 Precautions On handling CDs ❑ Do not touch the surface of the disc. ❑ Do not drop or bend the disc. ❑ Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edge and its central hole, as shown: ❑...
Page 115 Precautions ❑ Charge the batteries at temperatures between 10°C to 30°C. Lower temperatures require a longer charging time. ❑ While the battery is in use or being discharged, the battery pack heats up. This is normal and is not cause for concern.
Page 116 Precautions On using headphones ❑ Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
Page 117 Glossary Glossary This section refers to terms used in this manual. These terms and definitions have been compiled to provide you with a better understanding of your VAIO computer. Term <F1> key 10BASE-T/100BASE-TX ACPI Application recovery Application recovery CD-ROM BIOS CardBus Definition The <F1>...
Page 118 Glossary Term CD-ROM CD-RW DC In Docking station Driver DVD-ROM Ethernet Definition Abbreviation for Compact Disc Read-Only Memory. A high-capacity optical disc, usually 650 MB in size, capable of being read from but not written to. Short for Compact Disc-ReWriteable. Compact Disc that can be used to write or rewrite data to it.
Page 119 The EULA can be found in the Read this first section at the beginning of the software guide or directly on the VAIO desktop. i.LINK™ is Sony’s version of the IEEE 1394 standard for high-speed digital serial interface. The standard is regarded in the audio/video and IT industries as the most suitable interface for connecting computers and digital audio/video devices (such as digital cameras etc.).
Page 120 Glossary Term MAPI maximum RAM Motherboard MPEG Operating system Partition Definition Short for Messaging Application Program Interface. A Microsoft Windows interface enabling you to send e-mail messages. It allows e-mail access and distribution among applications. MAPI-compatible applications include a Send Mail or Send in the File menu of the application.
Page 121 Glossary Term PC Card PCMCIA Pixel Port replicator Processor Product recovery CD-ROM PS/2 PSTN Definition A PCMCIA card. The term PC Card is more widely used than PCMCIA. See PCMCIA. PCMCIA (Personal Computer Memory Card International Association) is the name of the group that produced the specification for the credit card-sized plug-in boards for laptop computers.
Page 122 Glossary Term Resolution RGB signal cable SDRAM Standard RAM System recovery System recovery CD-ROM Definition Short for Random Access Memory, the memory used to run programs and store data in current use. RAM is the fastest kind of memory to read from and write to. Information stored in RAM is lost when you turn off the computer.
Page 123 You can connect up to 127 devices to a USB port. The USB standard is Hot Plug and Play. Short for Video Audio Integrated Operation. Brand name covering Sony's PC products, peripherals, accessories and software. VAIO-branded items are all designed to make the best use of Sony's Audio-Video (AV) and Information Technology (IT) skills.
