- Page 1 FOOTBALL GOAL POST #1037210 1037210 8/98...
- Page 2 FOOTBALL GOAL POST #1037210 ASSEMBLY INSTRUCTIONS 1. Place pole/ground sleeve in hole, approximately 4 feet deep by 2 feet in diameter, approximately 5 feet back from the the center of the End Line. 60" GOOSENECK 2. Assemble the Crossbar Assembly to the Gooseneck, slide the Crossbar onto the Gooseneck as far as possible and insert the 1/2"...
- Page 3 FOOTBALL GOAL POST #1037210 3. Use braces to set the height of the crossbar to 10 feet from the ground to the top of the crossbar at each end and in-line with the Goal Line. NOTE: the hole may have to be enlarged to obtain the correct alignment.
- Page 4 FOOTBALL GOAL POST #1037210 6. Once satisfied, pour concrete in hole to just below ground level. POUR CONCRETE TO JUST SLIGHTLY BELOW GROUND LEVEL If not using a Ground Sleeve GROUND SLEEVE Slide 5/8" Rod thru Hole (If Used) As shown 7.

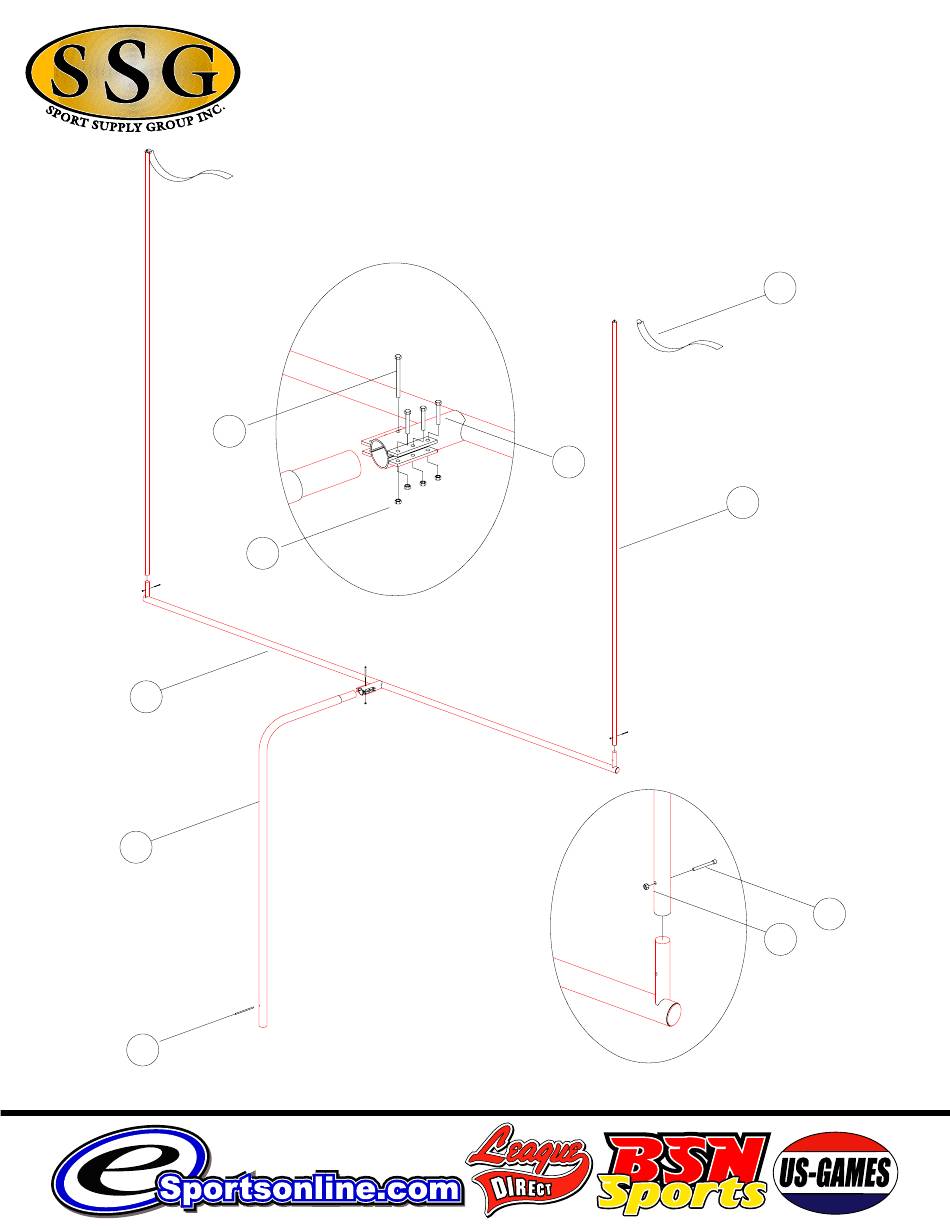

- Page 5 FOOTBALL GOAL POST #1037210 ITEM PART PART No. Gooseneck Post 2 ea Z670POSTXX Crossbar Assembly 2 ea Z670XBARXX Cap Screw 1/2" 2 1/4" 12 ea Z053500225 Locknut 1/2" 14 ea Z060500NLN Hex Screw 1/2" x 5" 2 ea Z0415005G8 Upright...
- Page 6 FOOTBALL GOAL POST #1037210 OBSERVE ALL WARNING LABELS: FOR SAFE OPERATION AND CONTINUED HIGH PERFORMANCE FROM THIS EQUIPMENT, INSPECTION AND MAINTENANCE MUST BE PERFORMED BEFORE EACH USE. Z300SAFEOP CAUTION DO NOT CLIMB ON THIS UNIT Z300CCLIMB CAUTION DO NOT HANG...
