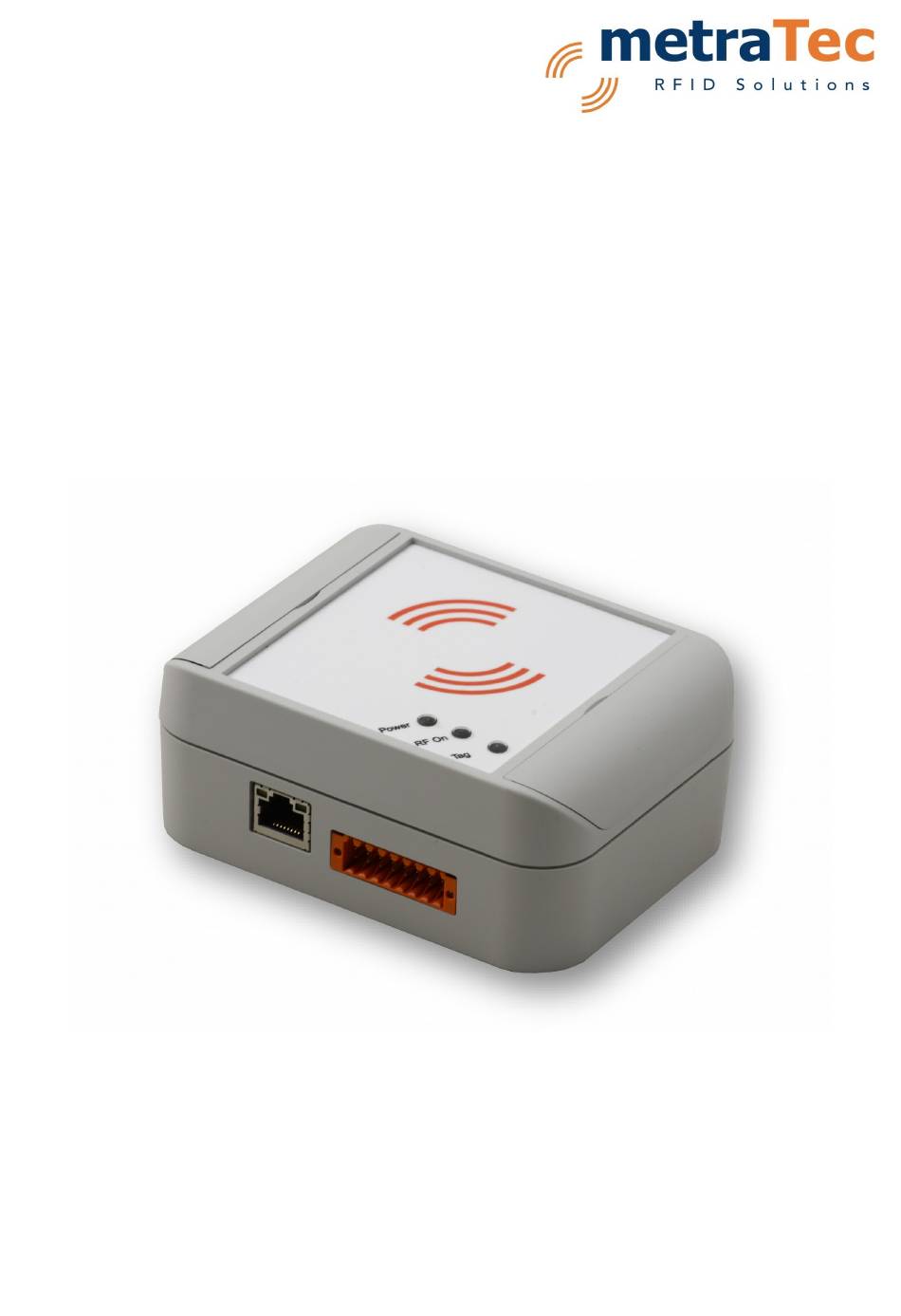

- Page 1 Technical Documentation for metraTec DMI15 IoT HF RFID Reader Date: December 2020 Version: 1.0 Technical Documentation metraTec DMI15 Page 1 of 18...
-
Page 2: Table Of Contents
2.4 Scope of Delivery......................2.5 Accessories........................3 Power Supply Electrical Specification..................8 4 Ethernet configuration......................10 5 RFID Antenna........................6 Digital Input/Outputs......................12 7 LEDs..........................8 Further Notes........................Environmental......................16 8.2 Declaration of Conformity..................16 9 Version Control.........................17 Technical Documentation metraTec DMI15 Page 2 of 18... -
Page 3: General Information / Security Advice
1.2 Security Advice The DMI15 IoT HF RFID Reader was not designed for use in dangerous environments. Using this product in applications where a failure could directly results in severe injuries or death (“high risk activities”) is not permitted. -
Page 4: Product Description
The DMI15 communicates via LAN and can be powered over Ethernet (PoE) making the integration in IoT systems real plug and play, especially when used in conjunction with the metraTec IoT Engine software. -
Page 5: Technical Specification
50 Ohm RF Output 250 mW Max. Power Consumption 5W (RF ON) Operating Temperature -40°C to +85°C Dimensions 120 x 90 x 50 mm Protection IP 40 Conformity CE, ETSI EN 300 330 Technical Documentation metraTec DMI15 Page 5 of 18... -
Page 6: Product Drawing
2.3 Product Drawing The DMI15 features 4 mounting holes on a 99 x 34 m grid. The housing may be used as drilling template using a deep hole marker. Technical Documentation metraTec DMI15 Page 6 of 18... -
Page 7: Scope Of Delivery
2.4 Scope of Delivery The DMI15 RFID Reader comes with the following parts: DMI15 RFID Reader • Documentation, Drivers and Demo Software are available via download from • metraTec's website (http://www.metratec.com Support Downloads) 2.5 Accessories The following accessories and modules are available to extend and evaluate the... -
Page 8: Power Supply Electrical Specification
PoE class 0 device by the ethernet switch. The switch will deliver up to 13W available for the DMI15 itself shared with devices connected to the 24V outputs as well as the 24V DC out of the DMI15. Exceeding the 13W overall power rating will result in shut down of the power supply by the ethernet switch. - Page 9 Operating Voltage 24 V DC Power Consumption, RF on 200 mA Power Consumption, RF off 80 mA Power Consumption, Sleep 20 mA Tab. 2: Typical Current Consumption at 24V DC Technical Documentation metraTec DMI15 Page 9 of 18...
-
Page 10: Ethernet Configuration
4 Ethernet configuration The DMI15 offers a 100 MBit Ethernet connection as communication interface via a RJ-45 jack. The DMI15 incorporates a metraTec TCP to UART Converter (TUC) for ethernet communication. The default IP setting is static 192.168.2.239. The interface configuration is available at this address using a web browser (port 80). -
Page 11: Rfid Antenna
5 RFID Antenna To send and receive data to and from passive RFID tags the DMI15 includes a HF RFID antenna (13.56 MHz, 50 Ohm) The antenna is located centered at the front of the housing. The antenna center is indicated by the top print. -
Page 12: Digital Input/Outputs
6 Digital Input/Outputs The DMI15 has 2 digital inputs and 4 digital outputs which can be read or set via the reader. The input pins are optically isolated 24 V DC inputs as is common in automation technology. Up to 10 mA are needed to set the input to "high". - Page 13 These can be used as power supply outputs to supply e.g. sensors, etc. The power of these pins is limited by the power of the power supply used or the PoE power limit. Fig. 2: Connector description of DMI15 Technical Documentation metraTec DMI15...
- Page 14 In 2 + Optically isolated input 1, positive X2.15 power output, directly connected to X2.1 X2.16 24 V DC power output, directly connected to X2.2 Tab. 3: Pin Description for digital IOs. Technical Documentation metraTec DMI15 Page 14 of 18...
-
Page 15: Leds
7 LEDs The DMI15 features 5 LEDs. The three top LEDs indicate the status of the RFID engine. Two more LEDs on the RJ45 socket show the Ethernet status. Name Number Color Function Power green Indicates that a valid power supply is... -
Page 16: Further Notes
CE sign, as required by Directive 1999/5/EC (Radio & Telecommunication Terminal Equipment Directive). The product is currently not registered for use in the US or Canada. However, metraTec is registered as a manufacturer of electronics at the FCC and IC. A certification of this product is therefore possible, if required. -
Page 17: Version Control
9 Version Control Version Change Date created 22.12.2020 Technical Documentation metraTec DMI15 Page 17 of 18... - Page 18 Copyright © 2020 metraTec GmbH Reprint or reproduction of this documentation for other than internal purposes is only allowed with written permission by metraTec GmbH. All trademarks are the property of their respective owners. All right reserved. We are constantly improving our products. Changes in function, form, features can happen without prior notice.
