NexxTech 2516513B User Manual

Vga webcam with communication headset
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2516513B
VGA Webcam
with Communication Headset
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for NexxTech 2516513B

Summary of Contents for NexxTech 2516513B

  • Page 1 2516513B VGA Webcam with Communication Headset USER MANUAL...

  • Page 2: Table Of Contents

    Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 System Requirements .

  • Page 3: Introduction

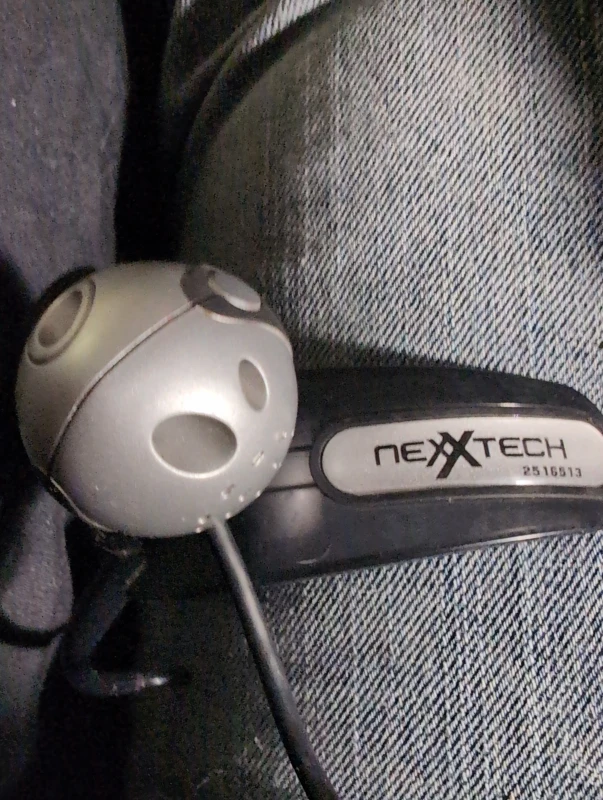

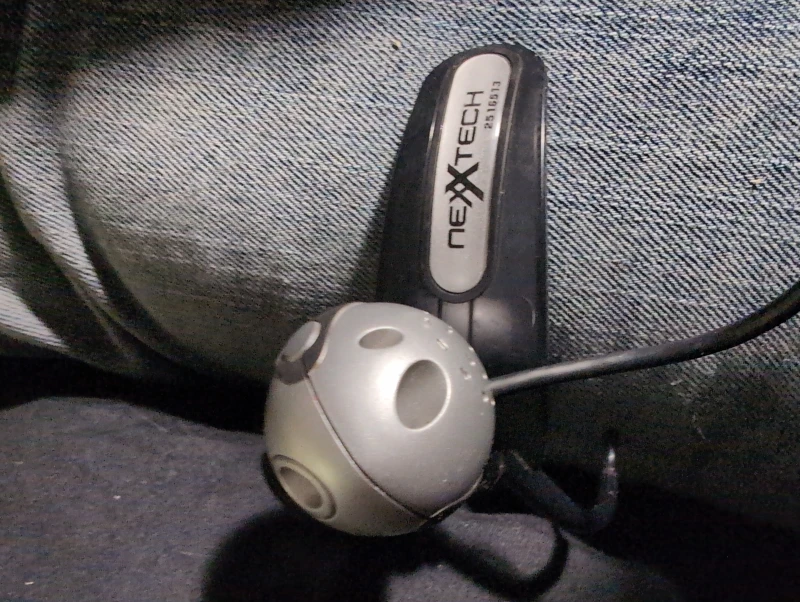

    Package Contents PC Camera CD-Disc Headset Manual PC Camera Snap Shot Introduction Adjustable Lens Tri-leg Stand Setup PC Camera Manually adjust the Provide the option of focus to view the a Webcam for your best image quality. desktop, notebook or LCD monitor by using the adjustable stand.
  • Page 4 Driver Installation 1 . Turn on the computer and insert the CD installation disc into your CD-ROM drive. Select and click “Driver “. 2 . Click “OK” to continue . 3 . Click “Finish” to complete the installation .   4 .

  • Page 5: Software Installation

      Software Installation ArcSoft WebCam Companion 3.0 1. Turn on the computer and insert the CD installation disc into your CD-ROM drive. Select and click “ArcSoft WebCam   Companion 3 .0” . 2 . Choose Setup Language . 3 . Click “Next” .  ...

  • Page 6: Snapshot By Arcsoft Webcam Companion 3 .0

      6 . Click “Next” .   7 . Click “Finish” .   Snapshot by ArcSoft WebCam Companion 3.0 1 . Click on the “WebCam Companion 3 .0” icon on the desktop . 2 . Click “Capture” .     3 .
  • Page 7 4 . Click “Capture” for capture image and the picture is saved . Click “Record Video” to start recording . Click it again to stop .     5 . The captured picture and video file will be saved in : “My Documents \ WebCam Media”.
  • Page 8 Software Installation   ArcSoft Magic-i 1 . Turn on the computer and insert the CD installation disc into your CD-ROM drive. Select and click “ArcSoft Magic-i” . 2 . Choose Setup Language . 3 . Click “Next” . 4 . Click “Yes” .
  • Page 9   5 . Click “Next” .   6 . Click “Next” .   7 . Click “Finish” . Refer to the software user guide details, please select the manual icon upon CD auto-run screen pop up.

  • Page 10: Headset General Specifications

    Headset General Specifications Speaker Section Speaker 15 mm Dynamic Type Impedance 32 ohms @ 15% Sensitivity 112 ± 3 dB Frequency Response 100 ~ 10 kHz Max . Power Input 15 mW (0 .7V) Connector 3 .5 mm stereo plug Microphone Section Microphone Condenser Type...

  • Page 11: Camera Specifications

    Camera Specifications Image Sensor: Real 1/6” colour progressive VGA CMOS (640x480 pixels) Lens Specifications: Manual focus lens F/NO=2 .4 / f=3 .8 mm Frame Rate: 800x600 pixels @ 15 fps 640x480 pixels @ 30 fps 320x240 pixels @ 30 fps Focus Range: 1 cm to infinity Video Capture: 800x600 / 640x480 / 352x288 / 320x240/176x144 / 160x120 pixels...

  • Page 12: Warranty

    THE SOURCE WARRANTY The Source warrants that this product will be free from defects in materials and workmanship for a period of ninety (90) days from the date of purchase. Within this period, simply take the product and your proof of purchase to any The Source store or dealer and the product will be repaired without charge for parts and labour.
