ARA P Series User Manual

Co2 incubator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

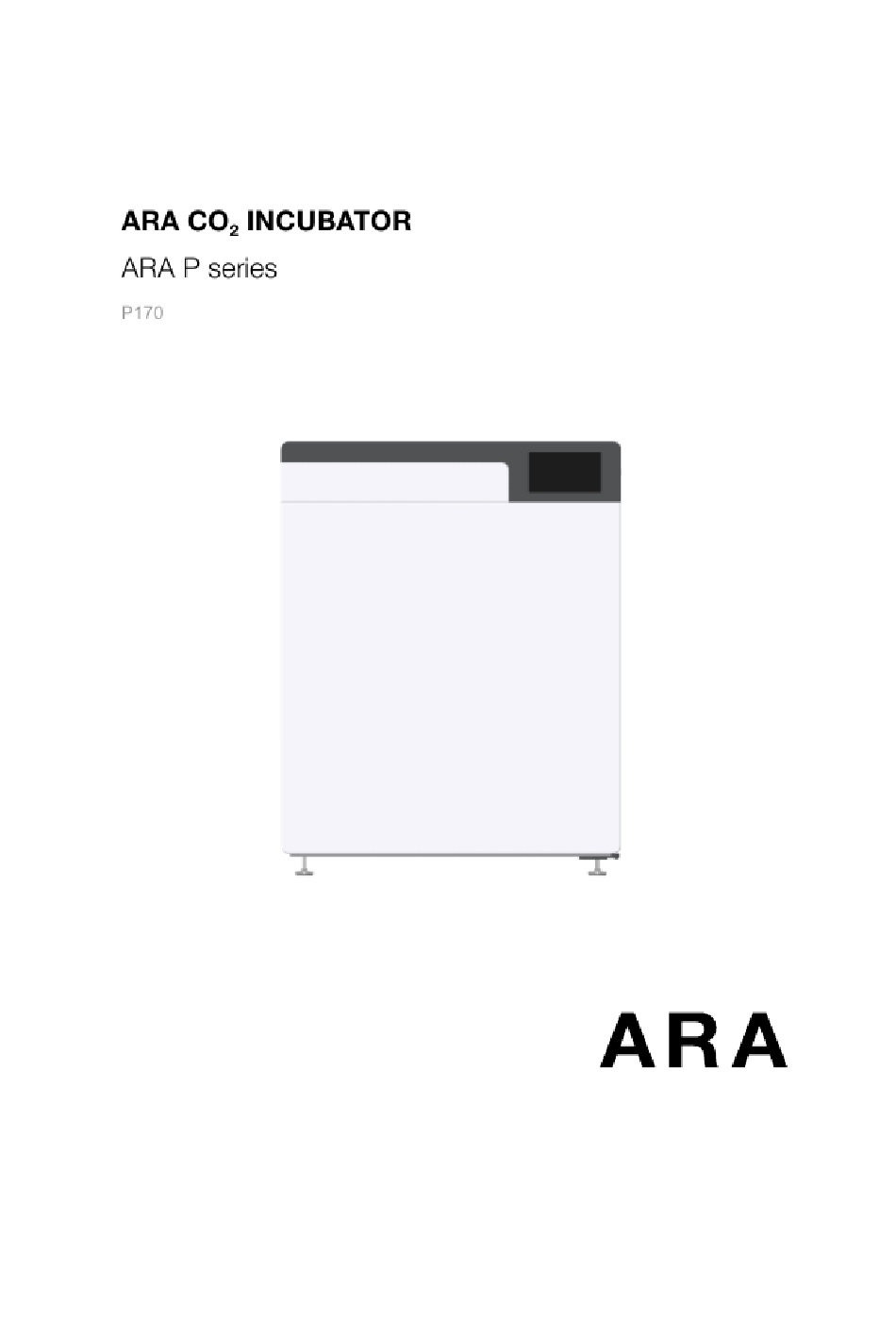

USER MANUAL
CO
INCUBATOR
2
DOC. No: AP7OMPDEN2001
im-ara.com
A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com
UM-H_ARA P170(E)(Rev.1), 20210819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ARA P Series

  • Page 1 USER MANUAL INCUBATOR DOC. No: AP7OMPDEN2001 im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com UM-H_ARA P170(E)(Rev.1), 20210819...

  • Page 2: Table Of Contents

    4-1. Display 4-2. Status Indicators 4-3. Temperature Configuration 4-4. CO2 Concentration Configuration 4-5. History 4-6. Time Configuration 4-7. Sterilization 5. Maintenance 5-1. Interior 5-2. Exterior 6. Troubleshooting 6-1. Before Contacting Us 6-2. Error Message im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 3: Safety Consideration

    18. Do not use multiple instruments simultaneously when plugged to multi-outlets. 19. Do not touch instrument or power plug with wet hands. 20. Do not apply excessive force to the instrument. 21. Contact Hanil regarding instrument repair. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 4: Pictograph

    - The instrument makes unusual noise or odor - The power cable is worn out or damaged. - Spilled liquid on the instrument - Water entered the instrument - Parts of the instrument is damaged im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 5: Product Description

    USER MANUAL INCUBATOR 2. Product Description 2-1. Exterior Description im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 6: Product Components

    Shelf Channels (Left, Right) Shelves CO2 Supply Pipe 2-3. Technical Specification Type Content Model Name ARA P170 Instrument Dimension (WxDxH) 726 x 651 x 935mm Chamber Dimension (WxDxH) 560 x 470 x 650 mm Shelf Dimension (WxDxH) 536 x 461 x 25 mm...
  • Page 7 Within 10 minutes (recovery to 5% after opening the inner door for 30 seconds) Humidity Range in Chamber Usable Ambient Temperature 14~32°C Usable Relative Humidity ~80% Maximum Shelf Capacity 15 kg Appropriate Shelf Capacity Ratio ~50% im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 8: Product Installation

    Using up to 50% of the shelf surface is recommended. Pre-run the instrument for 1~2 hours before cell culture. Do not pull the power plug during use. Secure the accessories after checking interior condition, shelf and humidity pan location. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 9: Preliminary Cleaning

    Do not use corrosive agents such as sodium chlorate or halogen solutions. Do not use cleaning tools with rough surface to avoid scratching the instrument surface. 3-4. Installing the Shelf Channels Follow the instruction below when reinstalling shelves support due to cleaning. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 10: Installing The Humidity Pan

    Only use sterilized distilled water. Do not use ionize water to prevent corroding the humidity pan 3-6. Installing the Shelves 1. Place the latch attached to the bottom of the shelf below the shelf Channels and push the shelves into the chamber. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 11: Connecting The Co2 Gas Supply

    2. Click the [I] from the [I/O] of the power switch, located at top right of the instrument, to turn on. [Turning Off] 1. Press the [I] from the power switch to turn off. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 12: Connecting External Device Port

    Use the external device port to install external devices such as additional sensors or connect cables to and from the chamber. Please enclose port with silicon cap after connection. Opening the port can cause micro- condensation around the port. Outer device connection im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 13: Usage Instruction

    Temperature Indicator: Displays Set and Current Temperature. Touch “Temp.” to set temperature. CO2 Indicator: Displays Set and Current CO2 Concentration. Touch “CO2 Lv” to set CO2 Concentration. Alarm Indicator: Turn alarm sound ON/OFF Menu: Displays Operation Log, Date/Time Setting and Sterilization function. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 14: Status Indicators

    Shows change in CO2 concentration over time in a blue graph. > CO2 Concentration Display Range: 0~20% [All View – Cumulative Temperature/Concentration] Press “Graph Indicator” and “All View” to view change in temperature and CO2 concentration over 240-hour period. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 15: Temperature Configuration

    240 hours into an USB. [Clear – Delete Data] Press “Graph Indicator” and “Clear” to delete and reset the collected data in the past 240 hours. 4-3. Temperature Configuration 1. Press “Temp.” form the main screen. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 16: Co2 Concentration Configuration

    2. Input the desired CO2 concentration and press “Enter”. Set concentration has range of 0~20%. When input concentration exceeds the maximum set value, 20%, concentration is set to 20%. 4-5. History 1. Press “Menu” from the main screen. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 17: Time Configuration

    3. The following screen displays the operation log in a chronological order. Press “Export” to save log into USB > Log saves up to 40 lines regardless of time. 4-6. Time Configuration 1. Press “Menu” form the main screen. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 18: Sterilization

    3. Configure each part of time under Year/Month/Day/Hour/Min/Sec by dragging scroll bars up and down. Press “Save” to finalize the configuration. 4-7. Sterilization 1. Press “Menu” from the main screen. 2. Select “Sterilization” im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...
  • Page 19 Pull the CO2 Sensor according to the diagram to remove. 4. Once Sterilization starts, the chamber reaches up to 120°C. After reaching 120°C, a message saying “Maintaining chamber at 120°C” appears and remains for 4 hours. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...
  • Page 20 5. After 4 hours of process, a message saying “Cooling down to set temp” appears and returns to set temperature before Sterilization. After returning to set temperature, “Complete the sterilization” message appears and Sterilization will be over. Press “Home” to return to main screen. *CO2 Sensor Insertion im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 21: Maintenance

    5-2. Exterior 1. Beware of scratches during cleaning or moving. 2. When cleaning the product surface, use a soft clothed applied with neutral detergent to wipe and use a dry cloth to remove moisture. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 22: Troubleshooting

    Check that the CO2 tube is connected properly, without punctures. If there is an issue with the HEPA filter attached to the CO2 tube, contact Hanil Technical Support Team as it can block CO2 flow. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...

  • Page 23: Error Message

    Contact for Technical Support Team is at the bottom of the manual. Error Message Symptom Heating wire reached abnormal temperature (more than 50°C). ES1~ES7 Temperature sensor connection or function is defective. im-ara.com A/S Inquiry : 02.3452-8966 / techsupport@ihanil.com...
