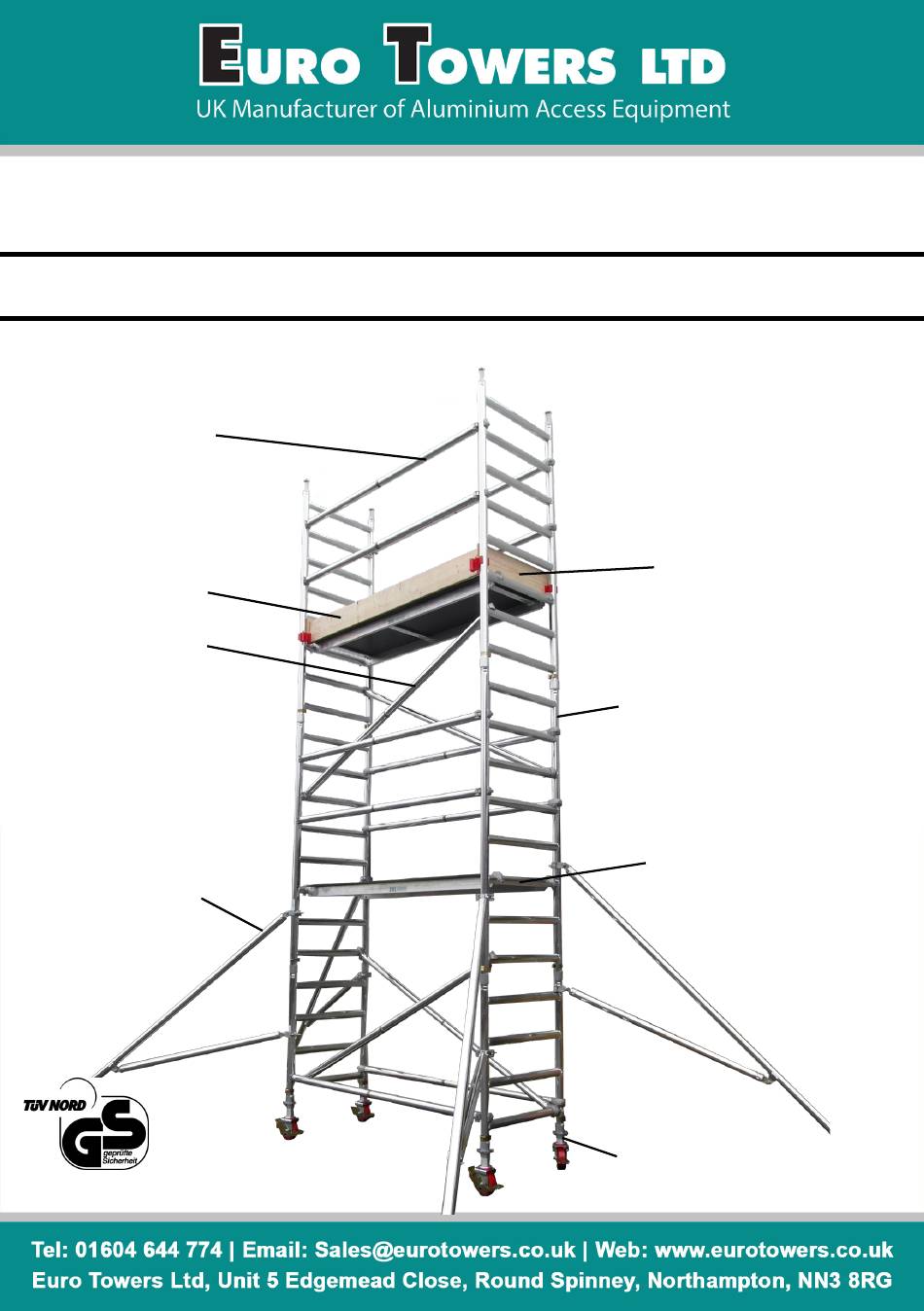

3T - THROUGH THE TRAPDOOR METHOD
TUV CERTIFIED QUALITY SYSTEM
TO ISO 9001:2015
TOWER MAX SAFE WORKING LOAD 750K | PLATFORM MAX SAFE WORKING LOAD 250KG
Horizontal Brace
2M Black / Green / Red
2.5M Black / Green / Yellow
3M Black / Green / Blue
Side Toe-Board
Diagonal Brace
2M White / Green / Red
2.5M White / Green / Yellow
3M White / Green / Blue
Stabiliser
MANUFACTURED BY EURO TOWERS LTD

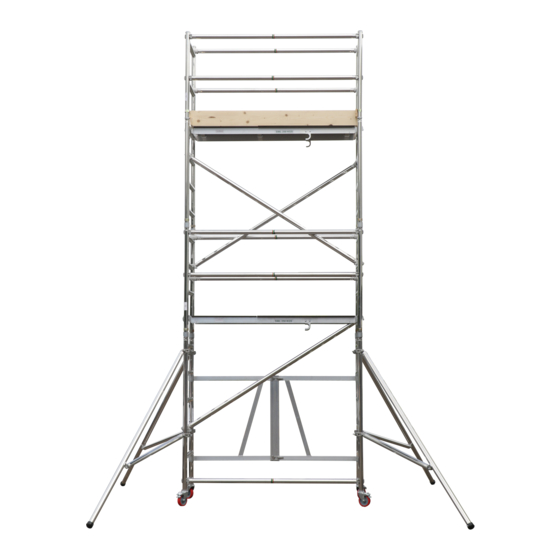

232 SINGLE WIDTH TOWER
GS PRODUCT APPROVAL TO
BS.EN.1004 3 8/12 XXXD
INSTRUCTIONS FOR USE TO BE
FOLLOWED CAREFULLY
End Toe-Board
Multi-Rung Ladder Frame
6, 8 or 10 Rung
Trapdoor Platform
Castor
Adjustable Leg
AUGUST 21
AUGUST 21
Advertisement
Summary of Contents for Euro Towers 750K
- Page 1 GS PRODUCT APPROVAL TO TO ISO 9001:2015 BS.EN.1004 3 8/12 XXXD FOLLOWED CAREFULLY TOWER MAX SAFE WORKING LOAD 750K | PLATFORM MAX SAFE WORKING LOAD 250KG Horizontal Brace 2M Black / Green / Red 2.5M Black / Green / Yellow...
-
Page 2: General Safety Rules
3. This product shall only be used according to the instruction manual. 4. Only original Euro Towers components specified in this manual shall be used. 5. It is recommended that this user manual be used in conjunction with a suitable risk assessment and method statement relative to the project. - Page 3 55. Towers are not designed to be used as a means of edge protection 56. All towers should be inspected before use. Further information on inspection and maintenance can be found on Euro Towers inspection posters. For further safety information or downloading instructions call Euro Towers or visit our website. www.eurotowers.co.uk...
- Page 4 3T 232 MULTI RUNG SCAFFOLD TOWER SINGLE WIDTH KIT LIST Available in three lengths: 2m, 2.5m or 3m MOVING A TOWER Remove people and materials from the tower, and lower the tower to 4m if all 4 stabilisers are in place. If not then reduce tower height to 2m. Adjust and raise the stabilizers 25mm from the ground, ensure the couplers are tight, and push from at or near the base by manu- al effort only, never use mechanical means.
- Page 5 PPE REQUIRED: Hard Hat, Safety Gloves, Safety Boots/Shoes, Hi-Viz Vest/Jacket TOOLS REQUIRED: Spirit Level 1.41 4.66m 1.88m 7.91m 5.13m...
- Page 6 SINGLE WIDTH 232 FRAME INSTRUCTION MANUAL FOR ERECTION, ALTERING & DISMANTLING The tower requires a minimum of 2 people for assembly Do not attempt to assemble a tower by yourself Bracing Positions On rungs with two braces and a platform you will need to have one brace sitting on the inside of the platform hook and one sitting on the outside of the platform hook.
- Page 7 10 Rung Base Set Up For Platform Heights: 1.41m, 3.27m, 5.13m 6.98m Fit platform on third rung down. This base build does not require repositioning of the platform. Figure 4 8/8 Rung Base Set Up For Platform Heights: 2.81m, 4.66m, 6.52m To achieve platform heights 2.81m, 4.66m and 6.52m you will need to fit a temporary platform to the 3rd rung down.
- Page 8 1. Insert castor wheels into adjustable legs 2. Insert 2 adjsutable legs and castor wheels into each base frame UNLOCKED LOCKED 3. Lock Brakes and allow 3” thread from 4. Fit 2 horizontal braces to the verticle bottom of castor for levelling member of the frames above first rung.
- Page 9 7. After adding frames always remember to 8. Fit 2 more diagonal braces to continue engage interlock clips in a regular pattern on the 3rd rung leaving room for your horizontal braces to fit on the upright. 9. Fit 4 horizontal braces directly above 10.
- Page 10 13. From a seated position using the 14. Continue erecting the tower fitting the through the trapdoor (3T) method. Fit 4 frames and diagonal braces as illustrated horizontal braces, hooks facing outwards using all components. Platforms inserted to the frame upright. every 2m complete with handrails.
- Page 11 Please the maximum angle on an access tower if the maximum angle 2.25m except the contact Euro Towers allowed is defined by the wind speed allowed is defined by distance to the first for information on the...
