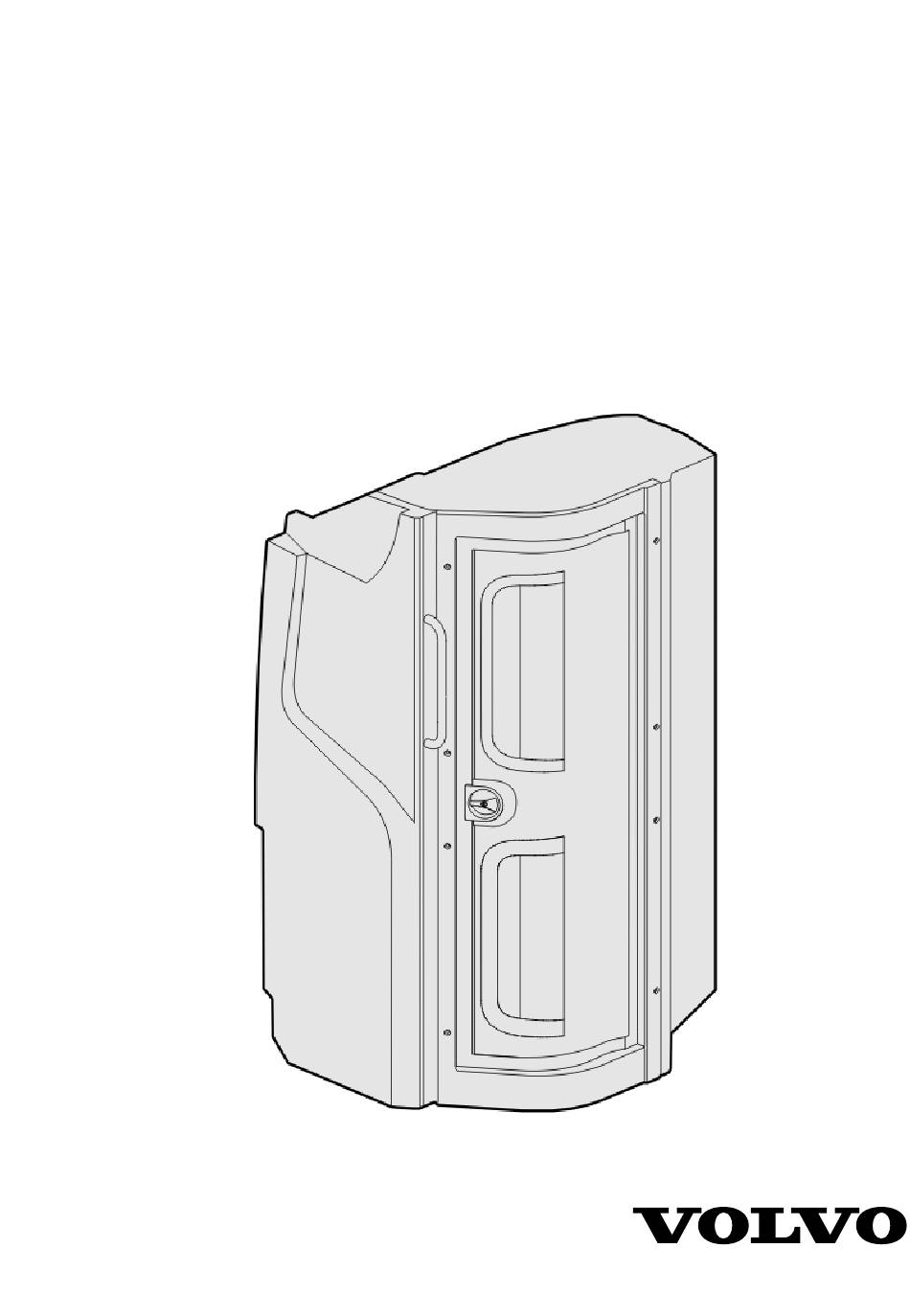

- Page 1 Driver's Handbook Toilet 9700 USCAN...
- Page 2 However, key components are represented as accurately as possible.. The National Highway Traffic Safety Administration (NHTSA) and Volvo Trucks North America should be informed immediately if you believe that the vehicle has a defect that could cause a crash, injury or death.
-
Page 3: Table Of Contents
Contents Introduction ..........................1 Toilet general view......................... 1 Decals in the cubicle ......................1 Toilet operation ........................2 Activation of the cubicle......................2 Flushing of the toilet ......................2 Filling and draining of the tanks .................... 3 Signals of toilet occupied/vacant ................... 4 Interior light ........................... - Page 5 Safety Information IMPORTANT: Before driving this vehicle, DANGER be certain that you have read and that you fully understand each and every step Danger indicates an unsafe practice that of the driving and handling information could result in serious personal injury or in this manual.
-
Page 7: Introduction
Introduction Toilet general view 1 Spot lamp 2 Mirror 3 Gel dispenser 4 Alarm button 5 Ambient light 6 Flash button 7 Toilet seat 8 Toilet bowl. W0119191 Decals in the cubicle 1 Do not use standing up position; do not throw strange objects in the toilet bowl 2 No smoking 3 Door lock... -
Page 8: Toilet Operation
Toilet operation Activation of the cubicle To activate the cubicle, turn on the toilet switch on the dashboard. CAUTION In order to protect the electrical system, ensure that the toilet switch is OFF when starting or jump starting the vehicle. T3018183 Flushing of the toilet Pushing the flush button flushes the toilet. -
Page 9: Filling And Draining Of The Tanks
Toilet operation 3 Filling and draining of the tanks To fill the water tank, use the hose connector located in the septic tank compartment. W0120407 You will notice that the water tank is full when the vent pipe starts to leak. Note: Pay attention to the leaking of the vent pipe in order to avoid waste of water. -
Page 10: Signals Of Toilet Occupied/Vacant
Toilet operation Signals of toilet occupied/vacant Signals outside the toilet The indicator lamp outside the toilet indicates whether the toilet is occupied (red) or vacant (green). T0015272 Signals in the dashboard There is also an occupied signal in the dashboard. When the toilet is vacant, there is no signal. -
Page 11: Interior Light
Toilet operation 5 Interior light The ambient light and the spot lamp will turn on when the cubicle is occupied and turn off when it is vacated. Extractor fan The extractor fan runs at half speed when the cubicle is vacant and switches to full speed when it is occupied. -
Page 12: Cleaning And Hygiene
Cleaning and hygiene Cubicle and toilet bowl To clean the cubicle, use a mild detergent. CAUTION For the toilet bowl, use a mild anti-bacterial detergent and a soft brush. Do not use abrasives of any kind to clean the cubicle or the toilet bowl, since they will damage the surfaces. -
Page 13: Maintenance 7
Maintenance 7 Daily and weekly routine Daily routine Weekly routine Prior to the vehicle entering service, Check the operation and/or appearance of the septic tank should be charged with the following: an additive to sanitize it. To apply the • additive: Extractor fan •... -
Page 14: Winterization
Maintenance Winterization If the vehicle is to be parked in zero or CAUTION sub-zero temperatures, it is imperative that the tanks are completely drained. Do not use ethylene glycol instead of During winter months (temperatures below propylene glycol. Ethylene glycol can 0°C or 32 °F), you should place non-toxic damage some rubber components. - Page 16 Last page Volvo Bus Corporation Göteborg, Sweden 89292166 English 01.2017...
